2) Attach the four pieces of 12 mm x 12 mm double-sided tape to the document scanner

bottom cover ASSY, as shown in the illustration below for the positions.

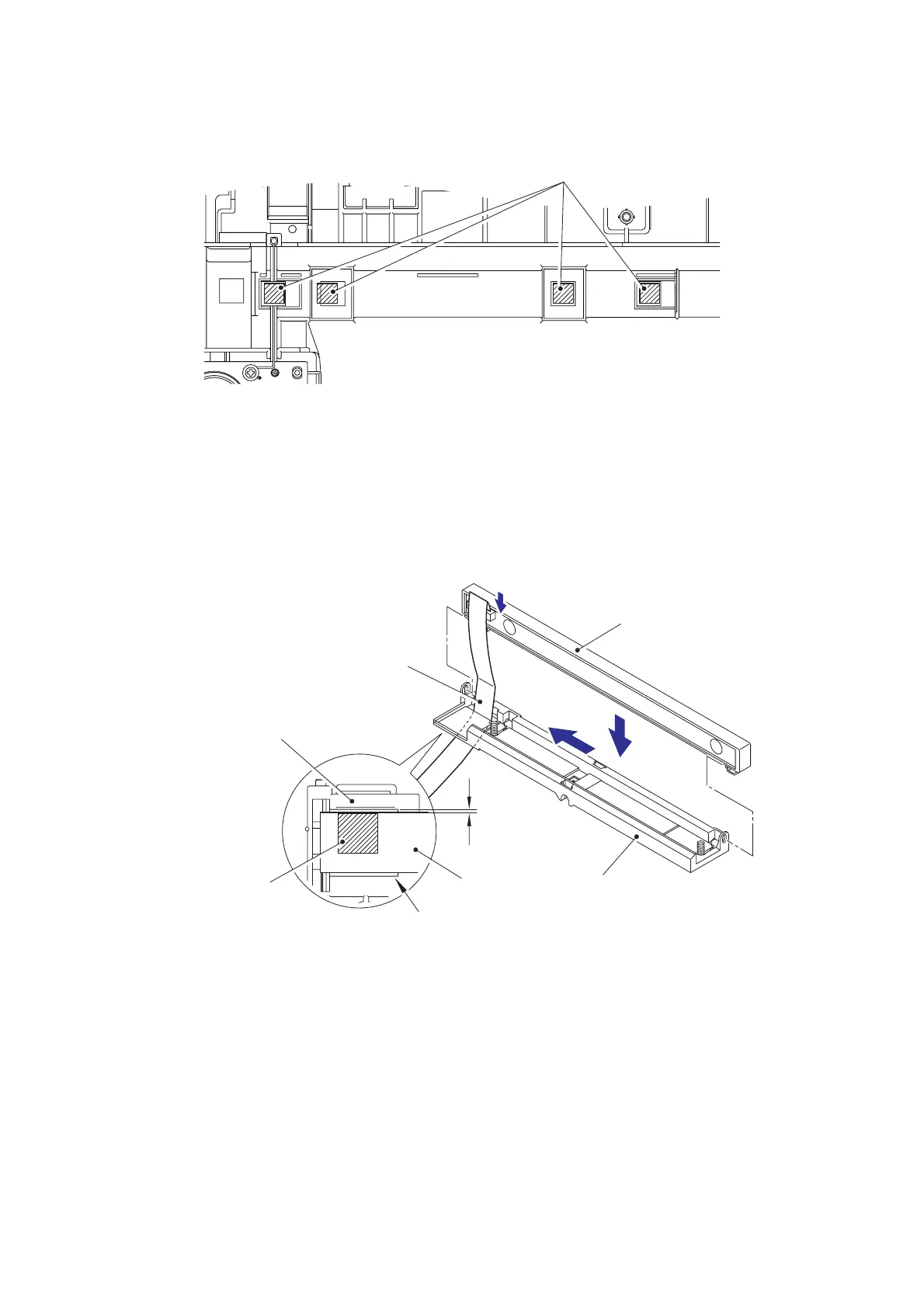

Fig. 3-89

3) Attach the 12 mm x 12 mm double-sided tape to the CIS carriage, as shown in the

illustration below for the position.

4) Insert the first side CIS flat cable into the first side CIS unit.

5) Attach the first side CIS unit to the CIS carriage.

6) Peel the release liner of the double-sided tape attached to the CIS carriage, and secure the

first side CIS flat cable to the tape as shown in the illustration below.

Fig. 3-90

Double-sided tapes

Document scanner bottom cover ASSY

Double-sided tape

CIS carriage

First side CIS unit

First side CIS flat cable

First side CIS

flat cable

CIS carriage

0 to 1mm

Stepped section
