Brother DCP-8152DN User Manual

7-9
Confidential

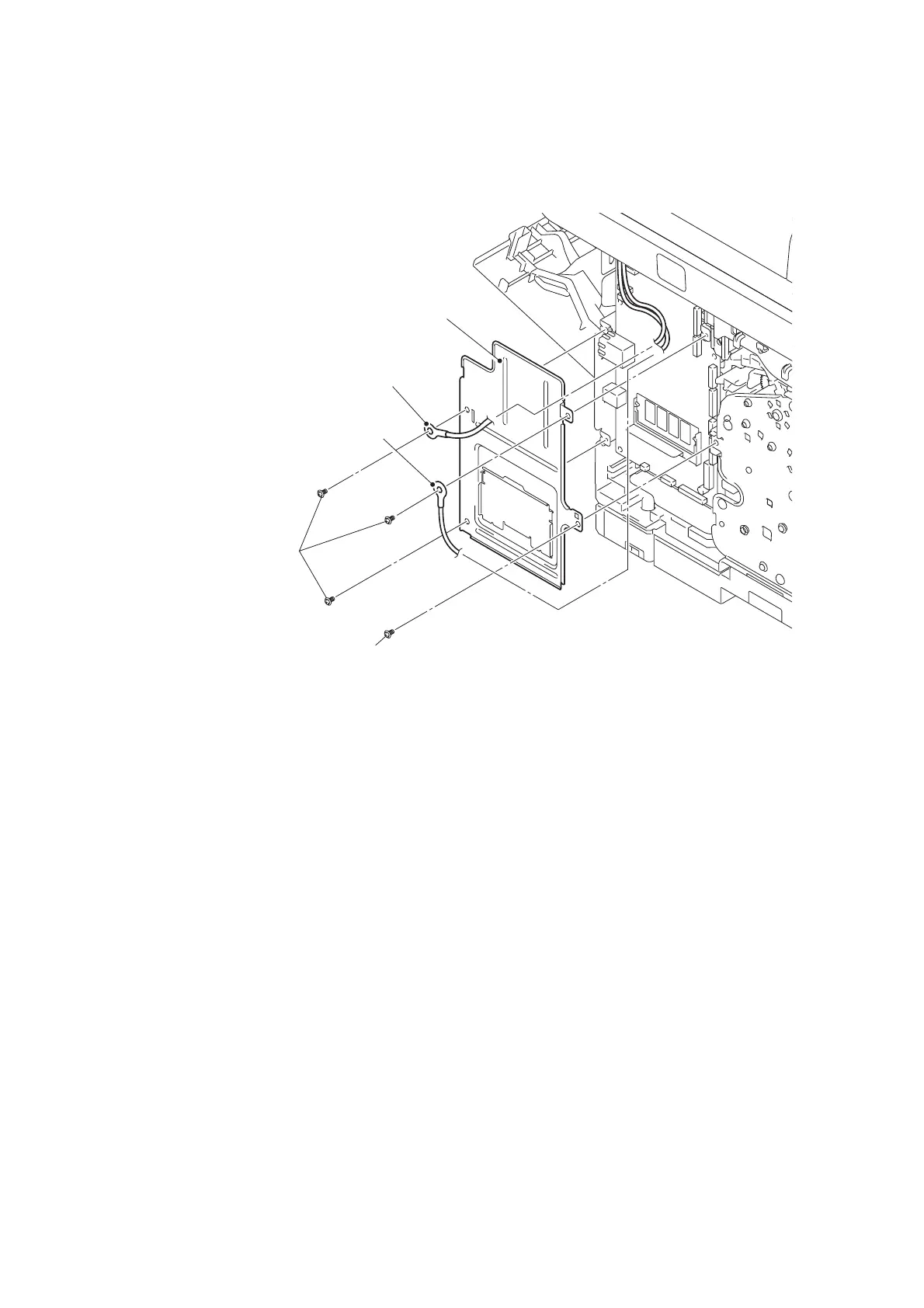

(7) Remove the four taptite cup S M3x8 SR screws to remove the ADF earth harness,
document scanner earth harness, and main shield cover plate from the machine.
The main shield cover plate is not provided for models with a tray capacity of 500 sheets.
Therefore, remove the screw securing the ADF earth harness, the screw securing the
document scanner earth harness, and screw A.
Fig. 7-13
Harness routing: Refer to “1.Main PCB ASSY”.
Taptite cup S M3x8 SR
Taptite cup S M3x8 SR “A”
Main shield cover plate
ADF earth harness
Document scanner earth harness

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
