Brother DCP-8152DN User Manual

7-10
Confidential
(8) Disconnect the second side CIS flat cable (duplex scanning models only), first side CIS
flat cable, ADF cover/document detection sensor harness, second side document
scanning position sensor harness, ADF motor harness, document scanner motor
harness, panel PCB harness, wireless LAN harness (models with wireless LAN only),
USB host harness, speaker harness (models with speaker only), and NCU harness
(models with NCU only) from the main PCB ASSY, and release these harnesses from
the securing fixtures.

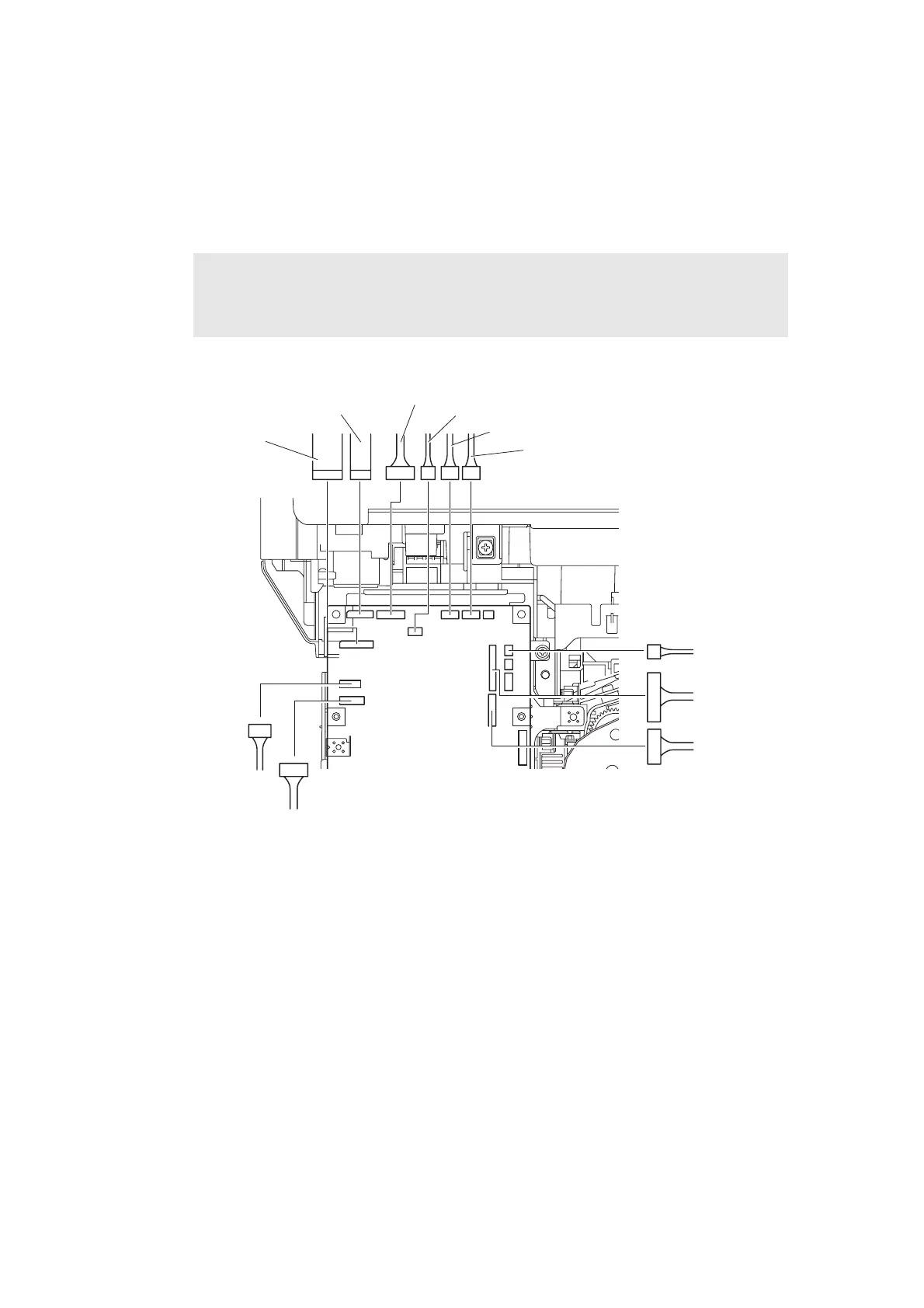

Fig. 7-14
Note:
• The second side CIS flat cable and the second side document scanning position
sensor harness are provided for duplex scanning models only.
First side CIS flat cable
Second side CIS flat cable
ADF cover/document detection sensor harness
Second side document scanning position sensor harness
ADF motor harness
Document scanner motor harness
Speaker harness
NCU harness
Panel PCB harness
USB host harness
Wireless LAN harness

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
