Brother DCP-8152DN User Manual

7-11
Confidential
(9) Pull out the wireless LAN harness and the USB host harness from the main PCB shield
calking ASSY.
(10) Remove the screw pan (S/P washer) M3.5x6 DA screw to release the NCU earth
harness, and remove the NCU earth harness from the guide on the machine.
(11) Remove the four taptite bind B M4x12 screws and the taptite cup S M3x8 SR screw.
(12) Release the six hooks, and slide the joint cover in the direction of the arrow to remove it
from the machine.

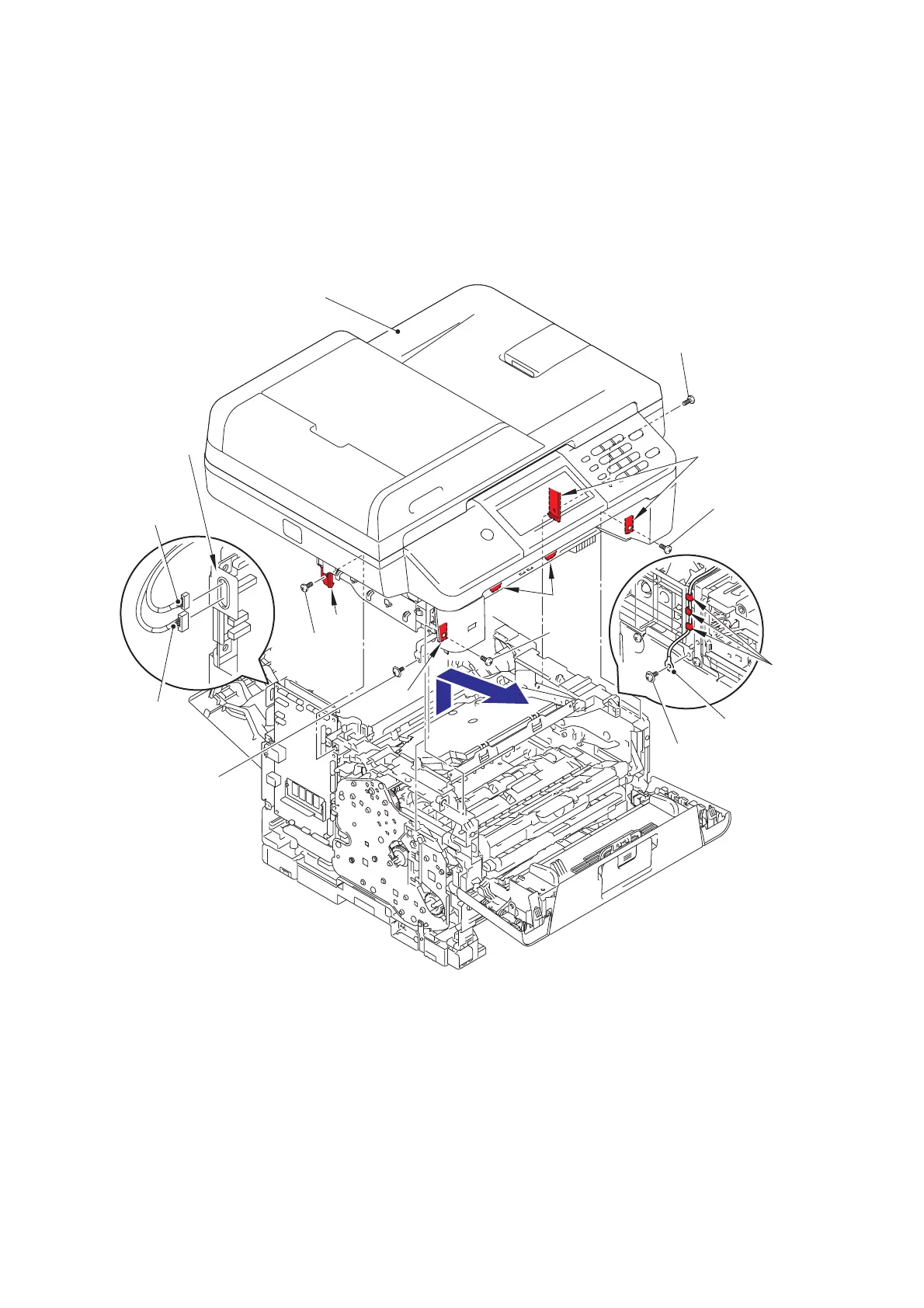

Fig. 7-15
Joint cover
Taptite bind B M4x12
Main PCB
shield calking
ASSY
USB host
harness
Wireless LAN
harness
Taptite bind B
M4x12
Hooks
Pan (S/P washer)
M3.5x6 DA
NCU earth harness
Guides
Taptite bind B
M4x12
Hooks
Taptite
bind B
M4x12
Taptite cup S M3x8 SR
Hook
Hook

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
