7-17

Confidential

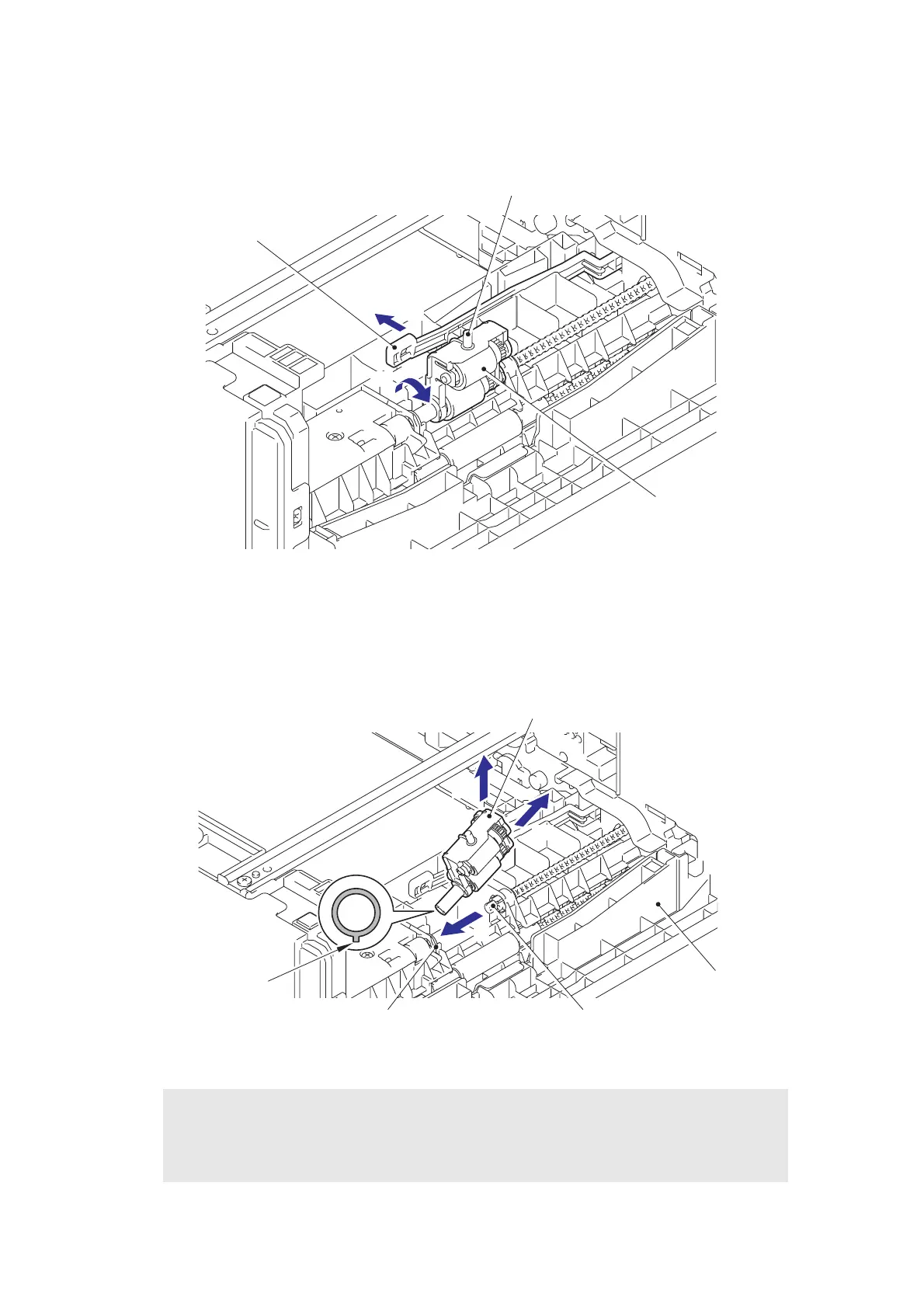

(6) Push the T2 lift arm in the direction of arrow 6a, and remove the boss on the T2 roller

holder ASSY from the T2 lift arm. Then turn the T2 roller holder ASSY in the direction of

arrow 6b.

Fig. 7-23

(7) Slide the T2 roller holder ASSY in the direction of arrow 7 to remove it from the T2

separation roller shaft.

(8) Lift the right side of the T2 roller holder ASSY in the direction of arrow 8a, and pull the T2

roller holder ASSY in the direction of arrow 8b to remove it from the LT unit.

Fig. 7-24

Assembling Note:

• When attaching the T2 roller holder ASSY, engage "A" on the shaft of the T2 roller

holder ASSY with the hole on the T2 feed frame ASSY, and insert the shaft into the

hole.

Boss

T2 lift arm

T2 roller holder ASSY

LT unit

T2 separation roller shaft

“A”

T2 feed frame ASSY
