5
Commissioning
40/108 CLS Pro 600 – Line and Contrast Sensor

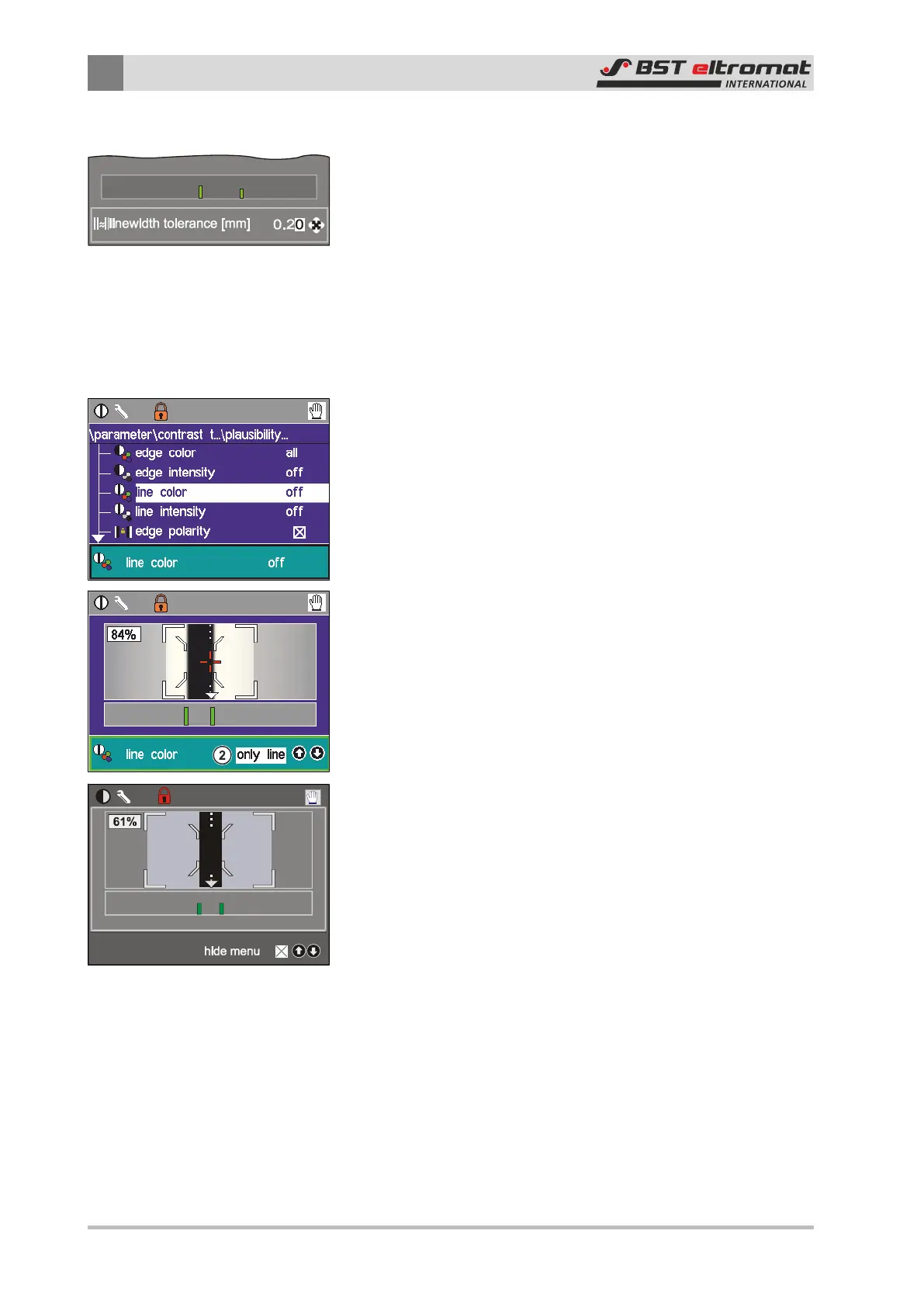

Proceed as follows to make an entry in the footer:
›› The positions that have to be changed will flash.
1. Use the up or down arrow keys to select the required num-
ber / the required letter. The numbers 0 - 9 will be displayed
first and then the alphabet from A - Z.
2. Press ENTER to confirm the selected number / selected letter.
3. If the entry consists of several places then you must use the
right arrow key to select the next place. The entry must now
be made as described above.
Option List:
An entry from a default list can be selected from an option list.
Example:
1. Select the required parameter.
2. Confirm the selection by pressing ENTER. This will open up the
settings window.
3. Use the up / down arrow keys to scroll through the entries dis-
played in the list. Press ENTER to confirm the selected entry.
The entry will be imported.
Checkbox:
The associated parameter can be activated or deactivated using
the checkbox.
Example:
1. Select the required parameter. The current status will be dis-
played in the footnote at the bottom of the setting up window.
2. Use the up / down arrow keys to activate T or deactivate £ the
function.
