Operation
6
CLS Pro 600 – Line and Contrast Sensor 63/108
Parameter Function / Meaning
guiding mode:
Use this parameter to define the control pro-
cess to be used when exiting setup.
Setting Options:
▶ to middle:
It will be controlled from the center of the
sensor measuring area.

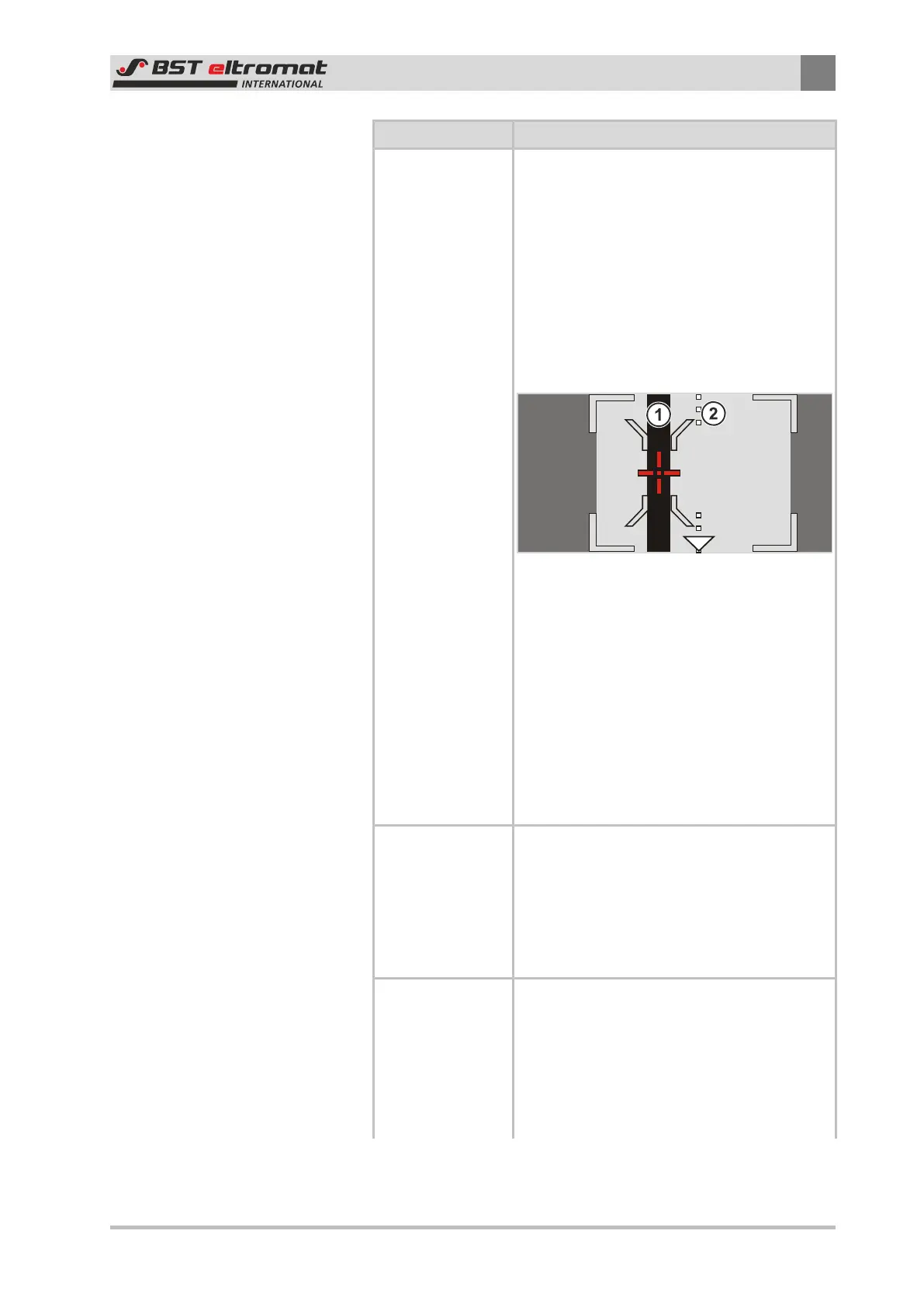

Attention: With this setting setup will be run
from this line ①. The material will be moved
into the laser position ② after switching
over to automatic mode.
▶ to setupposition:
The edge / line will be stopped in the posi-
tion entered during setup. The controller’s
set point will be reset. The material will not
be moved.
▶ keep value:
The setting will not be changed automatically
when you exit setup. The material will not be
moved.
Pre-Adjustment:
keep value
active USB:
Activates the memory function. The panel’s
configuration data can also be accessed via
the USB interface and this data can also be
saved externally if necessary. Furthermore,
this also gives you the option of loading firm-
ware updates. Press the ENTER or ESC but-
tons to shut down the connection.
white balance:
Use this parameter to run a white balance
for the sensor and to equalize the center of
the sensor’s measuring area using the projec-
ted laser line. This setting requires a three
step dialog for completion.
1. In the first step you will be asked to place
a white material under the sensor.
