REAR FENDER REMOVAL
1. Remove seat. See 2.28 SEAT.
2. Remove right side footpeg support. See 2.21 FOOT-
PEGS AND FOOTPEG SUPPORT BRACKETS.
3. See Figure 2-108. Remove rear fender mounting screws
and washers from rear fender.
4. Remove rear fender.
REAR FENDER INSTALLATION
1. Position rear fender.
2. Install rear fender mounting screws, washers and well-
nuts on rear fender.
3. Tighten rear fender mounting screws to 30-36 in-lbs (3-
4 Nm).
4. Install right side footrest support bracket. See 2.21
FOOTPEGS AND FOOTPEG SUPPORT BRACKETS.
11WARNING1WARNING
After installing seat, pull upward on front of seat to be
sure it is in locked position. While riding, a loose seat can
shift causing loss of control, which could result in death
or serious injury. (00070a)
5. Install seat. See 2.28 SEAT.

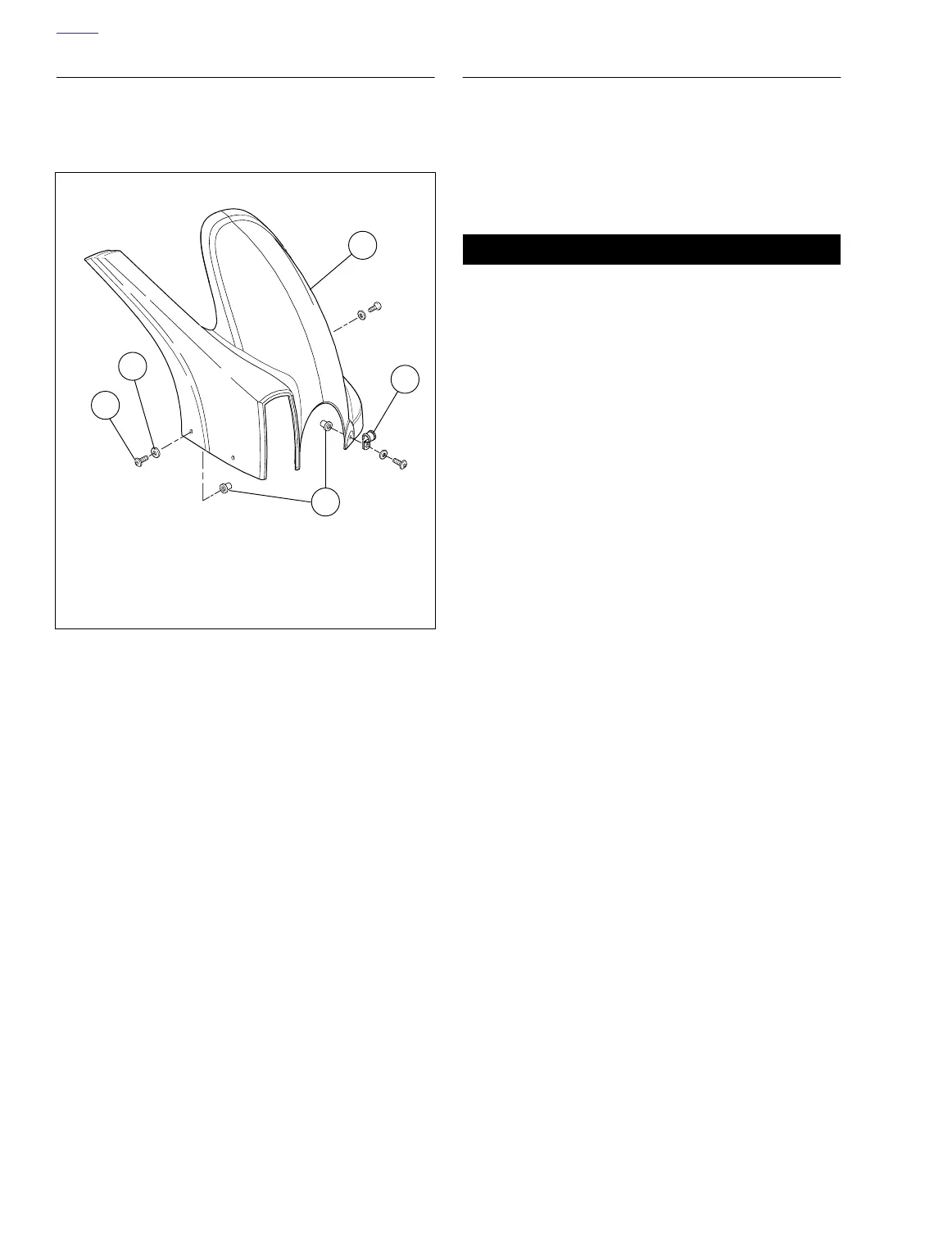

Figure 2-108. Rear Fender Assembly
a0012xSx
1. Screws, rear fender mounting (4)
2. Washers (4)
3. Well nuts (4)
4. Clamp, rear brake line
5. Fender, rear
4
1
2
5
3
