2007 Buell P3: Electrical 7-3
HOME
IGNITION SYSTEM 7.2
GENERAL
See Figure 7-1. The vehicle uses a breakerless inductive-dis-
charge ignition system. The system has both a primary and
secondary circuit. The primary circuit consists of the battery,
ignition switch, primary coil winding, computerized ignition
timer and associated wiring. The secondary circuit consists of
the secondary coil, spark plug and associated wiring.
The computerized ignition system contains five assemblies.
Ignition Module
The ignition module is mounted in the gear case cover. The
module has two functions. First, it computes the spark
advance for proper ignition timing. Second, it opens and
closes the low-voltage circuits between the battery and igni-
tion coil to produce high-voltage discharge to the spark plug.
The ignition module on the P3 Blast also contains an inte-
grated cam position sensor.
Above 6500 RPM, the ignition module will automatically
reduce power to prevent over revving.

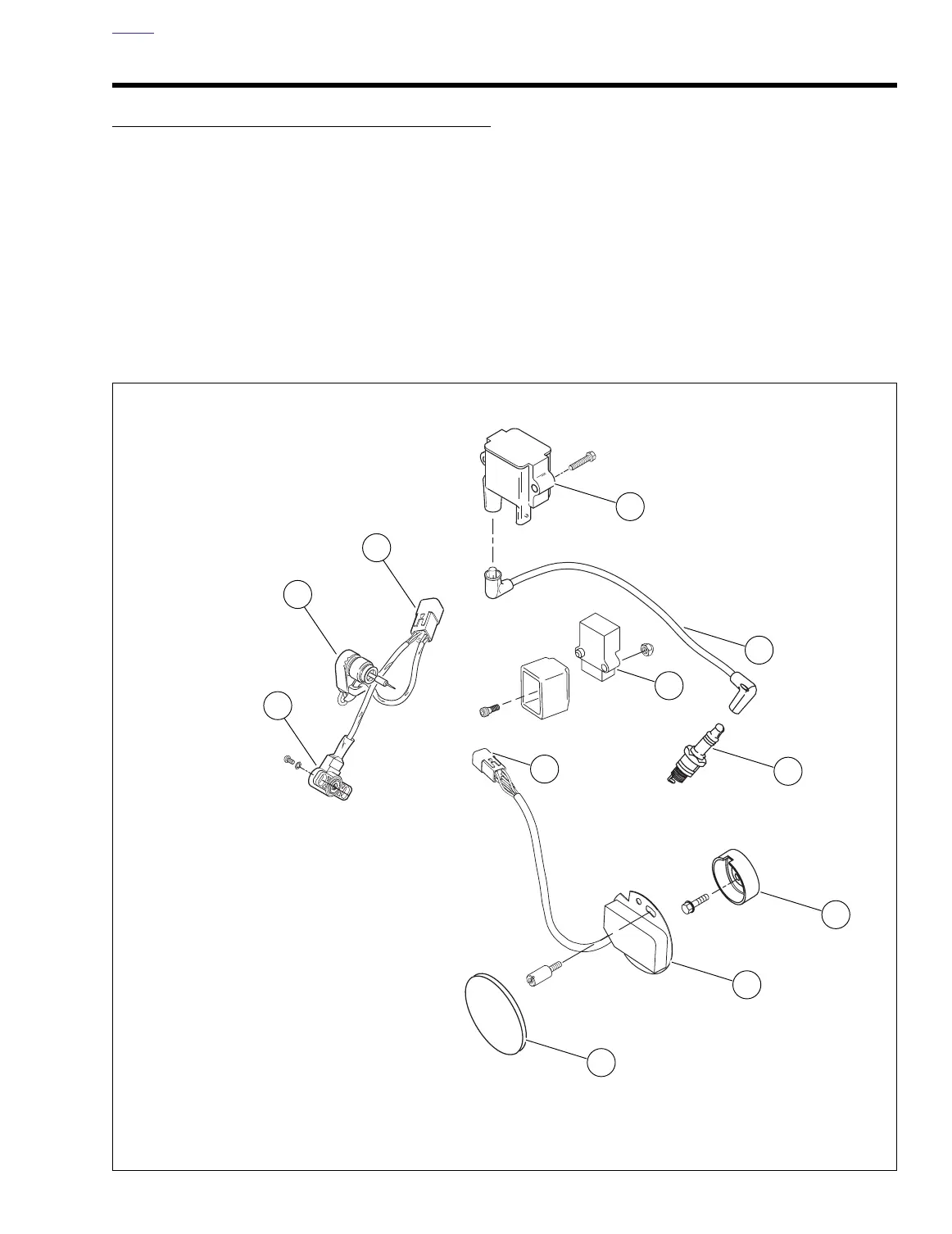

Figure 7-1. Ignition System Components
a0217a7x
1. Timer cover
2. Module plate
(ignition module/cam position sensor)
3. Rotor cup
4. Spark plug
5. Spark plug cable
6. Ignition coil
7. Connector [88]
8. Auto-enrichener
9. Throttle position sensor (TP sensor)
10. Connector [10]
11. Bank angle sensor
9
1
2
3
4
5
6
11
10
8
7
