LOWER BELT GUARD 2.24
REMOVAL
1. See Figure 2-109. Remove two screws and nylon wash-
ers securing lower belt guard to swingarm.
2. Remove belt guard.
INSTALLATION
1. Position belt guard over tabs on swingarm.
2. Secure belt guard with two screws and nylon washers.
3. Tighten screws to 30-36 in-lbs (3-4 Nm).

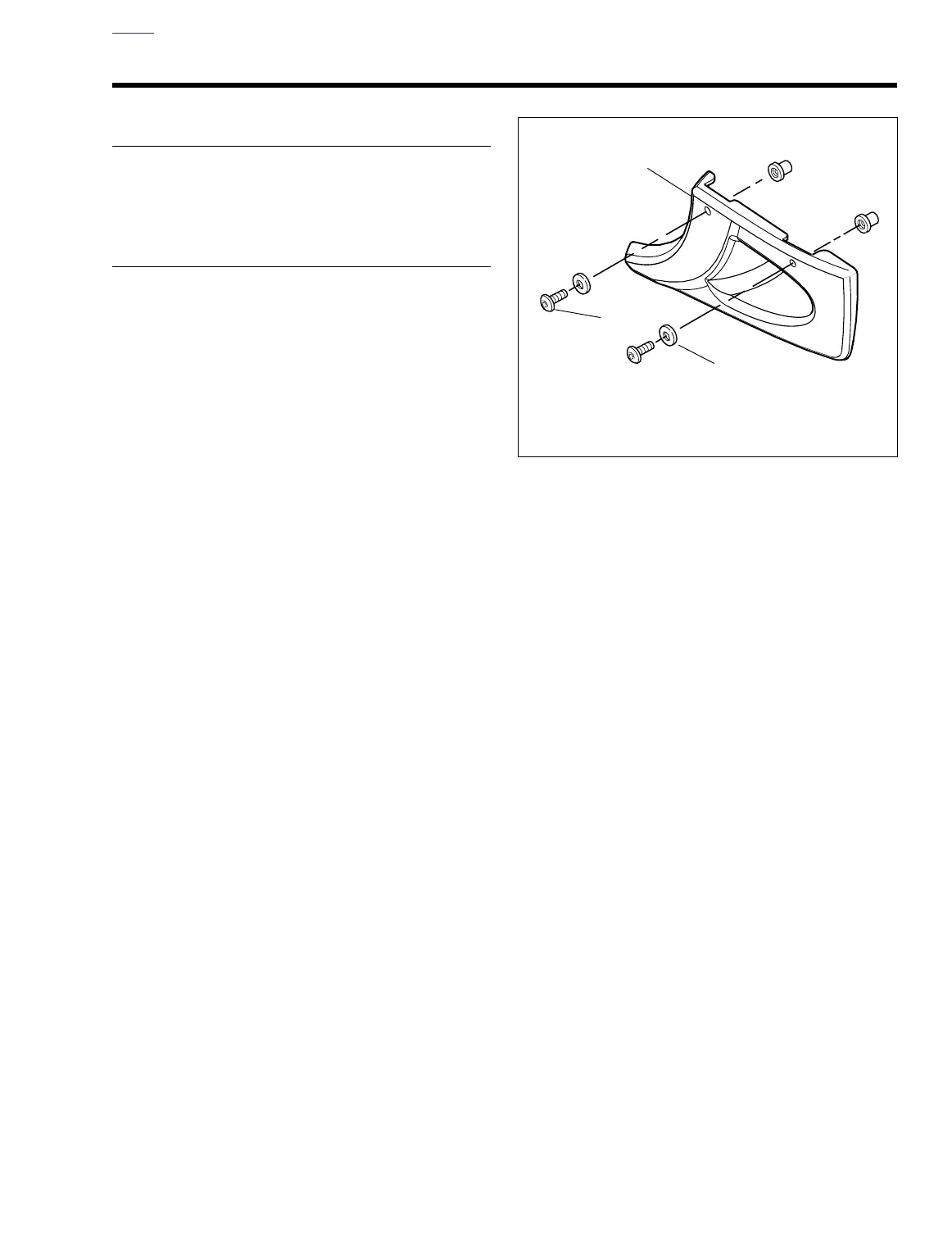

Figure 2-109. Lower Belt Guard
a0132x2x
1. Lower belt guard
2. Screws (2)
3. Nylon washers (2)
1
2
3
