IGNITION/HEADLAMP KEY SWITCH 7.6
GENERAL
11WARNING1WARNING
The automatic-on headlamp feature provides increased
visibility of the rider to other motorists. Be sure head-
lamp is on at all times. Poor visibility of rider to other
motorists can result in death or serious injury. (00030b)
See Figure 7-13. The four-position combination ignition/head-
lamp key switch is not repairable. Replace the unit if it fails.
Switch positions are explained in Table 7-12.
CAUTION
Turn the ignition switch to the OFF position and remove
the key before locking the motorcycle. Leaving the key in
the PARK position will keep the instrument lights on and
result in a discharged battery. (00155a)
NOTE
The key locks the ignition system and is removable in both
the OFF, FORK LOCK and P (PARK) positions. The PARK
position is located between the OFF and IGNITION positions
and allows the rider to remove the key while leaving the lights
on. When the key is placed in the PARK position, several indi-
cator markers are or can be activated. Refer to Table 7-13.

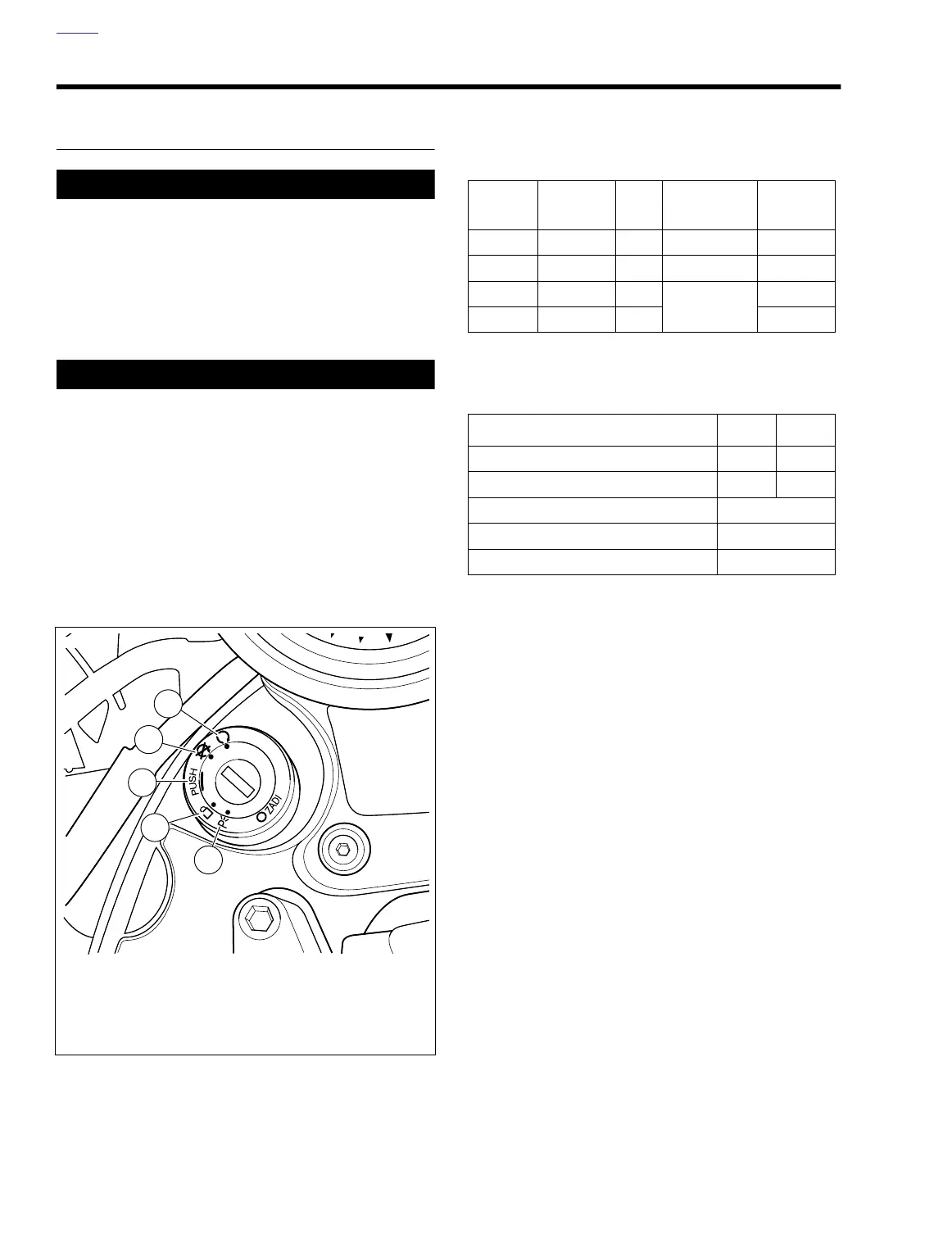

Figure 7-13. Ignition/Headlamp Key Switch
1. Ignition/Light position
2. OFF position
3. Push detent
4. Fork lock
5. P (Park) position
a0001xox
3
5
4
1
2
Table 7-12. Ignition Switch Labeling
LABEL NAME IGN. LAMPS
REMOVE
KEY
OFF Off off off yes
LOCK Fork Lock off off yes
P Park off See note &
Table 7-13.
yes
IGN Ignition on no
Table 7-13. Ignition Switch Operation
ITEM P IGN
Headlamp High/Low Beam off on
Speedometer Illumination Lamp on on
Stop Lamp can be activated
Front and Rear Turn Signals can be activated
Horn can be activated
