2007 Buell P3: Electrical 7-33
HOME
DIODES 7.12
REMOVAL
1. Remove seat. See 2.28 SEAT.
11WARNING1WARNING
To prevent accidental vehicle start-up, which could
cause death or serious injury, disconnect negative (-)
battery cable before proceeding. (00048a)
2. Disconnect negative battery cable from battery.
3. See Figure 7-42. Both diodes (1, 2) are mounted in the
fuse block under the seat.
4. Remove faulty diode by pulling it straight up off the relay
block.
INSTALLATION
1. See Figure 7-42. Install the
new
diodes into position on
the fuse block by pushing it into the slot.
2. Connect negative battery cable to battery terminal.
Tighten fastener to 72-96
in-lbs
(8-11 Nm).
11WARNING1WARNING
After installing seat, pull upward on front of seat to be
sure it is in locked position. While riding, a loose seat can
shift causing loss of control, which could result in death
or serious injury. (00070a)
3. Install seat. See 2.28 SEAT.

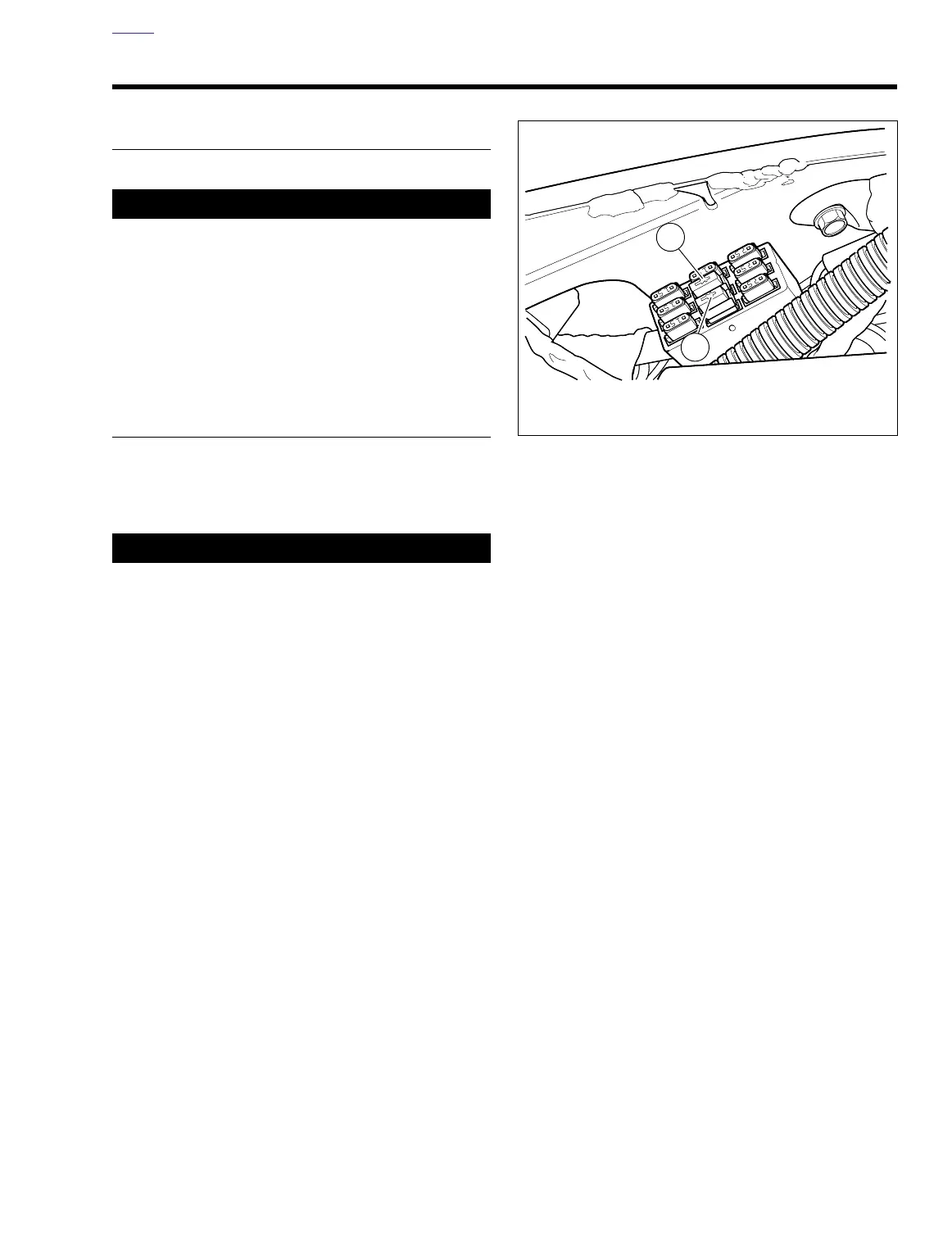

Figure 7-42. Diode Location in Fuse Block
a0285x7x
1. Starter circuit diode
2. Ignition circuit diode
1
2
