7-62 2007 Buell P3: Electrical
HOME
SPEEDOMETER SENSOR 7.26
REMOVAL
1. Remove seat. See 2.28 SEAT.
2. See Figure 7-83. Locate and unplug speedometer sen-
sor 3-place connector [65]. Connector is located in the
right side frame cavity.
3. See Figure 7-84. Locate speed sensor on engine case
right side, to the rear of the starter solenoid.
4. Remove speed sensor mounting screw.
5. Remove sensor with o-ring from engine case cavity and
pull wires down through frame.
INSPECTION
NOTE
Debris on speedometer sensor can result in false speedome-
ter reading, especially during break-in. Always clean and
troubleshoot speedometer sensor and verify proper operation
before replacing speedometer. See Speedometer Sensor
Test.
Clean any debris from speedometer sensor.
INSTALLATION
1. Install speedometer sensor in engine case.
2. Install screw and tighten to 80-100 in-lbs (9-11 Nm).
3. Connect connector [65] in right side frame cavity.
11WARNING1WARNING
After installing seat, pull upward on front of seat to be
sure it is in locked position. While riding, a loose seat can
shift causing loss of control, which could result in death
or serious injury. (00070a)
4. Install seat. See 2.28 SEAT.

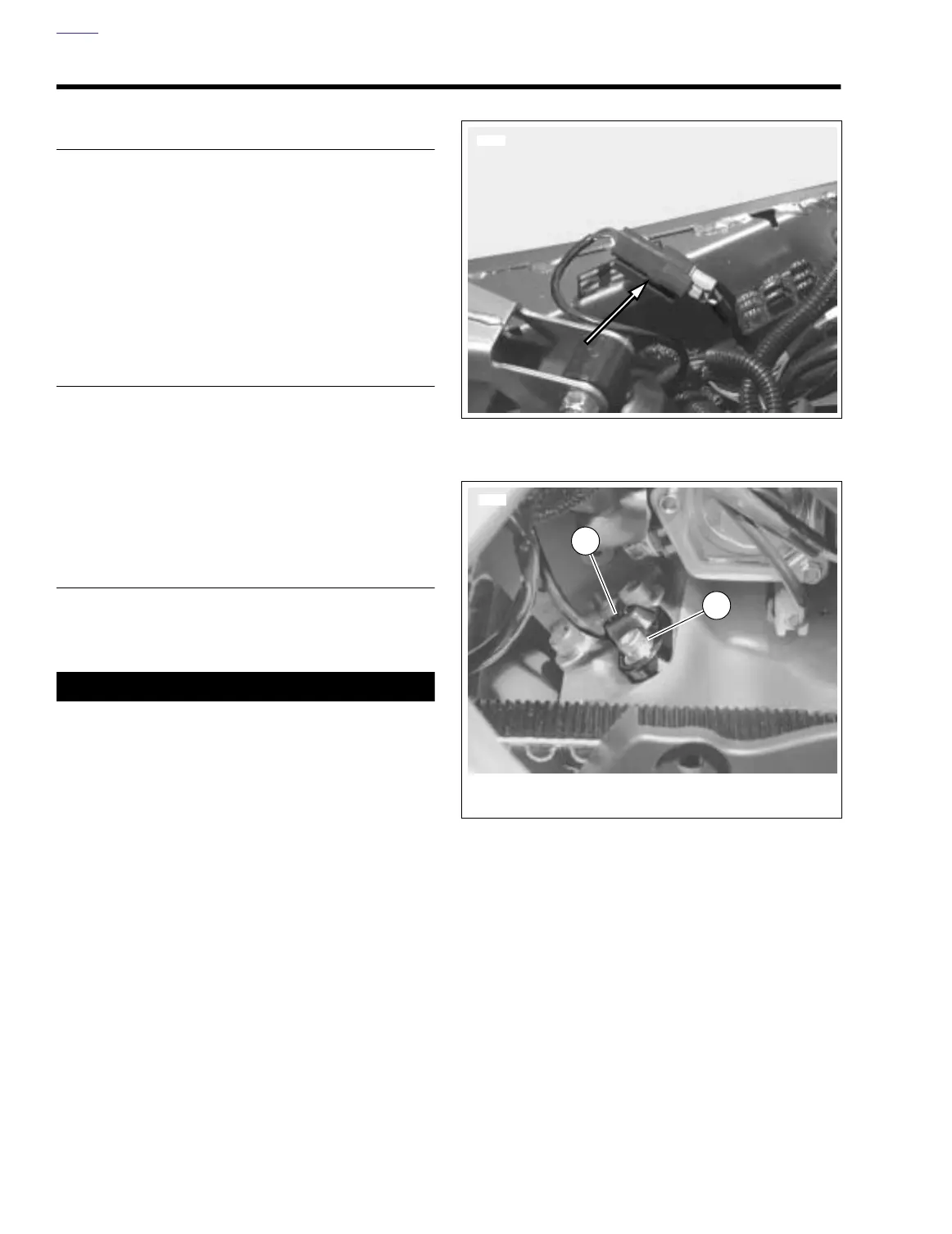

Figure 7-83. Speedometer Sensor Connector [65]
Figure 7-84. Speedometer Sensor
7720
7719
1. Speedometer sensor
2. Screw
2
1
