7-40 2007 Buell P3: Electrical
HOME
ALTERNATOR 7.14
REMOVAL/DISASSEMBLY
1. Remove seat. See 2.28 SEAT.
11WARNING1WARNING
To prevent accidental vehicle start-up, which could
cause death or serious injury, disconnect negative (-)
battery cable before proceeding. (00048a)
2. Disconnect negative battery cable from battery.
3. Remove primary cover. See 6.2 PRIMARY CHAIN.
4. Remove clutch assembly, primary chain and engine
sprocket/rotor assembly as a unit. See 6.4 PRIMARY
DRIVE/CLUTCH.
5. Remove/disassemble rotor and/or stator, as required.
Refer to the following procedures.
Rotor
1. See Figure 7-52. Remove the eight bolts which secure
alternator rotor to engine sprocket.
2. See Figure 7-53. Position blocking under rotor. Press
sprocket free of rotor.
NOTE
Resistance to sprocket/rotor disassembly is due in part to the
magnetic force of the permanent rotor magnets.

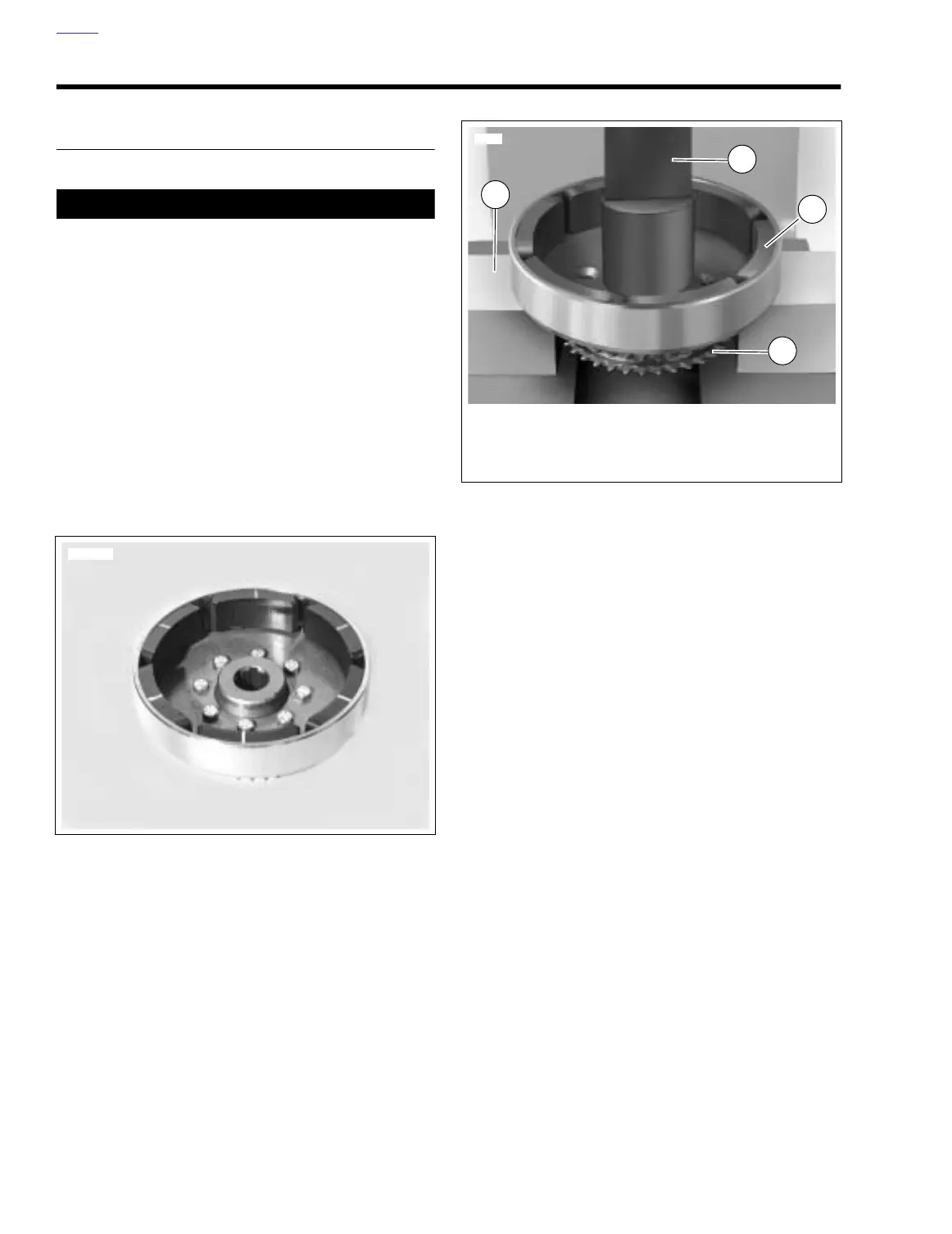

Figure 7-52. Rotor Assembly
7805
Figure 7-53. Removing Rotor From Sprocket
7806
1. Arbor press
2. Rotor
3. Sprocket
4. Blocking
2
1
3
4
