SEAT 2.28
REMOVAL
IMPORTANT NOTE
Use both hands to release tension on the seat latch to
avoid pinching fingers.
You will need to use both hands during this operation to
release tension on the seat latch (located beneath the seat).
1. See Figure 2-114. Push or pull the seat latch toward the
front of the motorcycle with your thumb.
2. Grasp the rear section of the seat with one hand.
3. Lift seat away from motorcycle to loosen from frame.
INSTALLATION
1. See Figure 2-115. Locate tab on bottom of seat.
2. See Figure 2-116. Ensure seat is upright. Grasp the rear
section of the seat with one hand and grasp the front
section of the seat with the other hand.
3. See Figure 2-117. Push seat forward while flexing the
rear section of the seat upward until the tongue locks into
the bracket located on the frame.
4. Push down firmly on the seat
NOTE
You will hear a click when the locating tab and seat latch lock
together.
11WARNING1WARNING
After installing seat, pull upward on front of seat to be
sure it is in locked position. While riding, a loose seat can
shift causing loss of control, which could result in death
or serious injury. (00070a)
5. Verify seat is locked in position.

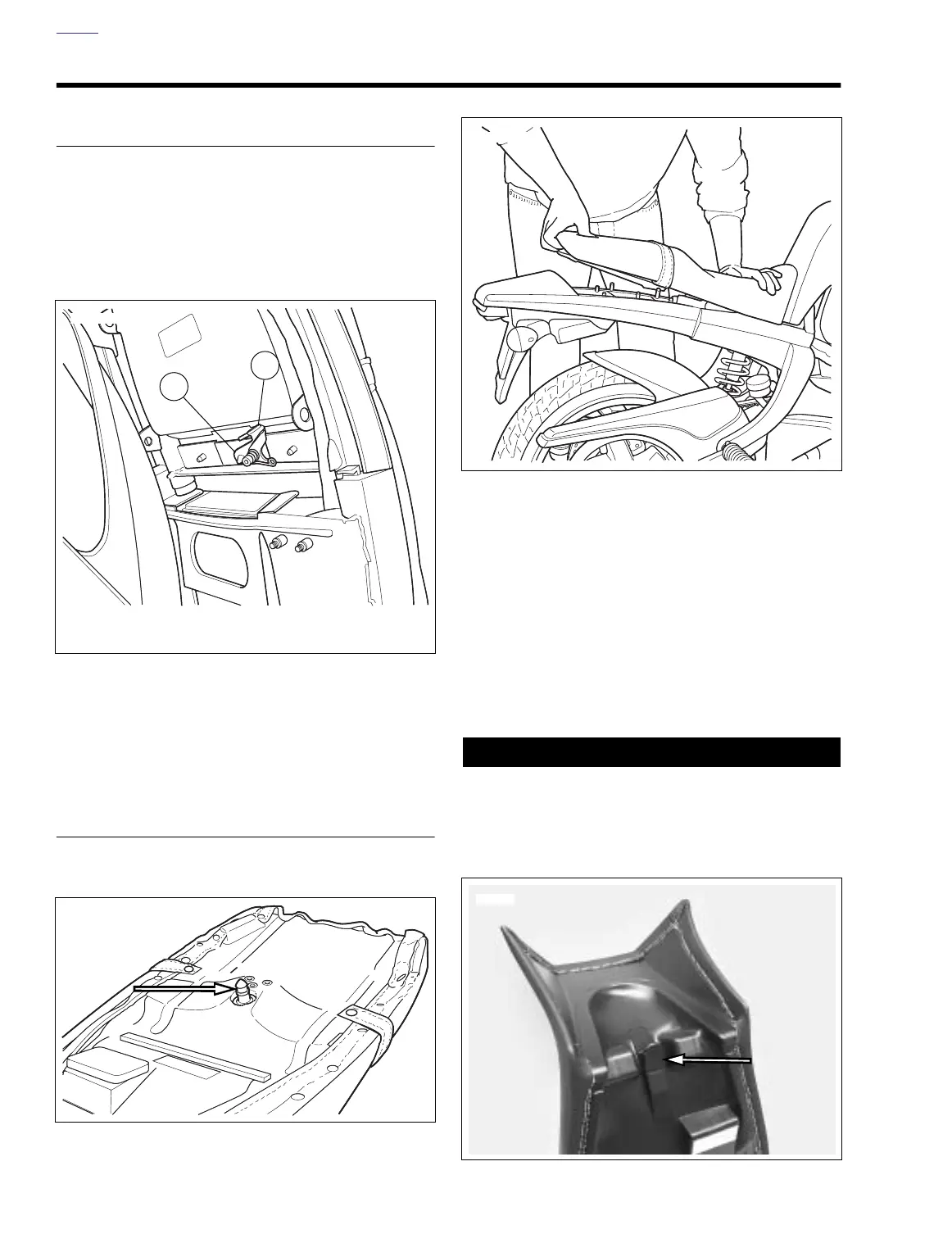

Figure 2-114. Seat Latch
