7-6 2007 Buell P3: Electrical
HOME
DIAGNOSTIC CHARTS 7.3

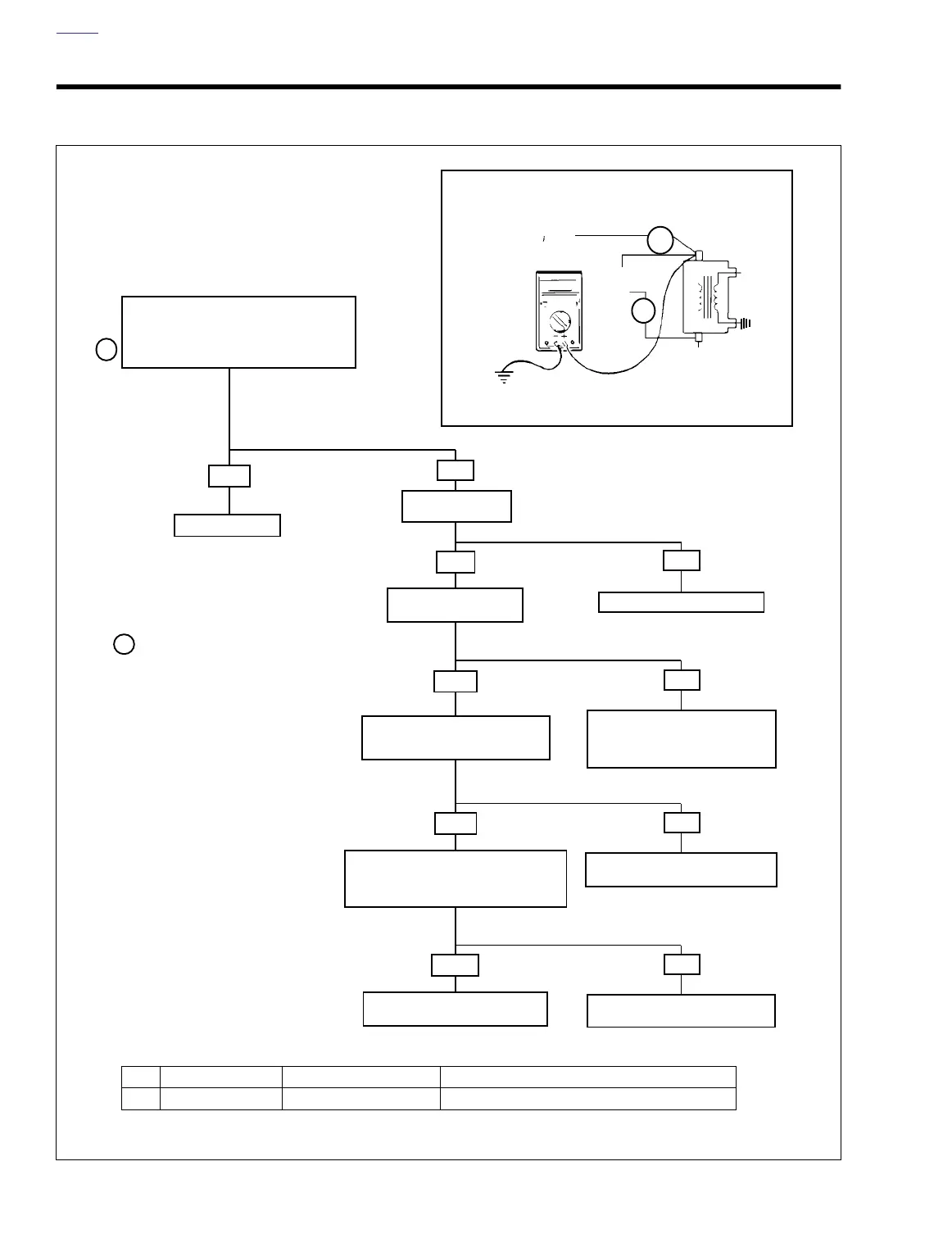

Figure 7-4. No Spark At Spark Plug
•Ignition On.
•Multimeter Red Wire To White/Black Wire On
Coil Connector [83], Multimeter Black Wire To
Ground.
•Meter Should Register 12v ± One Volt.
YES
Check Ignition Fuse
Is Fuse Ok?
NO
YES
NO
Replace - Find Source Of Fault
Battery Voltage at Gray
Wire In Fuse block?
YES
NO
Check For 12VDC Between Battery,
Main Breaker, Ignition Switch And
Fuse Block.
Repair As Necessary.
5001
5001
Measure Voltage At Connector [22A]
Pin 4 (GY).
Battery Voltage Present?
NO
Repair Open (GY) Wire Between [22]
and Fuse.
YES
5002
With Connector [22] Mated And Ignition On,
Measure Voltage At Connector [22A], Pins 2
and 3 (W/BK).
Battery Voltage Present?
NO
Repair / Replace Engine Stop Switch
or Wiring.
YES
Repair Open (W/BK) Wire Between
Coil and [22A].
5002
5173
+
-
PK
PK
W/BK
W/BK
Go To Next Page
No. Description Type Location
[22] RT Handlebar Switch 4 - Place Multilock Behind Headlight
Wire Harness Connectors
No Spark at Spark Plug
1
1
Use harness connector
adaptor kit (HD-41404)
gray male probe and
patch cord.
NOTE
Male connectors are labeled “A”
Female connectors are labeled “B”
To Next Page
