STARTER ACTIVATION CIRCUITS 5.4

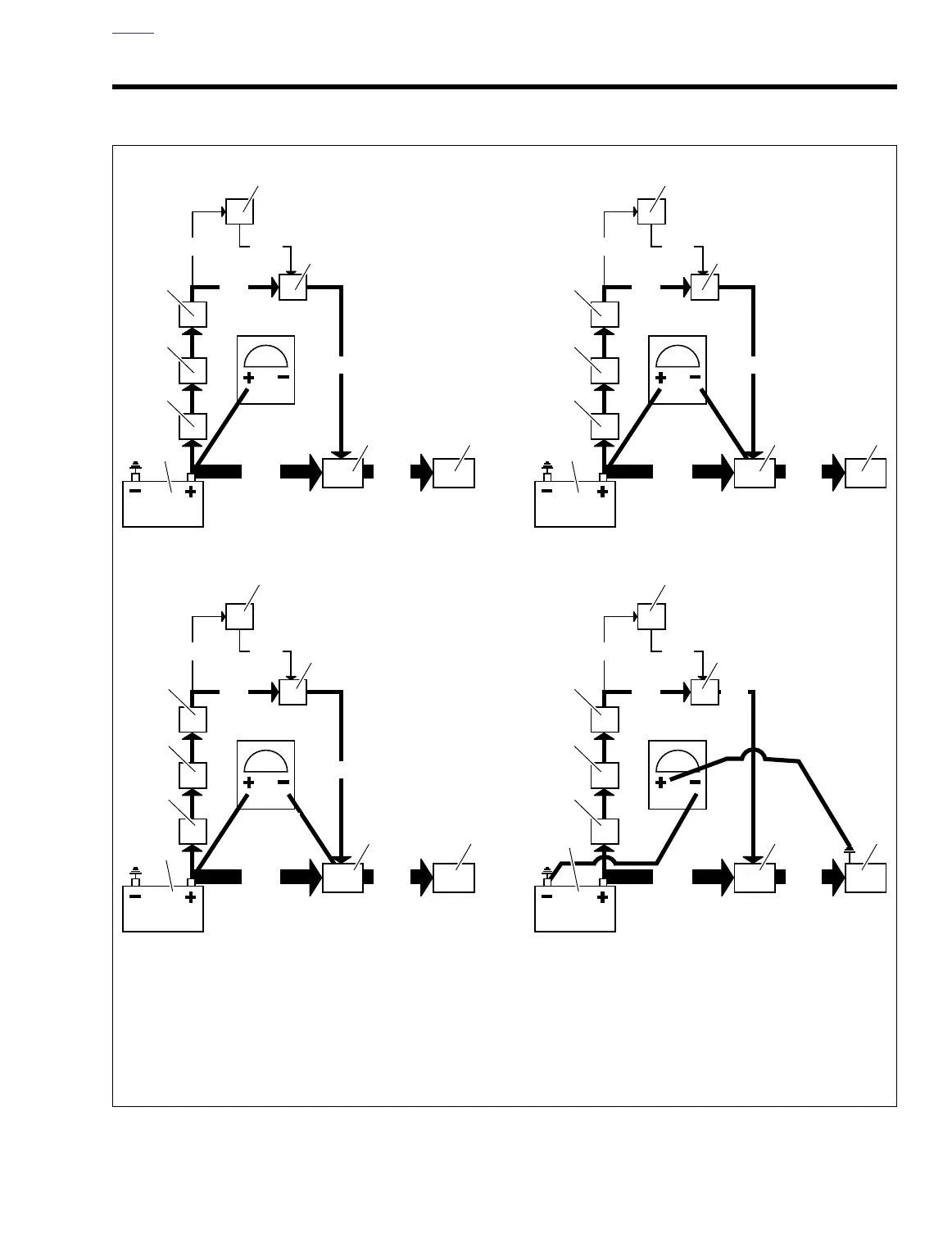

Figure 5-4. Typical Circuity. (Refer to wiring diagrams for more information.)
150A
20A
20A
0.1A
150A
0.1A
150A
20A
20A
0.1A
150A
0.1A
150A
20A
20A
0.1A
150A
0.1A
150A
20A 20A
0.1A
150A
0.1A
VDC
ITEM A
IDEAL CLOSED
CIRCUIT
GROUND CIRCUIT
OPEN CIRCUIT
a0193x5x
OV
VDC
VDC
12V OV
ITEM B
ITEM C
ITEM D
1
2
43
5
6
7
8
1
2
43
5
6
7
8
1
2
43
5
6
7
8
1
2
43
5
6
7
8
1. Start switch
2. Relay
3. Solenoid
4. Starter
5. Battery
6. Main circuit breaker
7. Ignition switch
8. Ignition circuit breaker
