2007 Buell P3: Maintenance 1-19
HOME
TRANSMISSION/PRIMARY FLUID 1.10
GENERAL
Transmission fluid capacity is 1.0 quart (0.95 liter). For best
results, drain fluid while it is hot.
INSPECTION
1. Remove seat. See 2.28 SEAT.
11WARNING1WARNING
To prevent accidental vehicle start-up, which could
cause death or serious injury, disconnect negative (-)
battery cable before proceeding. (00048a)
2. Disconnect negative battery cable from battery.
3. Remove left footpeg support bracket. See 2.21 FOOT-
PEGS AND FOOTPEG SUPPORT BRACKETS.
4. See Figure 1-15. Remove three TORX screws with
washers (1) from clutch inspection cover (2). Remove
clutch inspection cover from primary cover.
5. See Figure 1-16. Inspect fluid level with motorcycle in
upright position.
6. See Figure 1-15. Install new gasket and clutch inspec-
tion cover using three TORX screws with washers.
Tighten in a crosswise pattern to 84-108 in-lbs (9.5-12.2
Nm).
7. Install left footpeg support bracket. See 2.21 FOOT-
PEGS AND FOOTPEG SUPPORT BRACKETS.
8. Connect negative battery cable to battery. See 1.4 BAT-
TERY.
11WARNING1WARNING
After installing seat, pull upward on front of seat to be
sure it is in locked position. While riding, a loose seat can
shift causing loss of control, which could result in death
or serious injury. (00070a)
9. Install seat. See 2.28 SEAT.

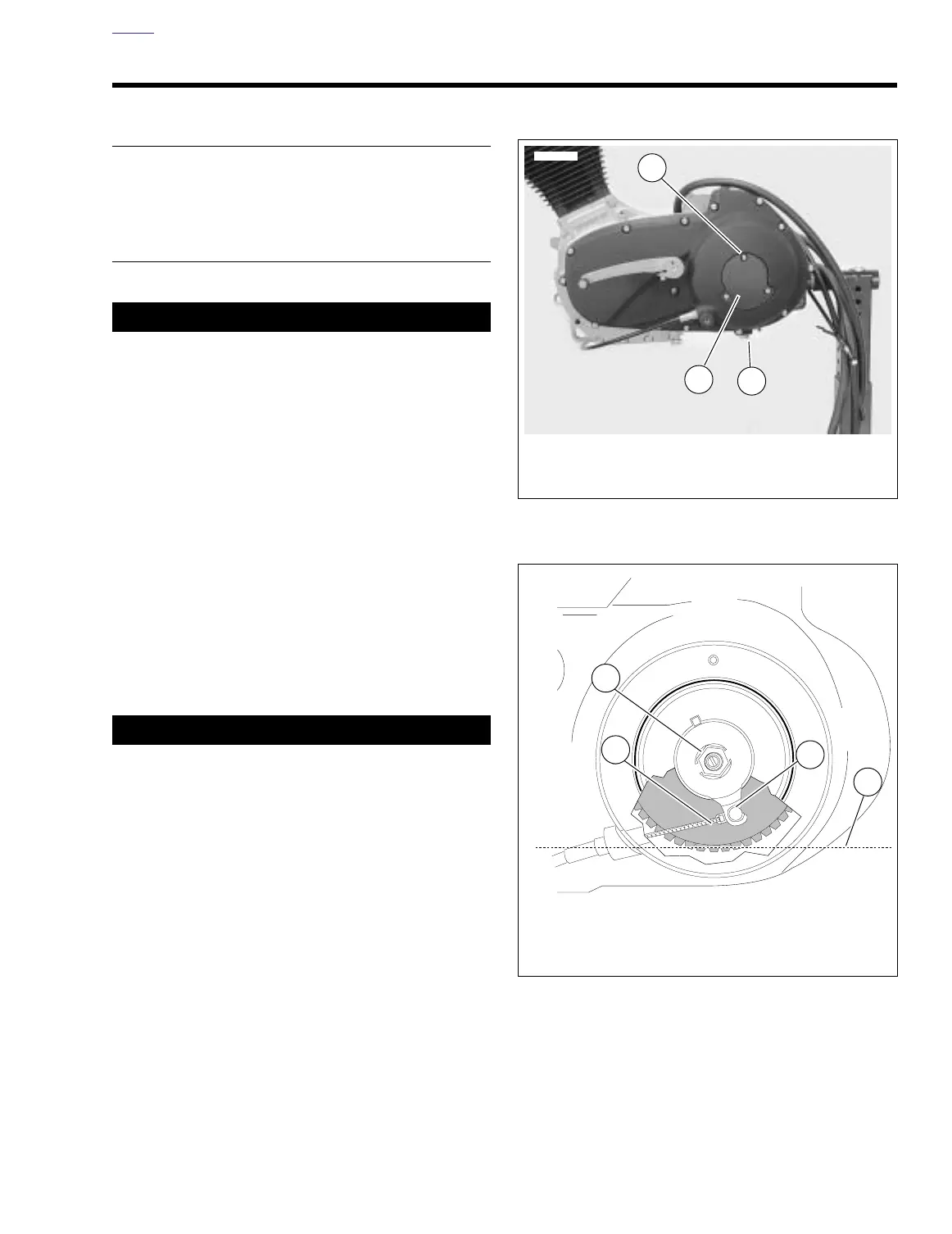

Figure 1-15. Primary Cover
Figure 1-16. Fluid Level
7667
1. Torx screws with washers (3)
2. Clutch inspection cover
3. Magnetic drain plug (with o-ring)
1
2
3
1. Adjusting screw
2. Cable end
3. Coupling
4. Correct fluid level
a0126x6x
1
3
2
4
