1-18 2007 Buell P3: Maintenance
HOME
8. Adjust as follows:
a. See Figure 1-14. Pull ferrule (end of cable housing)
away from bracket. Gap between ferrule and bracket
should be 0.0625-0.125 in. (1.6-3.2 mm).
b. See Figure 1-12. Set freeplay by turning adjuster.
c. Tighten jam nut against adjuster.
d. Slide rubber boot over cable adjuster mechanism.
9. Change or add transmission fluid if necessary.
NOTE
Clean parts before re-assembly and use a new gasket.
10. See Figure 1-13. Install new gasket and clutch inspec-
tion cover using three TORX screws with washers.
Tighten in a crosswise pattern to 84-108 in-lbs (9.5-12.2
Nm).
11. Check clutch cable freeplay. See Step 7 above.
12. Install left footpeg support bracket. See 2.21 FOOT-
PEGS AND FOOTPEG SUPPORT BRACKETS.

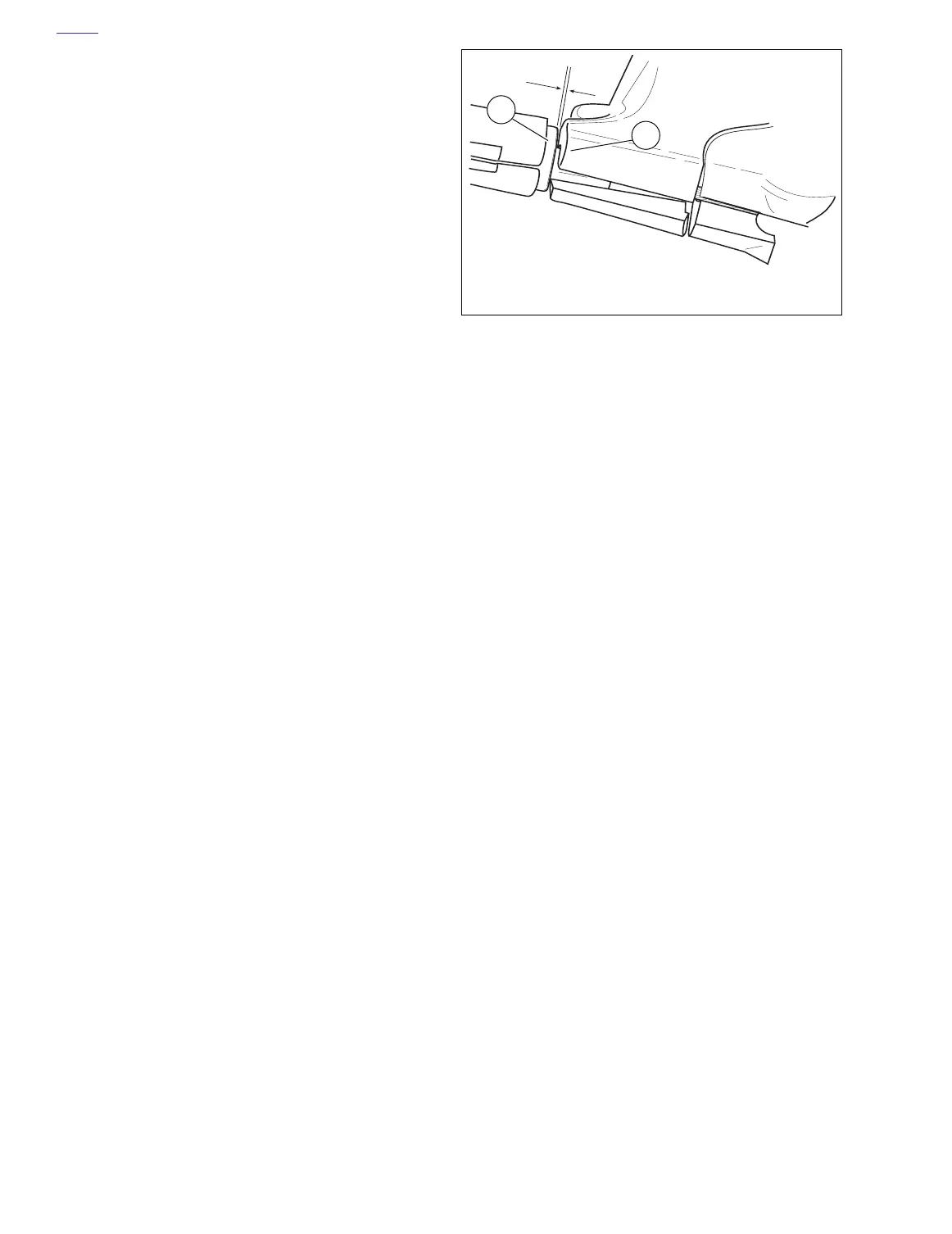

Figure 1-14. Adjusting Clutch Freeplay
a0158x6x
1. Ferrule
2. Bracket
1
2
