7-18 2007 Buell P3: Electrical
HOME
IGNITION MODULE AND CAM POSITION SENSOR 7.8
GENERAL
See Figure 7-17. The ignition module is integrated with the
cam position sensor on the module plate in the gearcase
cover located on the right side of the motorcycle. The inte-
grated ignition module is not repairable. Replace the unit if it
fails.
For information on the function and testing of the integrated
ignition module see 7.2 IGNITION SYSTEM.
See Figure 7-18. The rotor cup is located in the gearcase
cover on the right side of the vehicle behind the integrated
ignition module. The rotor is mounted on the camshaft and
operates at one-half crankshaft speed. See IGNITION TIM-
ING for information on the function, testing and adjustment of
the integrated ignition module and trigger rotor assembly.
REMOVAL
1. Remove seat. See 2.28 SEAT.
11WARNING1WARNING
To prevent accidental vehicle start-up, which could
cause death or serious injury, disconnect negative (-)
battery cable before proceeding. (00048a)
2. Disconnect negative battery cable from battery terminal.
3. Remove locknut and clamp that secures wire harness
and hoses on right side of motorcycle.
4. See Figure 7-17. Disconnect connector [10] located on
the left side of the frame backbone.
5. Note position of each wiring terminal in plug end of con-
nector.
6. Remove connector terminal pins. See B.9 DEUTSCH.
11WARNING1WARNING
Always wear proper eye protection when drilling. Flying
debris could cause serious eye injury. (00402c)
IMPORTANT NOTES
● Drilling hole in cover in location other than that
specified may result in module plate damage. Drill
carefully only where indicated to avoid damaging
module plate behind cover.
● Do not pry timer cover from bore or damage to gear-
case or ignition module may result.
7. See Figure 7-18. Drill hole in outer timer cover at 5:00
position approximately 0.500 in. (13 mm) in from outside
edge. Pull out outer timer cover using 90 degree pick or
other suitable tool.
8. To obtain approximate ignition timing during installation,
scribe alignment marks across module plate and bore in
two places.
9. See Figure 7-19. Remove two module plate mounting
screws (2). Carefully remove module plate (3). Remove
screw (4) and rotor cup (5).
10. Carefully remove camshaft oil seal if damaged or if there
is any evidence of oil leakage past the seal.

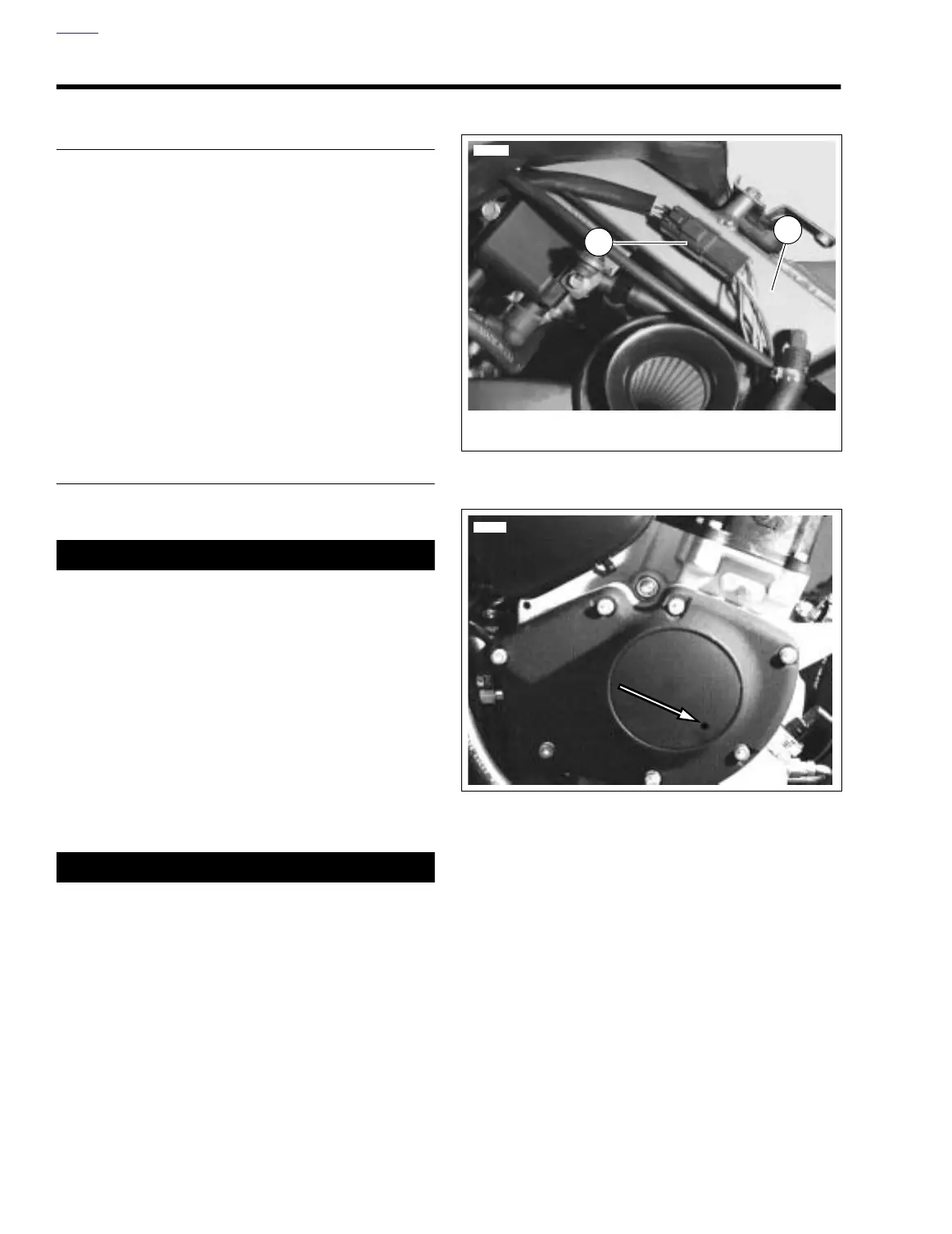

Figure 7-17. Integrated Ignition Module Connector [10]
Figure 7-18. Drill Hole Location for Drilling/Removing
Timer Cover
7793
1. Connector [10]
2. Frame backbone
2
1
7794
