AIR CLEANER 4.3
GENERAL
The air cleaner prevents foreign material from entering the
carburetor and engine, trapping airborne dust and dirt in the
filter element.
For removal, cleaning and inspection, and installation proce-
dures, see 1.17 AIR CLEANER.

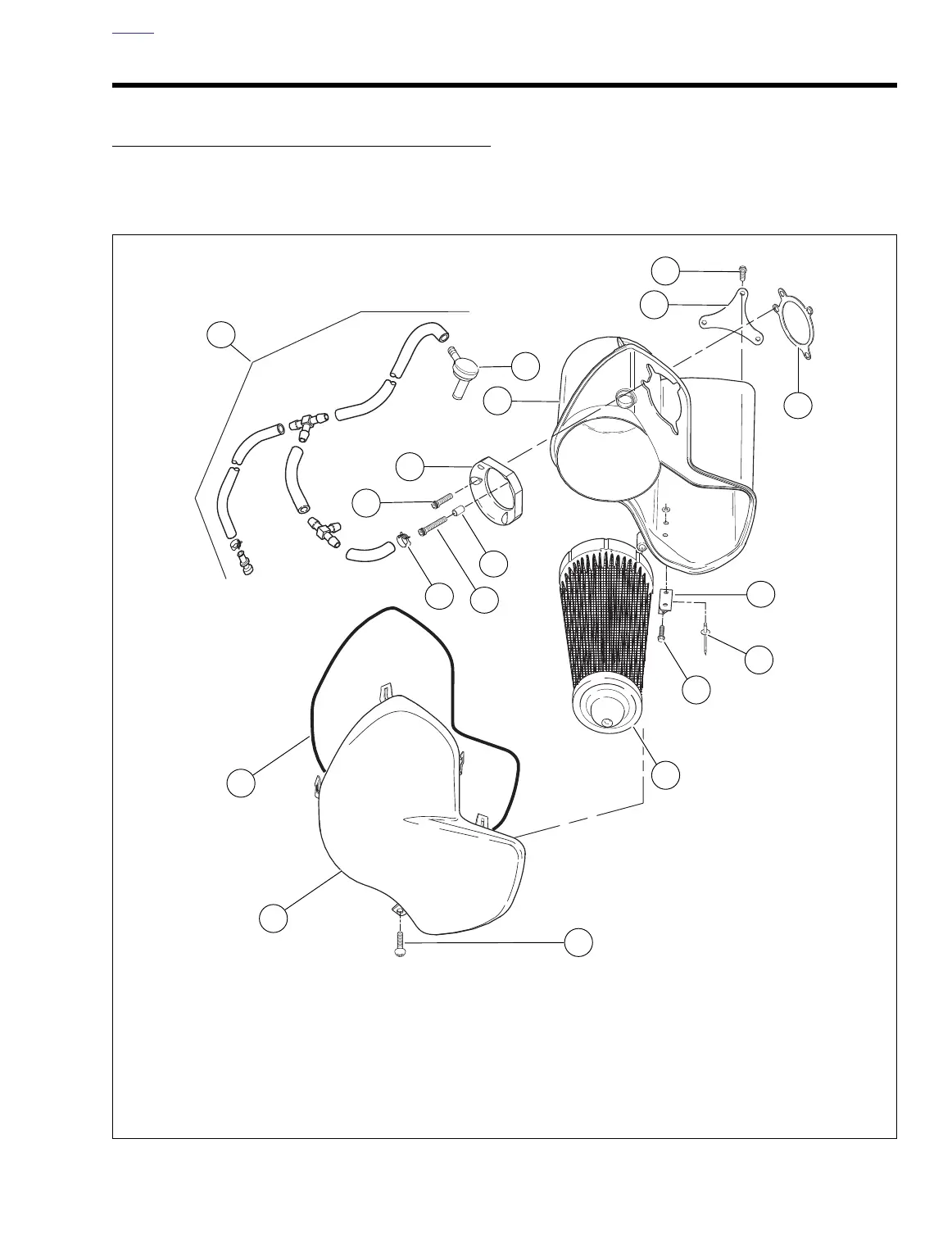

Figure 4-10. Air Cleaner Assembly
1. Cover, air cleaner
2. Seal, air cleaner cover
3. Clamp, spring type
4. Screw
5. Spacer
6. Screw (2)
7. Venturi ring
8. Air filter box
9. Breather hoses and fittings
10. PCV valve
11. Mounting bracket, left side
12. Screw (2)
13. Gasket, carburetor
14. Mounting bracket, right side
15. Rivet (2)
16. Screw (4)
17. Air filter
18. Screw
9
14
13
4
5
a0482x4x
3
16
15
12
11
10
8
7
6
2
1
17
18
