Buell P3 - Cylinder Head 3.5; Cylinder Head

3-24 2007 Buell P3: Engine
HOME
CYLINDER HEAD 3.5
REMOVAL
The rocker arm covers and internal components must be
removed before removing cylinder heads.

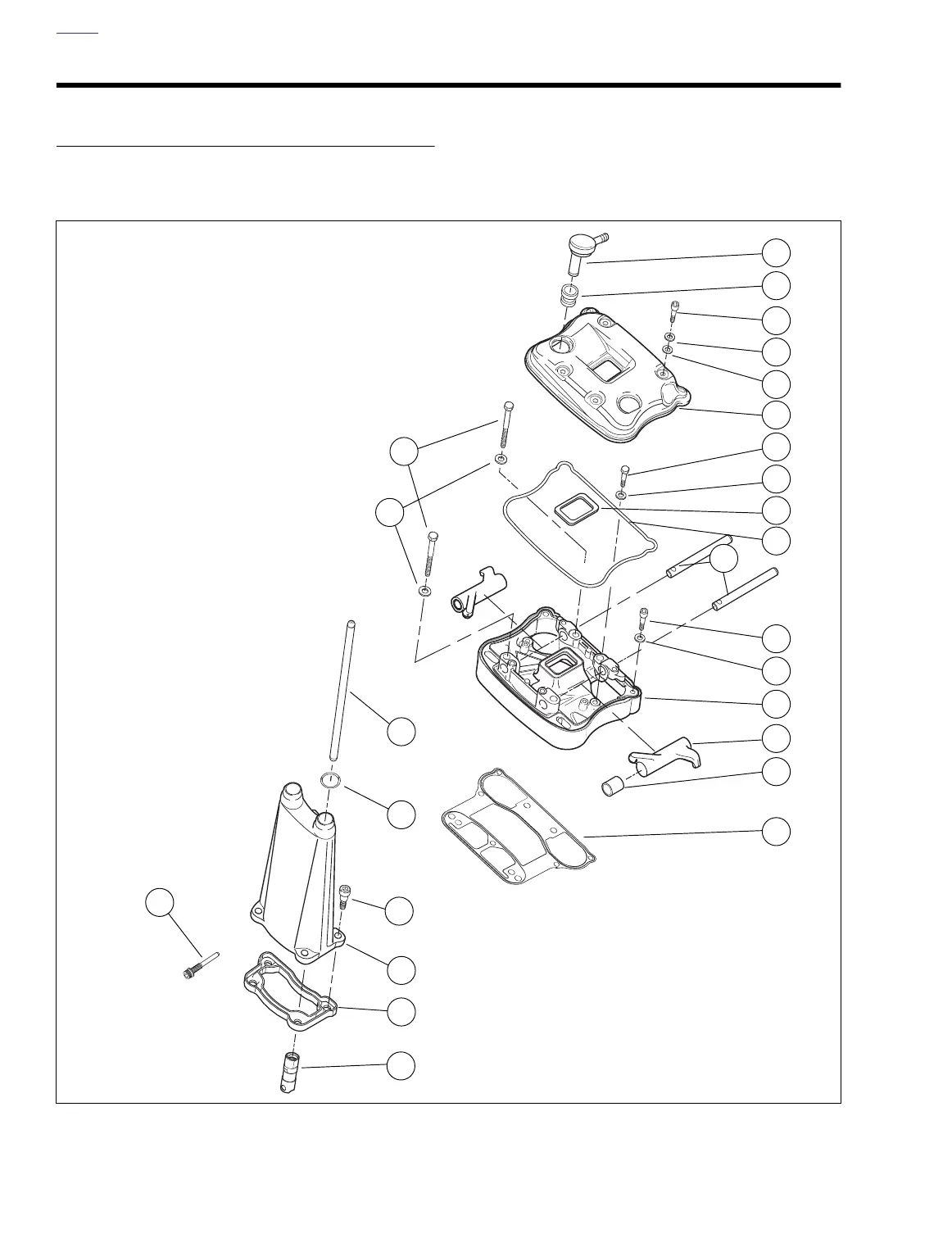

Figure 3-44. Rocker Arm and Push Rod Cover Assemblies
1. Crankcase breather
2. Grommet
3. Screw (4)
4. Washer (4)
5. Gasket (4)
6. Rocker cover (top)
7. Bolt (3)
8. Washer (3)
9. Gasket (inner)
10. Gasket (lower)
11. Rocker arm shafts
12. Bolt (2)
13. washer (2)
14. Rocker cover (lower)
15. Rocker arm (2)
16. Bushing (rocker arm - 4)
17. Gasket (lower rocker cover)
18. Hydraulic lifter
19. Screw, tappet anti-rotation (2)
20. Gasket (push rod cover)
21. Push rod cover
22. Screw (4)
23. O-ring (push rod cover - 2)
24. Push rod
25. Washer (4)
26. Bolt (4)
2
4
8
12
15
16
17
21
25
b0960x3x
19
26
9
6
1
10
14
13
24
3
11
20
23
5
7
22
18
