TRANSMISSION DISASSEMBLY 6.7
CASE REMOVAL
NOTES
●
If transmission only is being serviced, do not remove fly-
wheel assembly.
●
For crankcase, flywheel or other major servicing, the fly-
wheel assembly can be removed at any time. The same
specialty tools are used.
1. See Figure 6-28. Remove transmission case. See 6.6
TRANSMISSION CASE
2. Remove crankcase and transmission assembly from
engine stand.
3. See Figure 6-29. Place crankcase half (3) and transmis-
sion assembly (4) on arbor press (1) and support trans-
mission assembly on parallel supports (5).
4. Press transmission assembly using TRANSMISSION
REMOVER (2) (Part No. B-43985-1) to remove transmis-
sion assembly from crankcase half.
5. Remove crankcase from fixture.

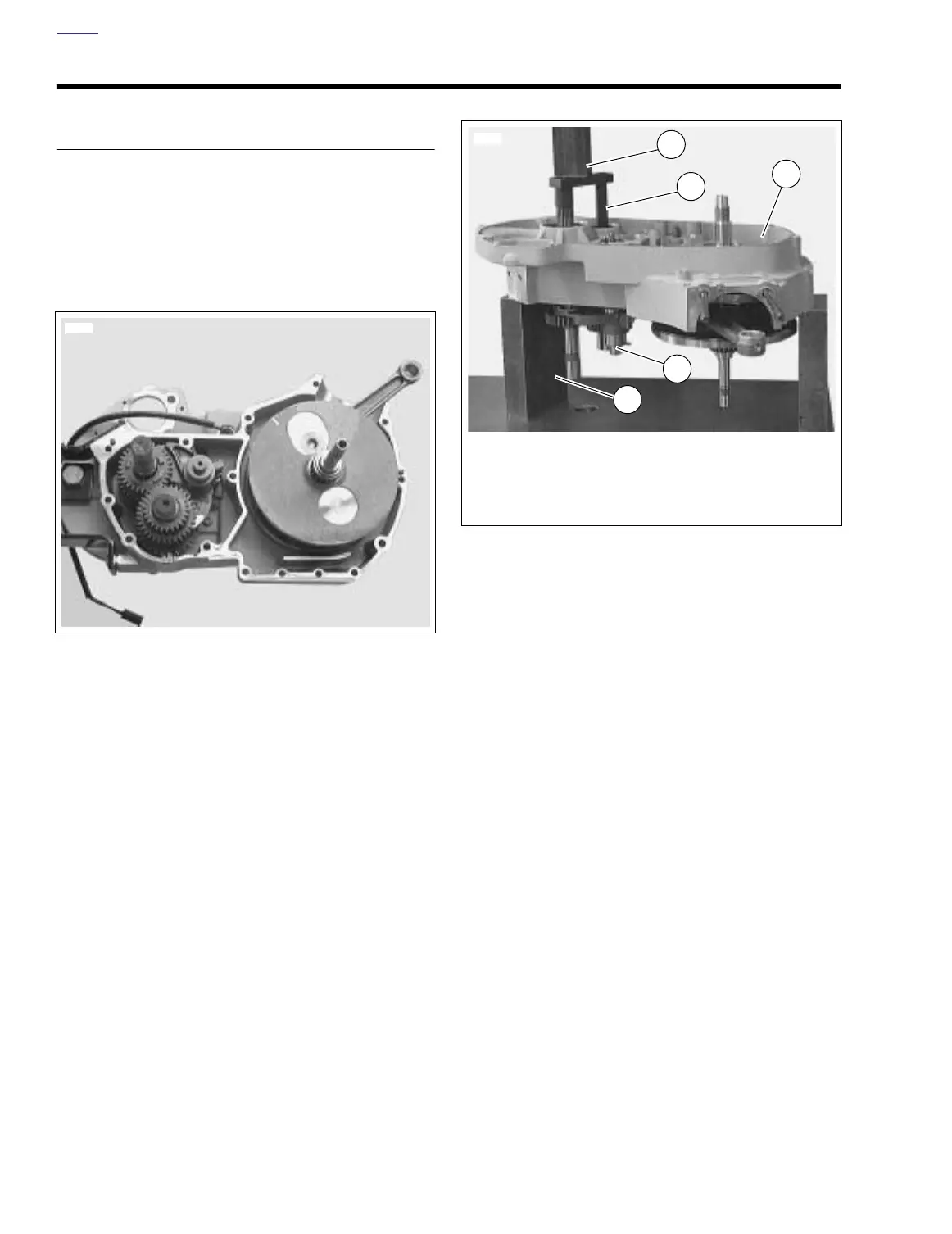

Figure 6-28. Transmission Assembly
7693
Figure 6-29. Transmission Remover/Installer on Fixture
7737
1. Arbor press
2. Transmission remover (Part no. B-43985-1)
3. Crankcase
4. Transmission assembly
5. Parallel supports
1
4
5
2
3
