2007 Buell P3: Drive/Transmission 6-19
HOME
14. See Figure 6-26. Remove all transmission case bolts.
15. Remove rear isolator (3) and mounting hardware (1, 2).
16. See Figure 6-27. Separate crankcase halves.

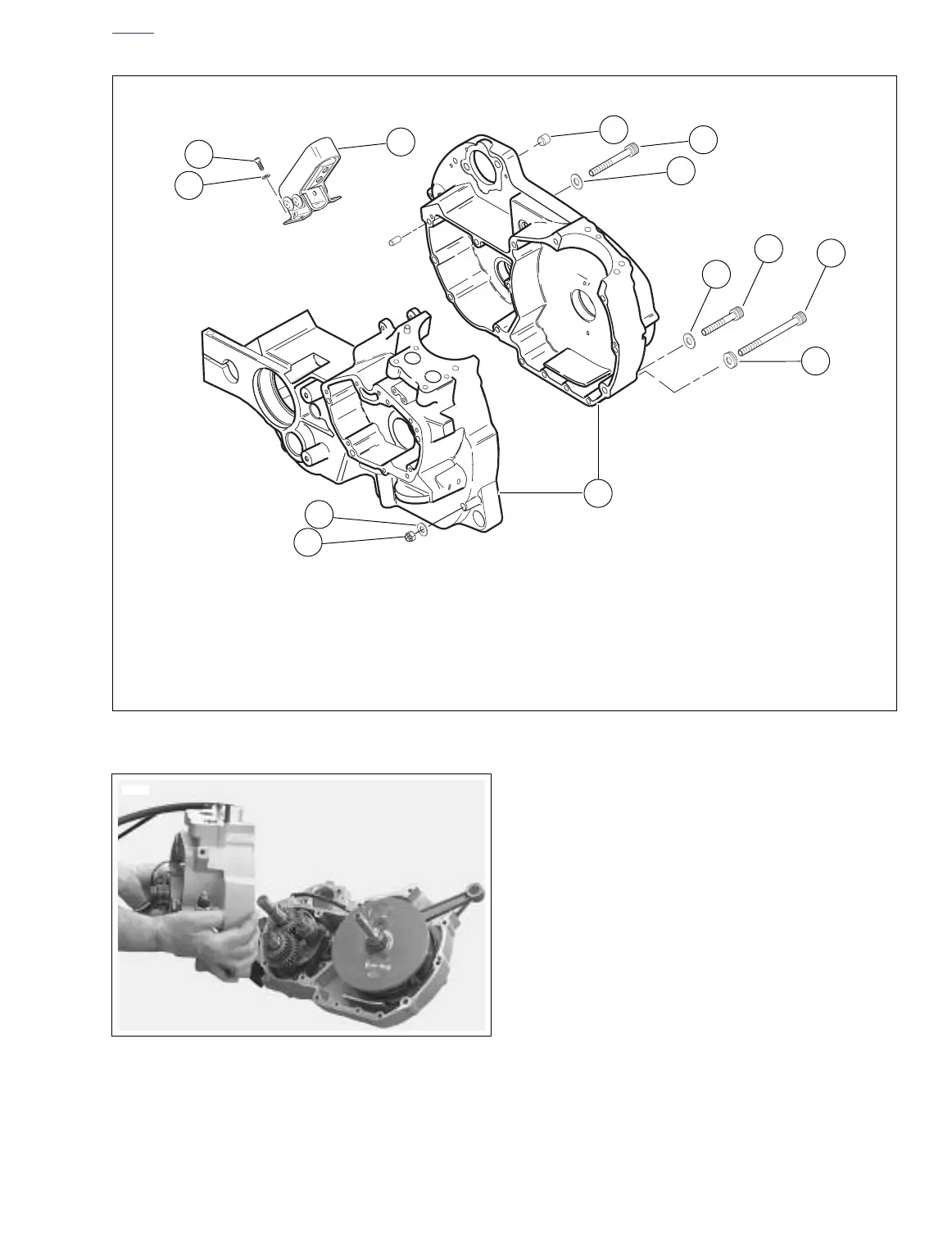

Figure 6-26. Crankcase Hardware
1. Screw (4)
2. Washer (4)
3. Rear isolator
4. Dowel pin
5. Hex socket head screw (9)
6. Washer (14)
7. Bottom case t40 TORX bolt (5)
8. Hex socket head screw
9. Spacer
10. Crankcase set
11. Nyloc, hex locknut
12. Washer
a0484x6x
12
10
4
5
8
7
6
6
9
11
3
1
2
Figure 6-27. Splitting Crankcase Halves
