2007 Buell P3: Electric Starter 5-11
HOME
STARTER 5.7
REMOVAL
1. Remove seat. See 2.28 SEAT.
1WARNING1WARNING
To prevent accidental vehicle start-up, which could
cause death or serious injury, disconnect negative (-)
battery cable before proceeding. (00048a)
1WARNING1WARNING
Disconnect negative (-) battery cable first. If positive (+)
cable should contact ground with negative (-) cable con-
nected, the resulting sparks can cause a battery explo-
sion, which could result in death or serious injury.
(00049a)
2. Disconnect battery cables from battery, negative cable
first.
3. Remove air cleaner. See 1.17 AIR CLEANER.
4. Remove left side footpeg support bracket and primary
cover. See 2.21 FOOTPEGS AND FOOTPEG SUP-
PORT BRACKETS.
5. See Figure 5-9. Remove locknut and clamp that secure
oil hoses on right side of motorcycle.
6. Push hoses to either side to allow access to starter.
7. See Figure 5-10. Remove both starter mounting bolts
and washers.
NOTE
A ball hex driver may be required to gain access to the starter
mounting bolts.
8. See Figure 5-11. Remove positive battery cable from
solenoid.
a. Remove protective boot if present.
b. Remove nut with washer (metric) that attaches posi-
tive battery cable to post.
c. Remove positive battery cable ring terminal.
d. Detach solenoid connector [128].
9. Remove starter and gasket.

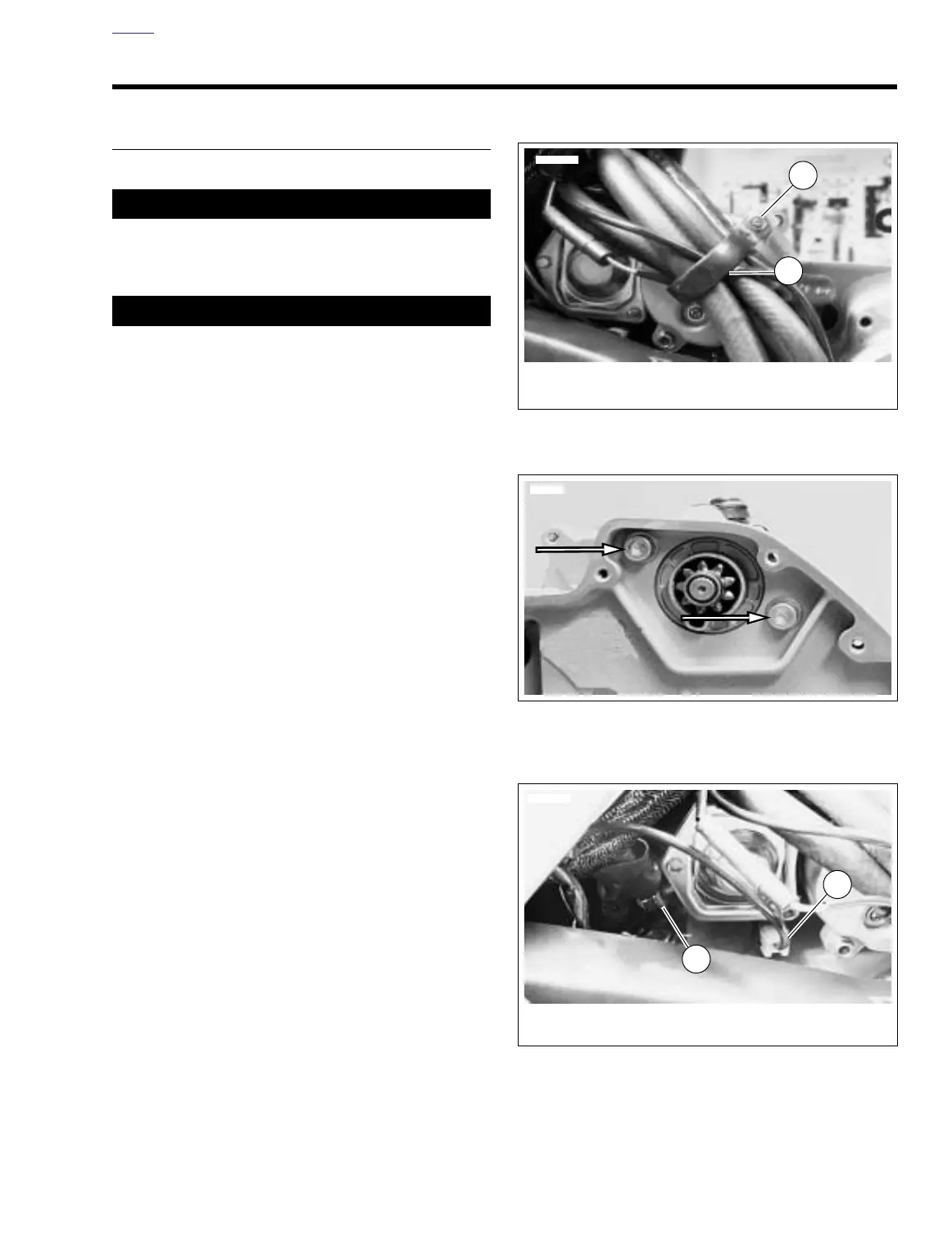

Figure 5-9. Oil Hose Clamp
Figure 5-10. Starter Mounting Bolts and Washers
(Primary Side)
Figure 5-11. Starter Wires
7768
1. Positive battery ring terminal
2. Connector [128]
2
1
