2007 Buell P3: Electrical 7-51
HOME
TAIL LAMP 7.18
BULB REPLACEMENT
1. See Figure 7-65. Remove two screws (1) and lens (2).
2. Rotate bulb (3) counterclockwise and pull to remove.
3. Install new tail lamp bulb by pushing into socket and
rotating bulb clockwise.
4. Install tail lamp lens with two screws.
REMOVAL
1. See Figure 7-65. Disconnect the tail lamp connector (7)
from rear of tail lamp under tail section.
2. Remove two locknuts (metric) (5), washers (4) and tail
lamp.
INSTALLATION
NOTE
Push up on metal bracket under tail section to align tail lamp
mounting holes.
1. See Figure 7-65. Attach tail lamp to tail section with two
washers (4) and locknuts (metric) (5). Tighten locknuts to
23-28 in-lbs (2.6-3.2 Nm).
2. Attach the tail lamp connector (7) to the back of the tail
lamp.
11WARNING1WARNING
Be sure that all lights and switches operate properly
before operating motorcycle. Low visibility of rider can
result in death or serious injury. (00316a)
3. Check tail lamp for proper operation. If operation fails,
reread procedure and verify that all steps were per-
formed.
a. Turn ignition key switch to IGN.
b. Check for tail lamp illumination.
c. Squeeze front brake hand lever. Check for brake
lamp illumination. Release front brake hand lever.
d. Press rear brake pedal. Check for brake lamp illumi-
nation. Release rear brake pedal.
e. Turn ignition key switch to OFF.

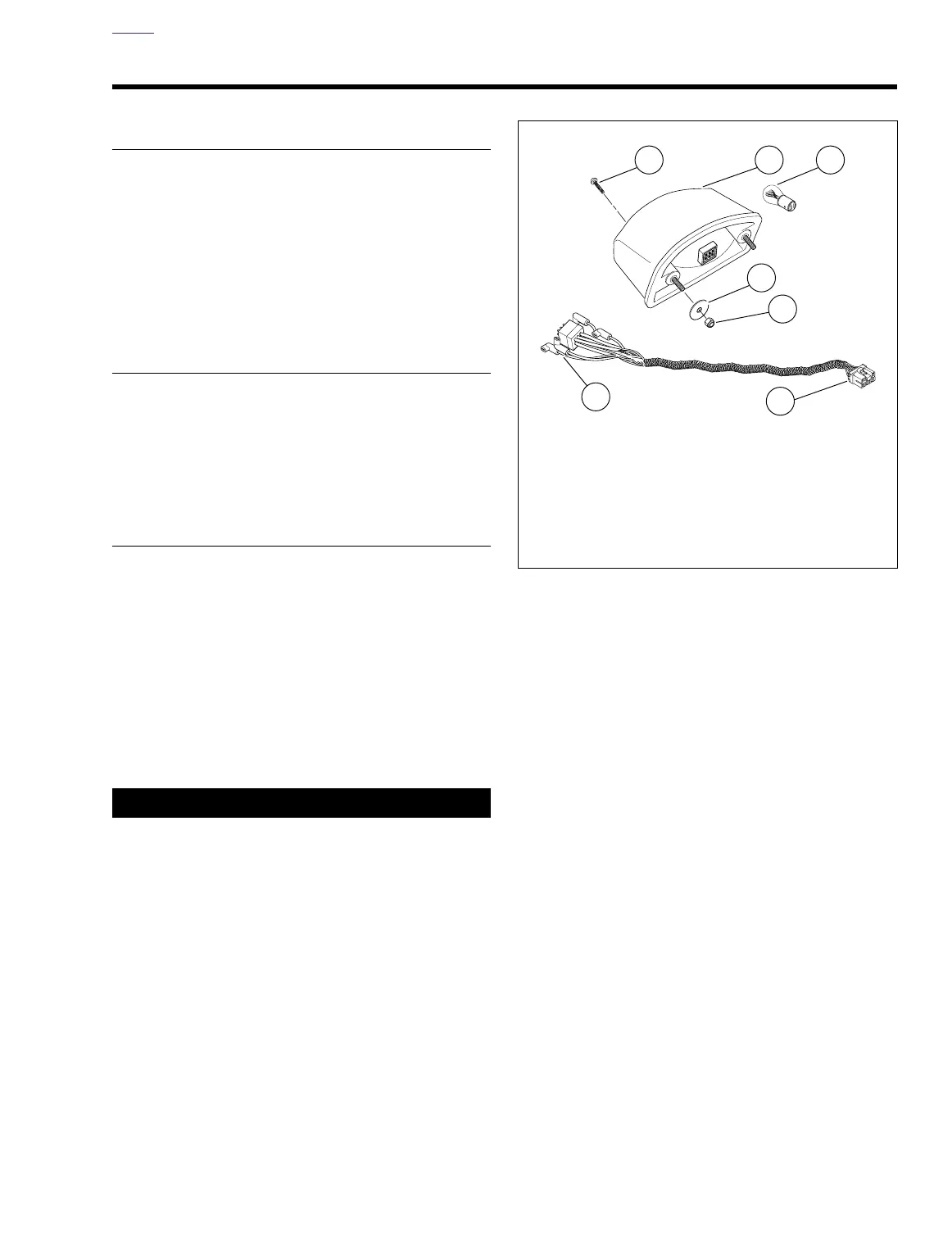

Figure 7-65. Tail Lamp
a0254x7x
1. Screws (2)
2.
Lens
3. Bulb
4. Washer (2)
5. Locknut (metric) (2)
6. Tail lamp wire harness connector [7]
7. Tail lamp/turn signal bullet and blade connectors
1 32
4
5
7
6
