SHIFTER FORKS AND DRUM
DISASSEMBLY
1. See Figure 6-30. Remove and discard the three fork cot-
ter pins (14).
2. Remove three shifter fork pins (15). A small magnet is
useful in freeing the fork pins.
3. Slide shifter fork drum (19) away through shifter forks.
The neutral indicator pin (20) prevents removal in the
other direction.
4. Remove shifter forks (16, 17, 18).

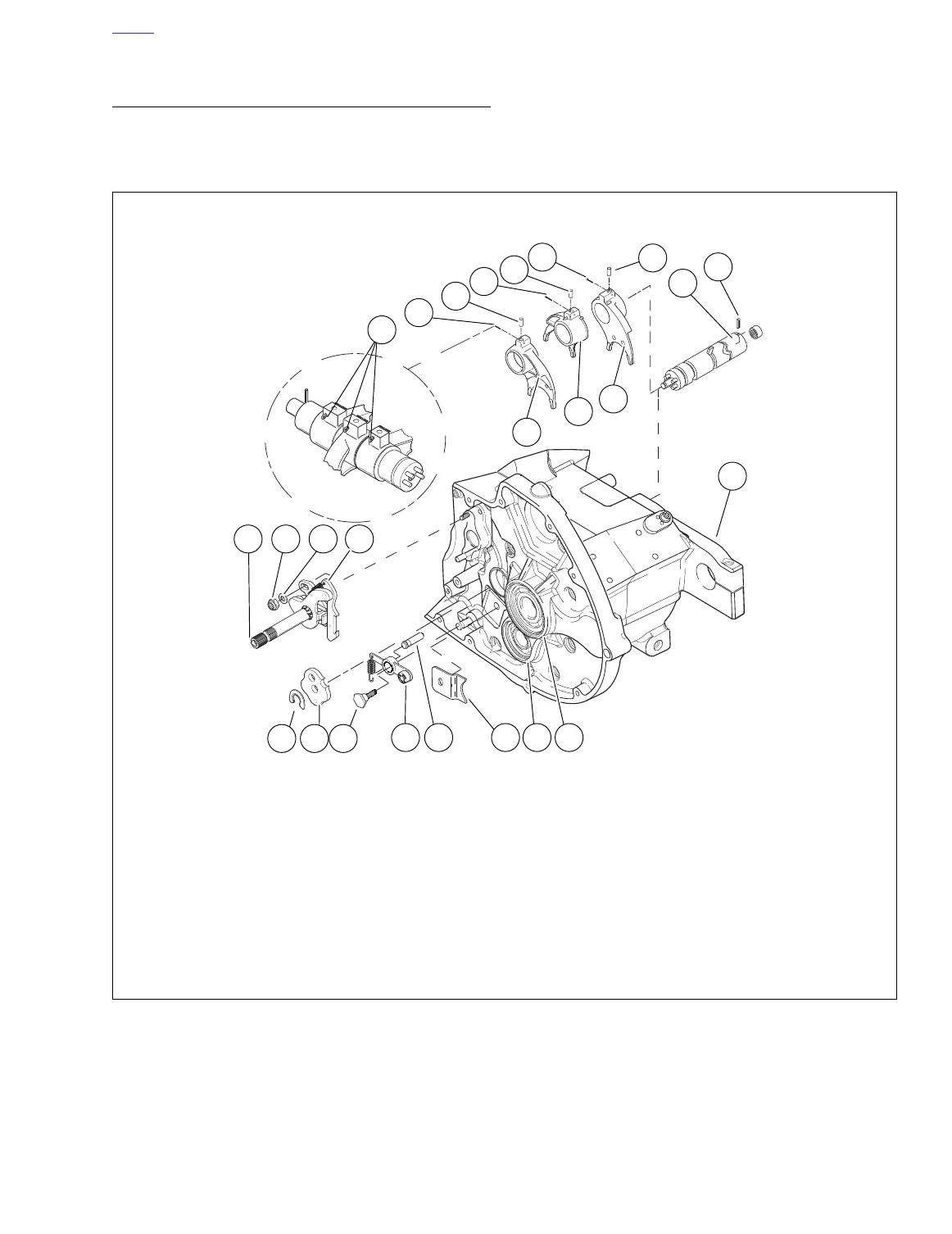

Figure 6-30. Shifter Mechanism
1. Right crankcase half
2. Mainshaft bearing
3. Countershaft bearing
4. Plate
5. Pin
6. Detent arm
7. Detent screw
8. Detent plate
9. Retaining ring
10. Shifter shaft assembly
11. Locknut (2)
12. Washer (2)
13. Shifter pawl
14. Cotter pin (3)
15. Shifter fork pin (3)
16. Shifter fork 4th gear
17. Shifter fork 1st & 2nd gear
18. Shifter fork 3rd & 5th gear
19. Shifter fork drum
20. Neutral indicator pin
