2007 Buell P3: Electrical 7-15
HOME
REMOVAL
1. Remove seat. See 2.28 SEAT.
11WARNING1WARNING
To prevent accidental vehicle start-up, which could
cause death or serious injury, disconnect negative (-)
battery cable before proceeding. (00048a)
2. Disconnect negative battery cable from battery terminal.
3. Remove four screws and washers to detach windscreen
from mounting brackets. See 2.26 WINDSCREEN.
4. See Figure 7-14. Cut cable tie and disconnect ignition
key switch connector [33] from main wiring harness.
Note location of cable tie.
5. Remove two headlight bucket bolts and headlamp
bucket. See 7.17 HEADLAMP.
6. Remove two bolts and ignition key switch.
INSTALLATION
1. Apply Loctite 243 (blue) to threads of two ignition key
switch bolts.
2. Install ignition key switch into hole and secure with two
bolts. Tighten bolts to 48-72 in-lbs (5-8 Nm).
3. See Figure 7-14. Attach ignition key switch connector
[33] to main wiring harness. Secure harness with cable
tie.
4. Install headlight bucket with two bolts. Tighten bolts to
12-14 ft-lbs (16-19 Nm).
5. Cable tie ignition key switch connector [33] to main wiring
harness.
6. Install four screws and washers to attach windscreen to
mounting brackets. See 2.26 WINDSCREEN.
7. Install negative battery cable to battery terminal. Tighten
fastener to 72-96 in-lbs (8-11 Nm).
After installing seat, pull upward on front of seat to be
sure it is in locked position. While riding, a loose seat can
shift causing loss of control, which could result in death
or serious injury. (00070a)
8. Install seat. See 2.28 SEAT.
Be sure that all lights and switches operate properly
before operating motorcycle. Low visibility of rider can
result in death or serious injury. (00316a)
9. Check ignition key switch for proper operation. If opera-
tion fails, reread procedure and verify that all steps were
performed.
a. Turn ignition key switch to OFF. Check all functions
listed in Table 7-12.
b. Turn ignition key switch to IGN. Start motorcycle.
See Section 4.
c. Turn ignition key switch to LOCK.

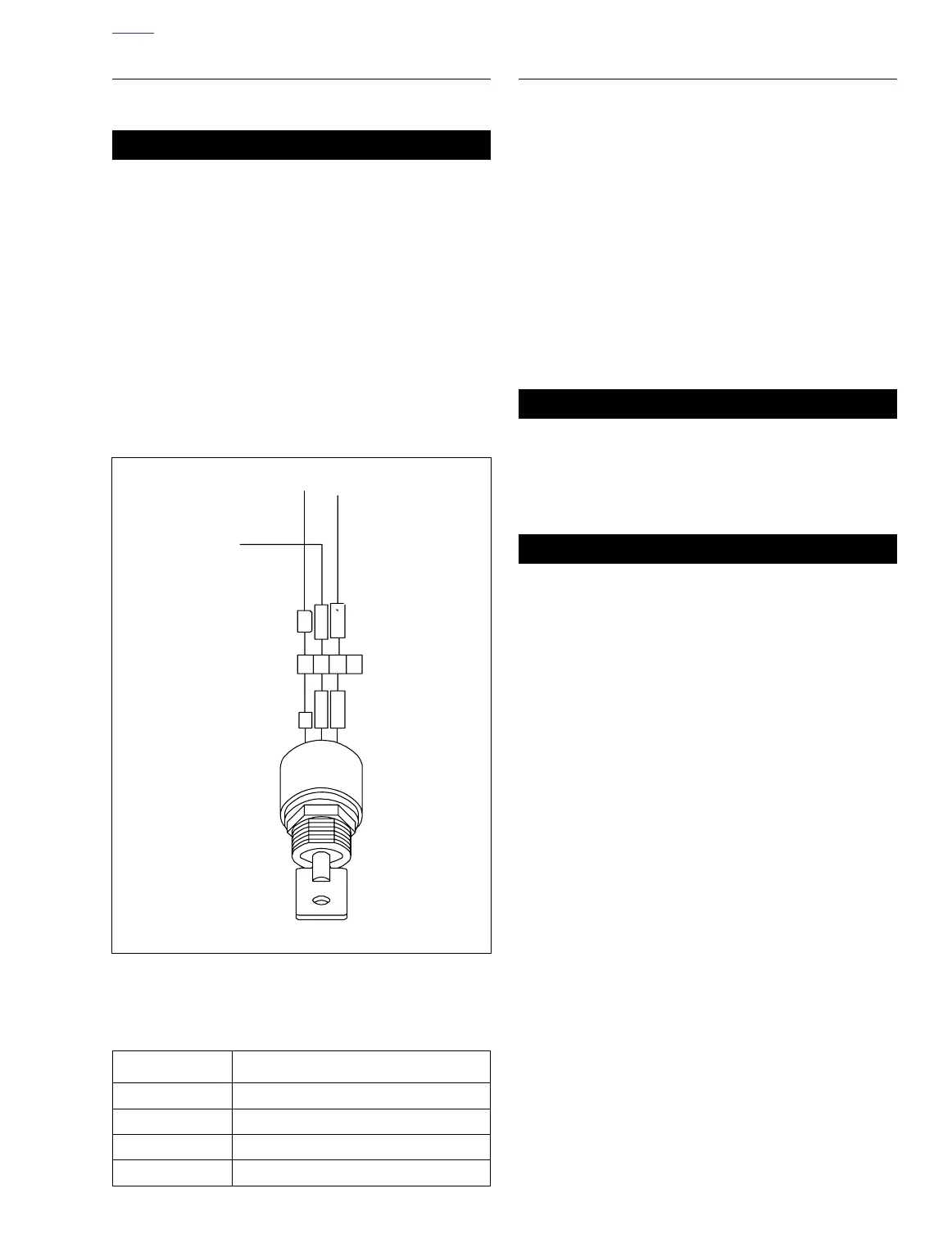

Figure 7-14. Ignition Key Switch Connector [33]
Table 7-14. Ignition Switch Connector [33]
[33] WIRE TERMINATION
A Master Circuit Breaker
B Accessories Fuse in Fuse Block
C Ignition Fuse in Fuse Block
D Empty
/BRK
R
/BR
R
K
/
RGY
A
B
C
D
/
RGY
a0284x7x
