2007 Buell P3: Engine 3-27
HOME

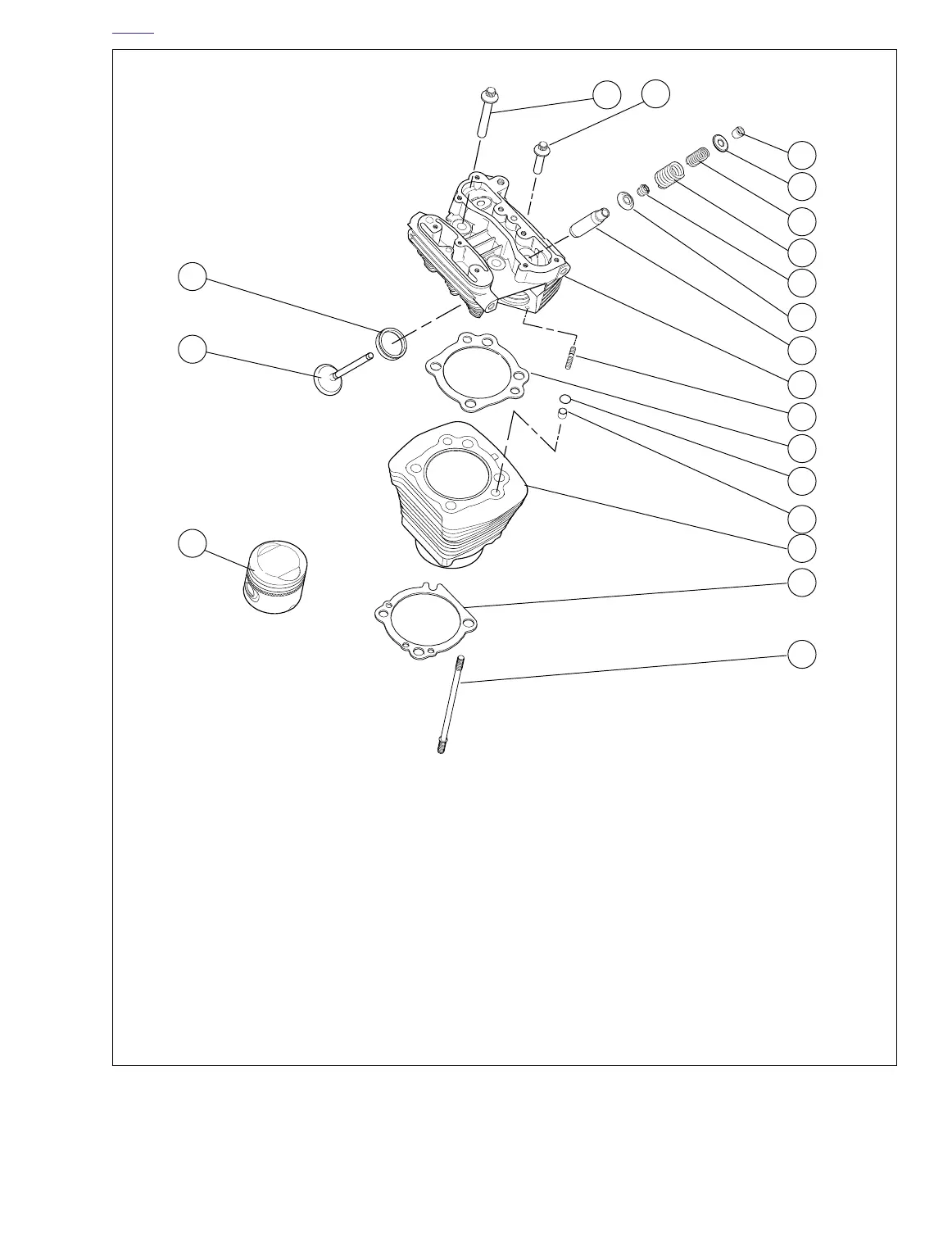

Figure 3-49. Cylinder Head, Cylinder and Piston Assembly
1. Screw
2. Screw
3. Valve collar retainer
4. Upper valve spring collar
5. Inner valve spring
6. Outer valve spring
7. Valve seal
8. Lower valve spring collar
9. Valve guide intake & exhaust (2)
10. Cylinder head
11. Exhaust port stud
12. Cylinder head gasket
13. Cylinder o-ring (4)
14. Cylinder insert
15. Cylinder w/piston & rings
16. Cylinder base gasket
17. Cylinder base stud
18. Exhaust valve
19. Exhaust valve seat
1
2
a0021x3x
3
4
5
6
7
8
9
10
11
12
13
14
15
18
19
15
16
17
