5-18 2007 Buell P3: Electric Starter
HOME

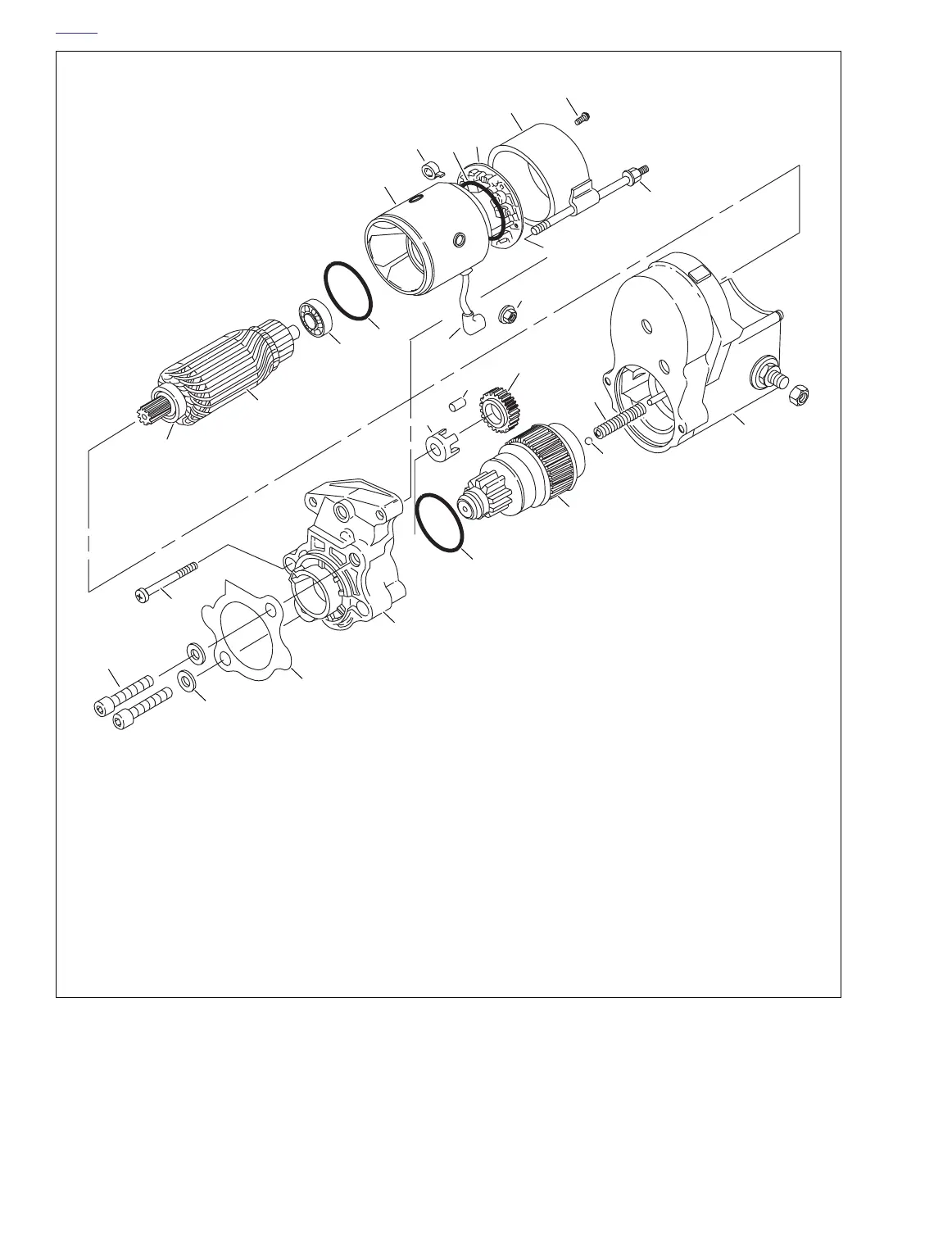

Figure 5-26. Starter Assembly
a0196x5x
12
13
15
16
17
18
22
24
14
19
21
20
23
10
11
10
5
1
5
4
8
9
2
3
6
7
1. Thru-bolt (2)
2. End cover screw and o-ring (2)
3. End cover
4. Brush holder
5. O-ring (2)
6. Brush spring (4)
7. Field frame
8. Field wire nut with washer (metric)
9. Field wire
10. Armature bearing (2)
11. Armature
12. Mounting bolt (2)
13. Washer (2)
14. Drive housing mounting bolt
15. Gasket
16. Drive housing
17. O-ring
18. Drive assembly/overrunning clutch
19. Idler gear bearing cage
20. Idler gear roller (5)
21. Idler gear
22. Ball
23. Return spring
24. Solenoid housing
