2007 Buell P3: Drive/Transmission 6-11
HOME

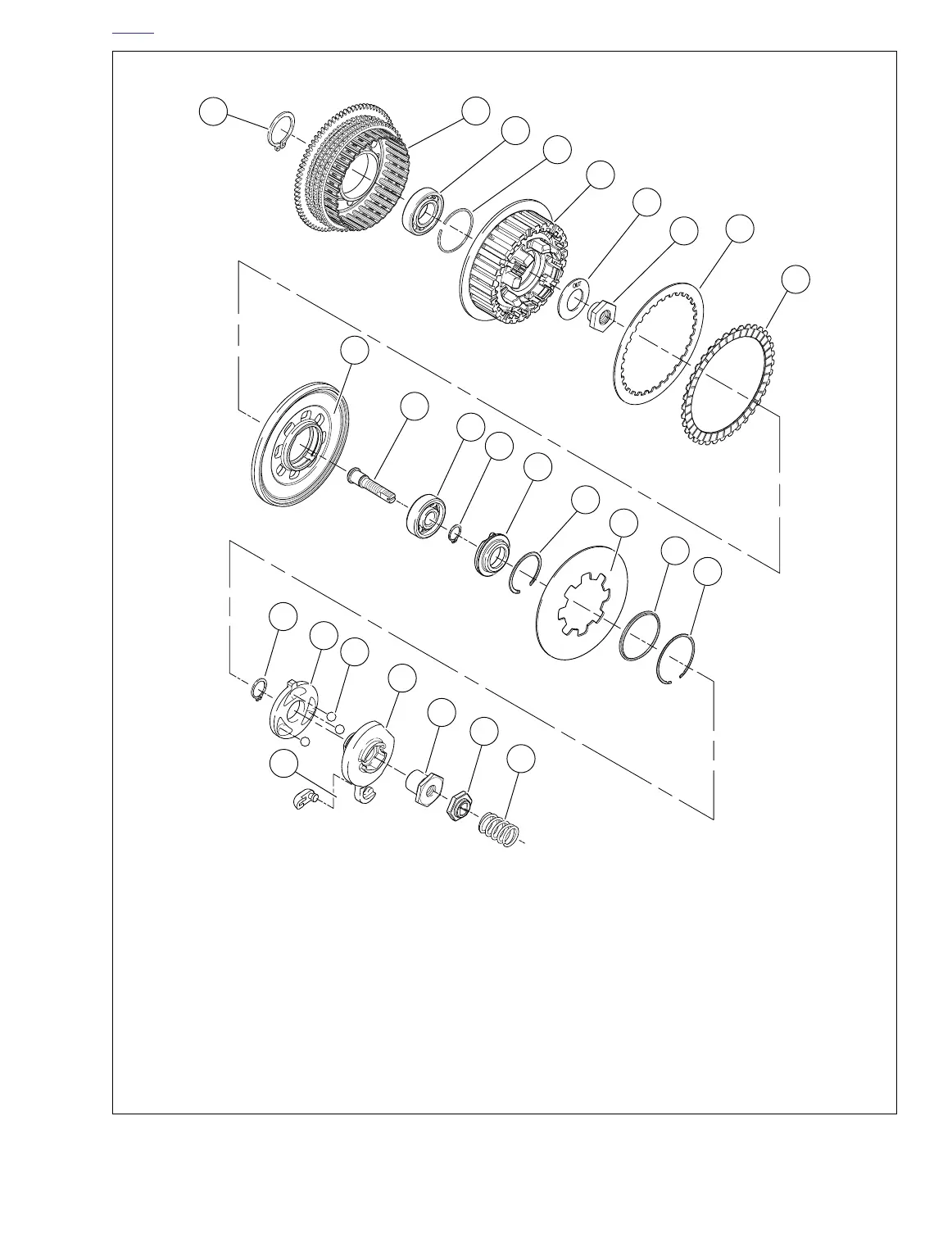

Figure 6-14. Clutch Assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
19
20
21
22
23
24
25
26
a0114x6x
1. Spring
2. Lockplate
3. Nut
4. Outer ramp
5. Ball (3)
6. Inner ramp
7. Retaining ring
8. Coupling
9. Retaining ring
10. Spring seat
11. Diaphragm spring
12. Retaining ring
13. Release plate
14. Retaining ring
15. Bearing
16. Adjusting screw
17. Pressure plate
18. Friction plate (paper) (5)
19. Steel plate (5)
20. Mainshaft nut
21. Washer, labeled “out”
22. Clutch hub
23. Retaining ring
24. Bearing
25. Clutch shell and sprocket
26. Retaining ring
18
