2007 Buell P3: Drive/Transmission 6-35
HOME

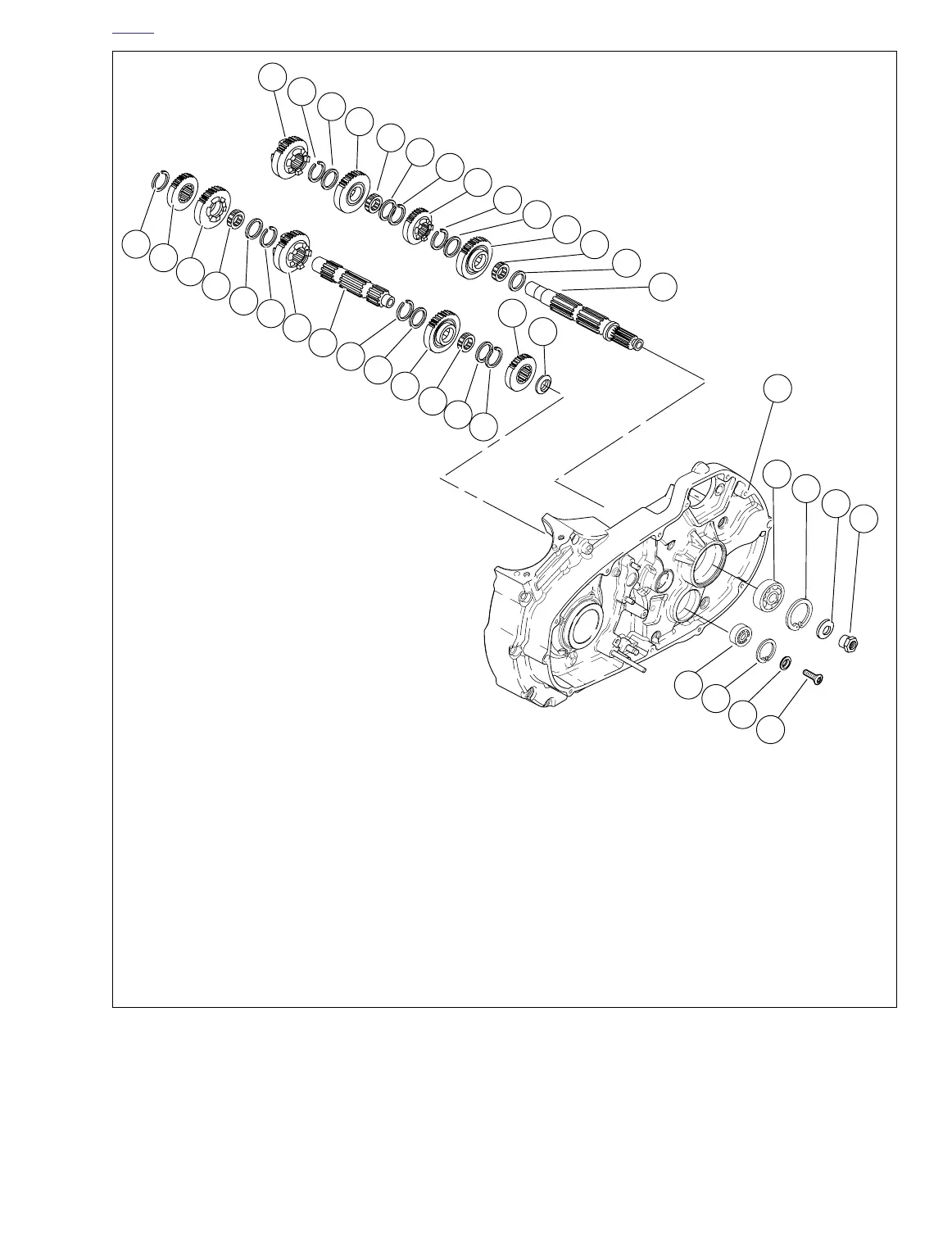

Figure 6-49. Transmission Assembly Left Crankcase Half
1. Mainshaft nut
2. Spring washer
3. Retaining ring
4. Bearing
5. Left crankcase half
6. Mainshaft
7. Spacer
8. Bearing (4)
9. 4th gear mainshaft
10. Thrust washer (6)
11. Retaining ring (7)
12. 1st gear mainshaft
13. 3rd gear mainshaft
14. 2nd gear mainshaft
15. Spacer
16. 4th gear countershaft
17. 1st gear countershaft
18. Countershaft
19. 3rd gear countershaft
20. 2nd gear countershaft
21. 5th gear countershaft
22. Bearing
23. Retaining ring
24. Countershaft retainer
25. Screw
a0126x6x
15
5
4
3
2
1
22
23
24
25
11
10
11
21
20
8
10
11
19
18
11
10
17
8
14
11
10
13
8
10
11
11
10
9
8
7
12
16
6
