7-8 2007 Buell P3: Electrical
HOME

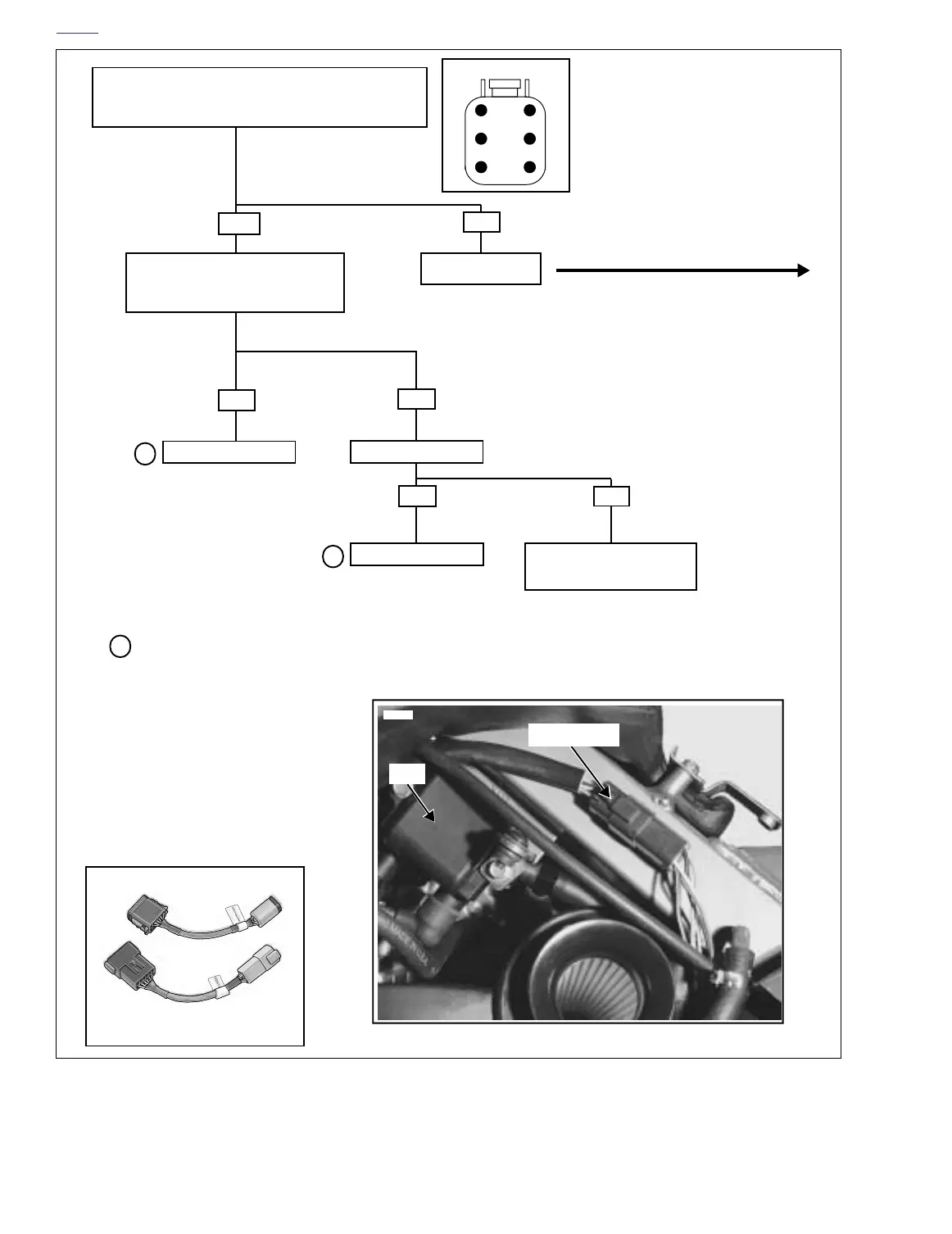

Figure 7-6. No Spark At Spark Plug
1
2
3
4
5
6
• Ignition On, Sidestand Up, transmission in Neutral
• Measure Voltage At Breakout Box- Multimeter Red Lead To LT GN/
GY (Pin 5) (+) and Black Lead To BK (Pin 6) (-).
Is voltage 0.6-0.8 VDC?.
YES
NO
Go to Next Page. Begin
at top.
Remove Timer Cover (See Ignition Module/
Cam Position Sensor for procedure).
Crank Engine.
Is LED Flashing?
NO
Is Rotor Cup Rotating?
Replace Ignition Module.
YES
YES
NO
Replace Ignition Module.
Remove Gearcase Cover.
Inspect For Mechanical Failure.
Repair.
5009
5009
5005
Harness Adapters (HD-42962)
3
3
3
7793
[10]
NOTE
Male connectors are labeled “A”
Female connectors are labeled “B”
Inspect ignition module for signs of
physical contact with rotor cup.
Replace rotor cup if necessary.
Coil
Connector [10]
