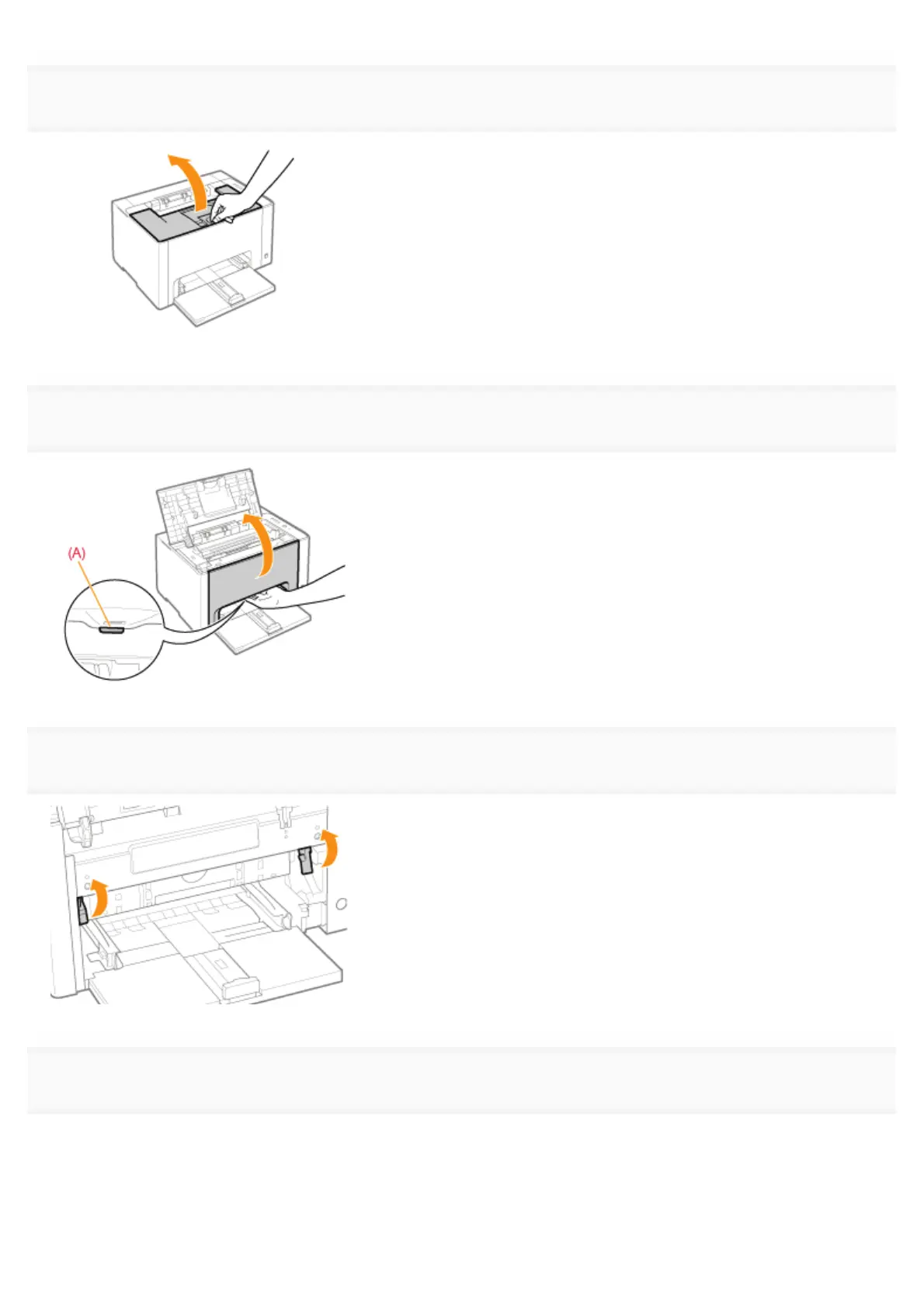

Open the top cover.

Hold the tab (A), and then open the front cover.

Lift the lock release lever on both sides.

Remove the drum cartridge.
