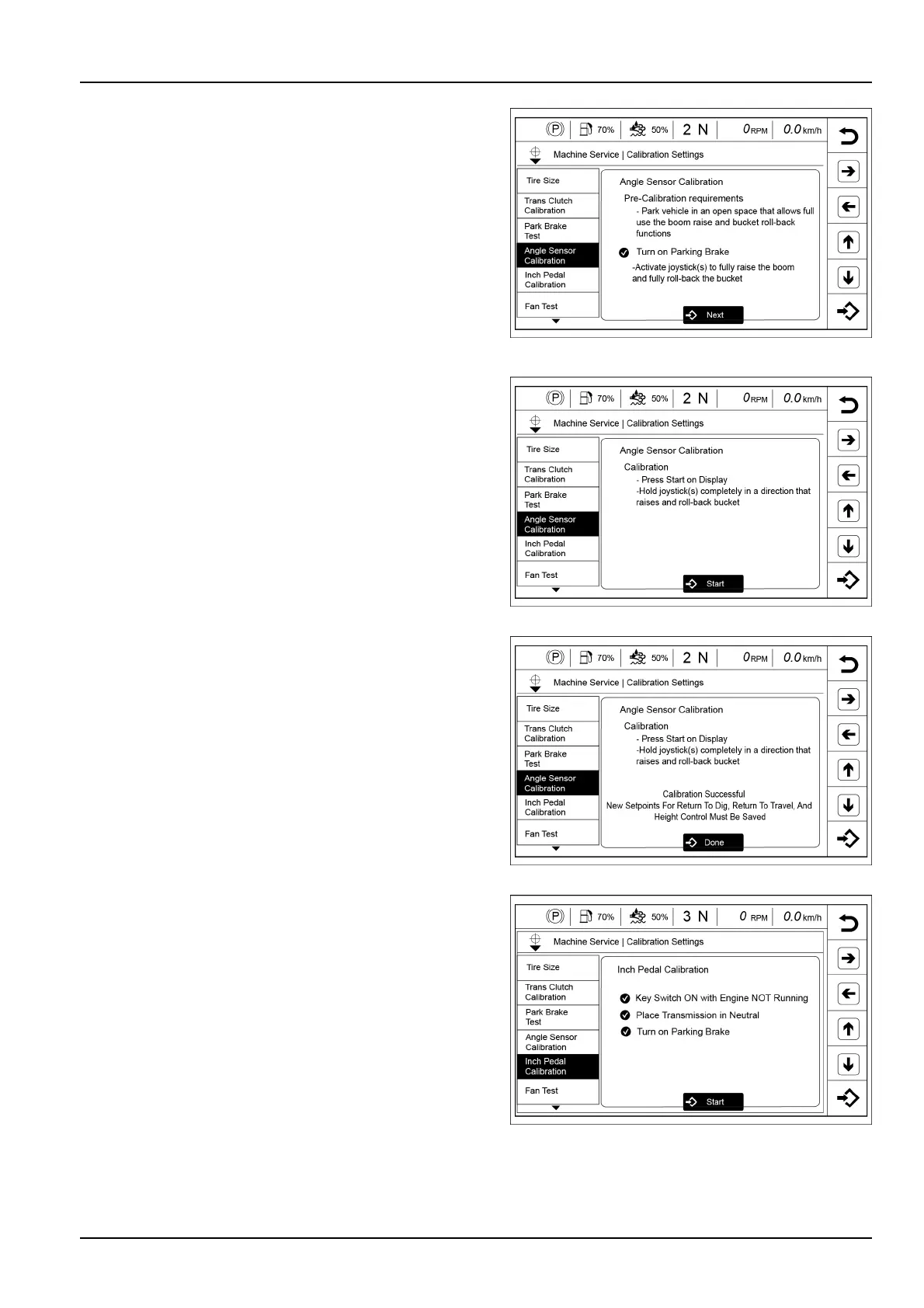

→AnglesensorCalibration
Conditionstobesatisedtostarttheanglesensorcali-
bration:
•
Parkthevehicleinanopenspacethatallowstousethe
boomraiseandbucketroll-backfunctions
•
TurnOnParkingBrake
Activatethejoystick(s)tofullyraisetheboomandfully
roll-backthebucket.
Select“Next”toproceedwiththeanglesensorcalibration
procedure.
LEIL17WHL1055AA68
→AnglesensorCalibration
Select“Start”toproceedwiththeanglesensorcalibration
procedure.
Holdjoystick(s)completelyinadirectionthatraisesand
roll-backbucket.
LEIL17WHL1056AA69
→AnglesensorCalibration
CalibrationSuccessful
NewsetpointsforReturn-to-dig,Return-to-traveland
HeightControlmustbesaved
Select“Done”toexit.
LEIL17WHL1057AA70
→InchPedalCalibration(5speedonly)
Conditionstobesatisedtostarttheinchpedalcalibra-
tion:
•
KeySwitchONwithEngineNOTRunning
•
PlaceTransmissioninNeutral
•
TurnOnParkingBrake
Select“Start”toproceedwiththeinchpedalcalibration.
LEIL17WHL1638AA71
