Case 621G - Status and Warning Icons

3-CONTROLSANDINSTRUMENTS

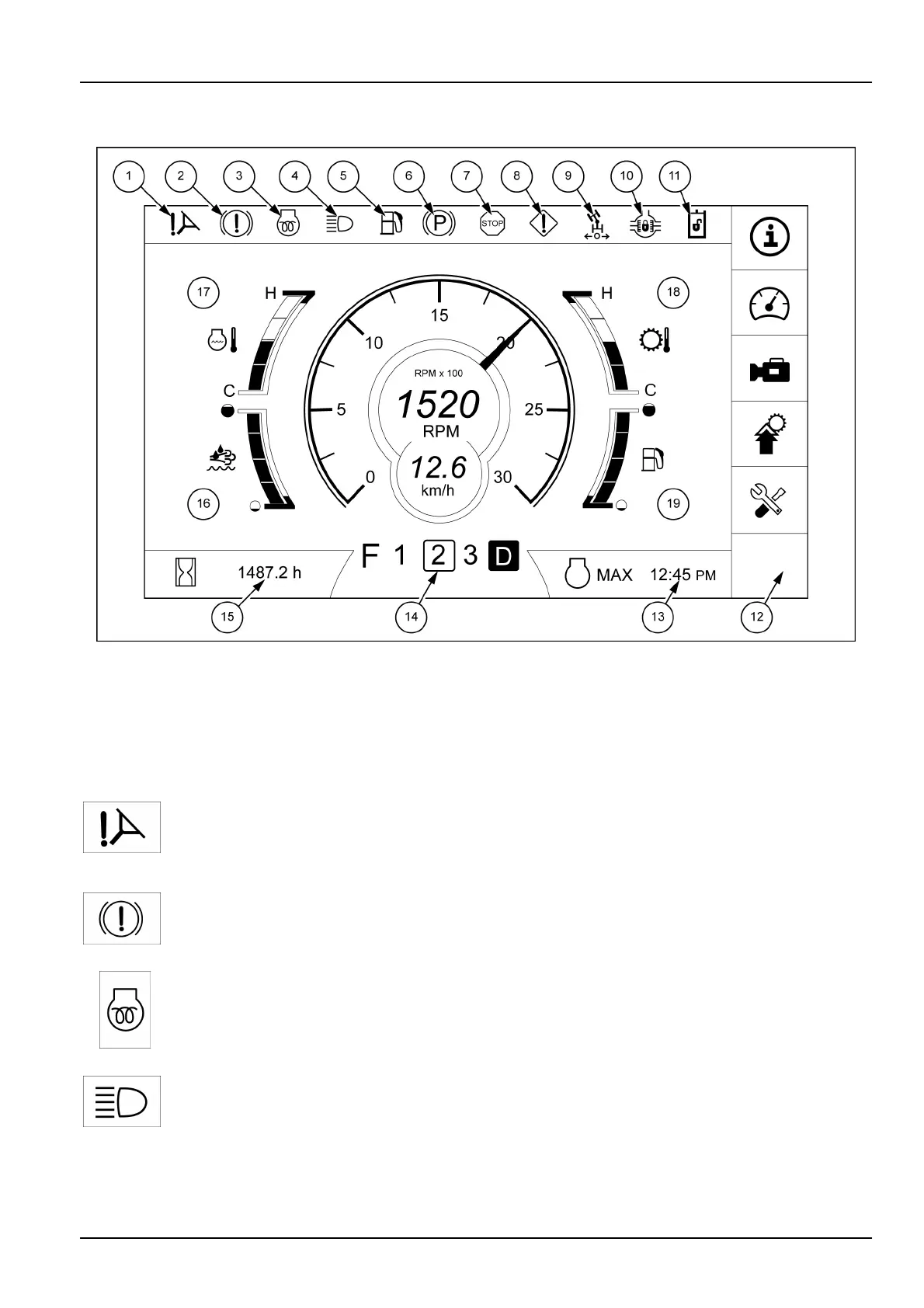

Statusandwarningicons
LEIL15WHL0519FB1
Indicators
ThemultifunctiondisplaywillcheckeachmonitoredsystemwhenyouturnthekeyswitchtotheONposition.Alllights
willilluminate,andthewarningalarmwillsoundfor3s.Attheendofthischeckallmonitoredsystemswillreturn
tonormaloperation.Ifthereisanopencircuitbetweenasensorandthemultifunctiondisplayonsomecircuits,the
lightswillashandthewarningalarmwillsoundfor5s.
1.Secondarysteeringpressure(ifequipped,red)
Thisindicatorilluminateswhentheprimarysteeringsystempressureistoolow.Thealarmsounds
continuouslyandthestopmasterindicatorturnsred.
Ifthissituationoccurs,stopthemachineimmediatelyandcontactyourdealer.
2.Brakepressureindicator(red)
Theindicatorilluminateswhenthebrakesystempressureistoolow.Thealarmsoundscontinuously,
andthestopmasterindicatorwillbered.Stopthemachine,andcorrecttheproblem.
3.Enginegridheaterlampindicator(ifequipped,orange)
Tostarttheengine,turnthekeyswitchtotheONposition.Theindicatorilluminateswhentheengine
gridheaterisoperating.WaituntiltheindicatorlightgoesOFFbeforemovingthekeyswitchtothe
STARTpositiontostarttheengine.Theindicatorlightmaycomeonagainduringcrankingandshortly
aftertheenginestartsforpostheatingoftheair.
4.Highbeamlampindicator(blue)
TheindicatorilluminateswhenthedrivinghighbeamlampsareON.
3-71
