3-CONTROLSANDINSTRUMENTS

Display

Displaydescription

LCDmultifunctiondisplay

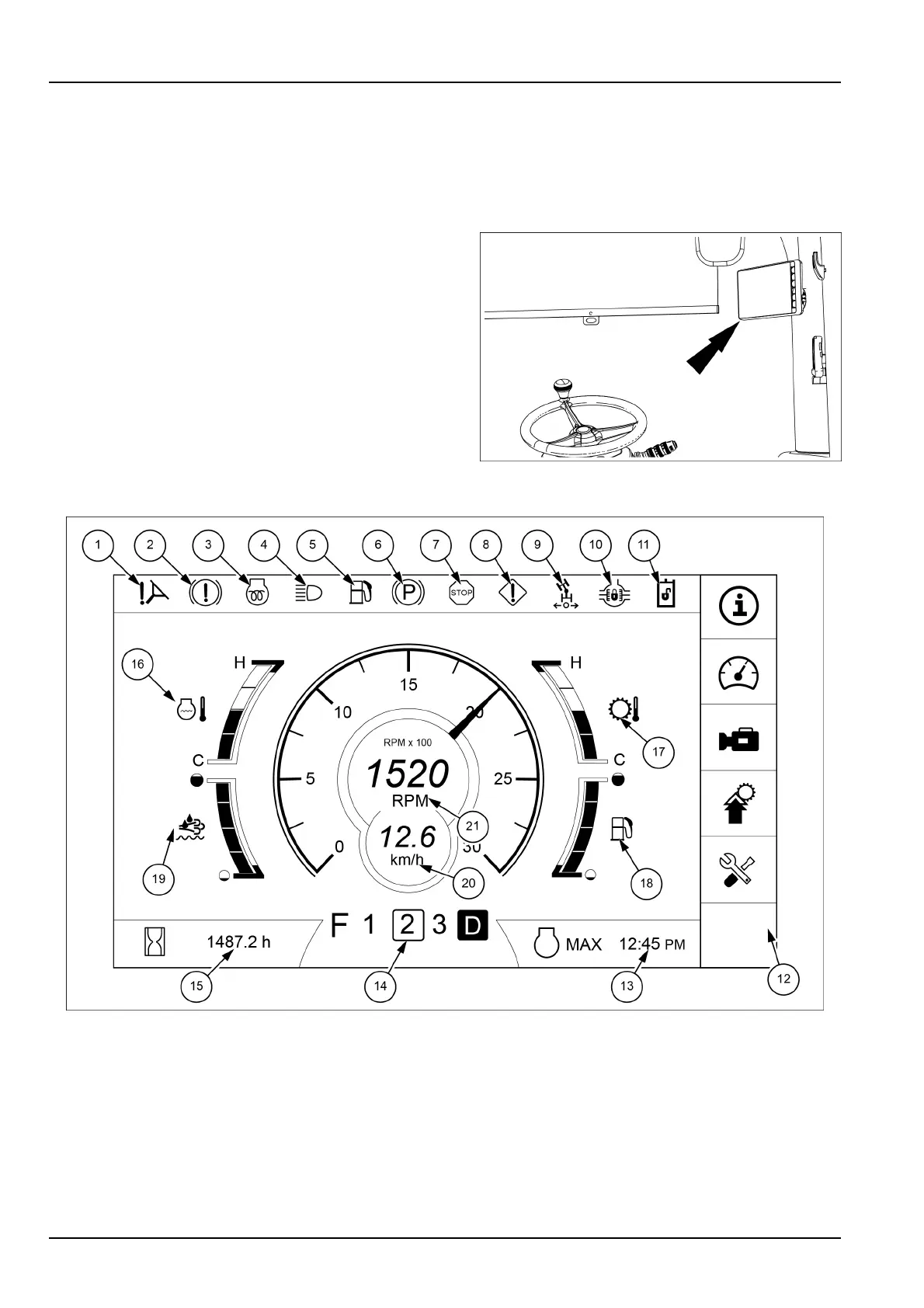

TheLiquidCrystalDisplay(LCD)multifunctiondisplayis

locatedabovethemultifunctionkeypad.

InformationwillbedisplayedontheLCDasdirectedby

theoperatororautomaticallybymachineoperations.The

screenofferspromptstoassisttheoperatorwhenpro-

grammingmachinefunctionsand/orperformingdiagnos-

tics.
