Windows

Windowlever

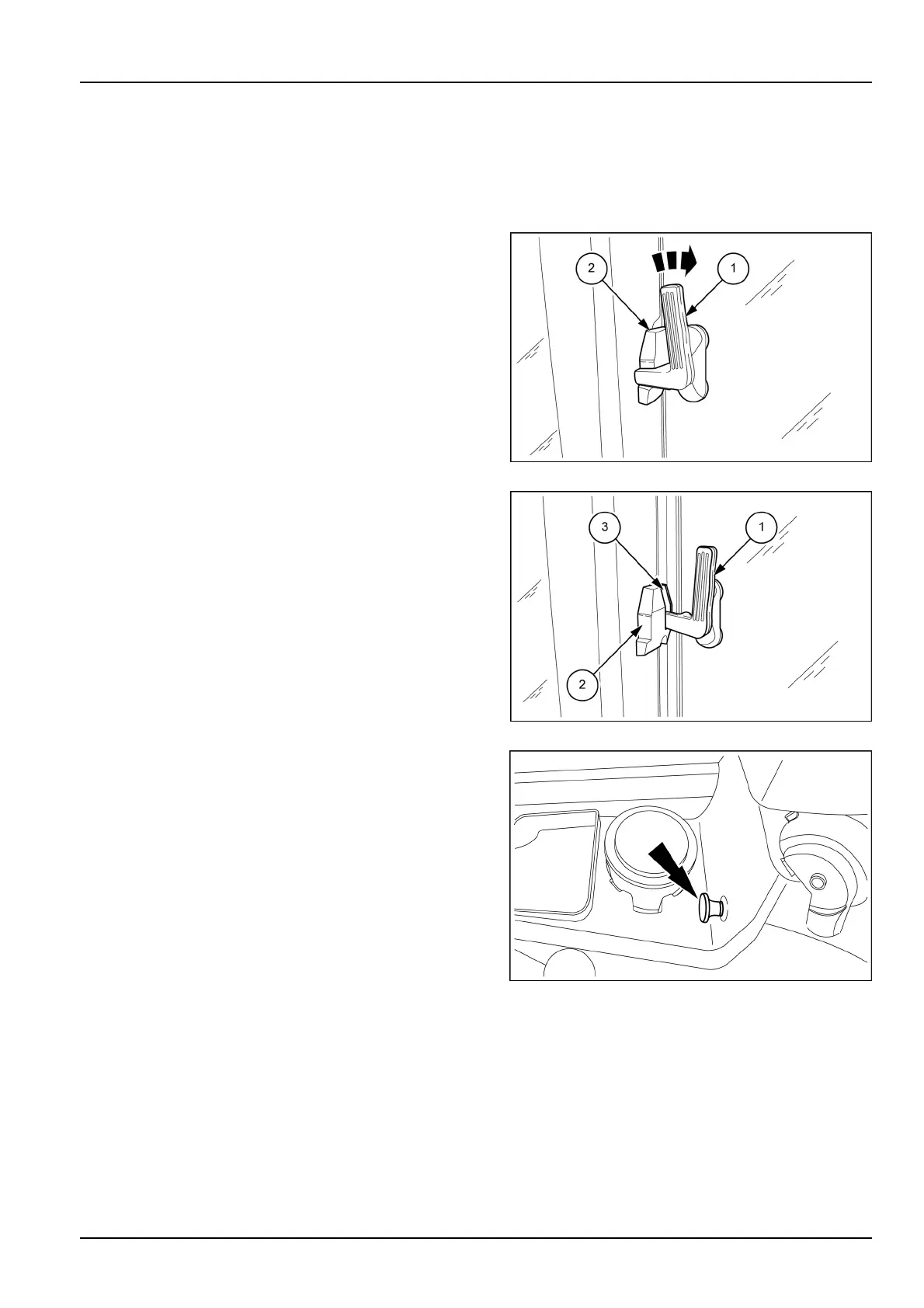

Toopenthewindow,turnthelever(1)uptoreleaseitfrom

theblockretainer(2).

Tokeepthewindowwideopen,swingthewindowuntilit

locksagainstthecab.

LEIL15WHL0539AB1

Youcankeepthewindowpartiallyopenbyinsertingthe

lever(1)withintheslot(3)ontheblockretainer(2).

LEIL15WHL0540AB2

Toreleasethewindowfromthefullopenposition,pullon

thewindowreleaseintheright-handrearcornerofthe

cab.

LEIL15WHL0541AA3

3-85
