Case 621G - Pedal Controls

3-CONTROLSANDINSTRUMENTS
Pedalcontrols

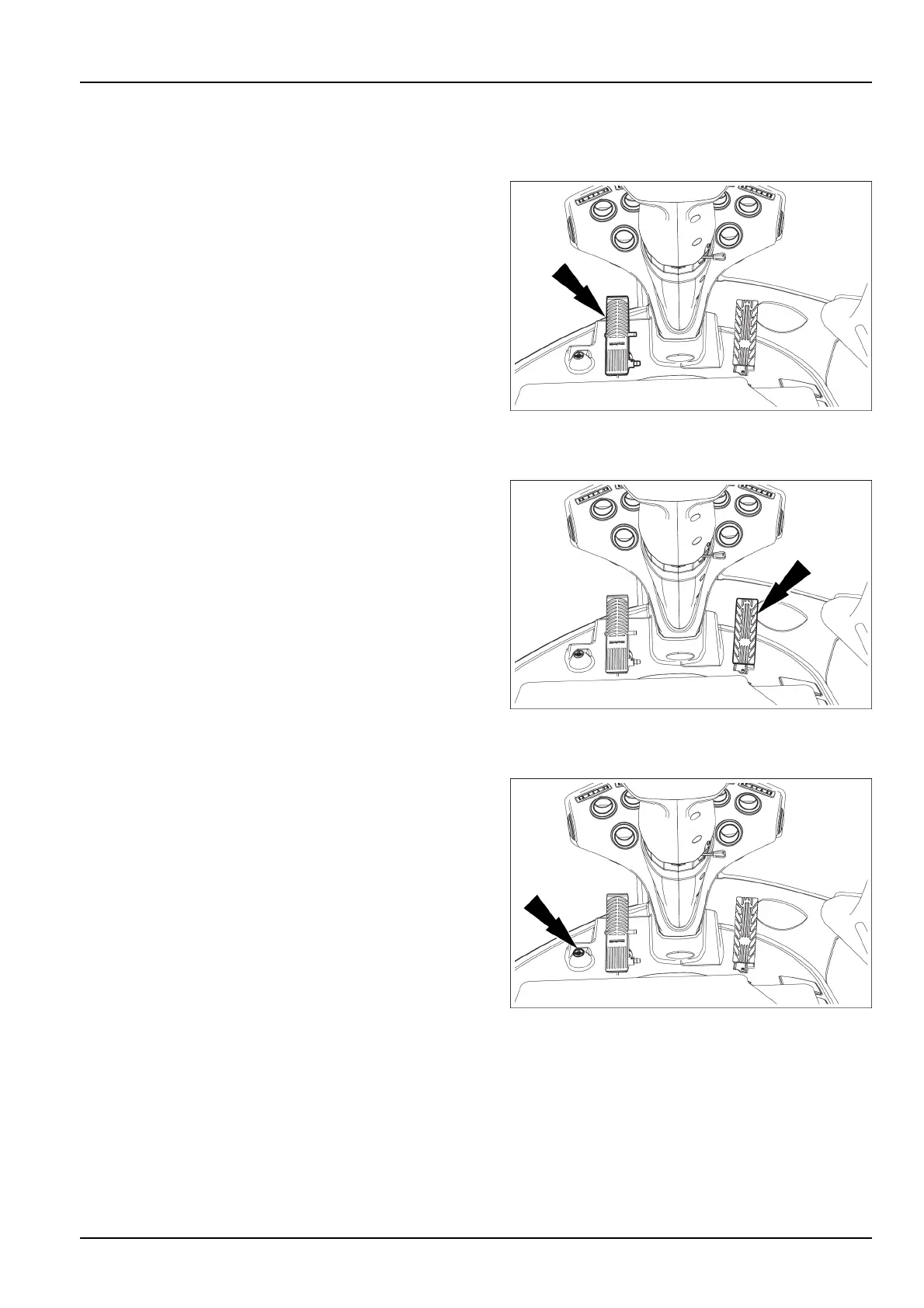

Brakepedal
Whenpushed,thebrakepedalactuatesthemachine
brakes.
NOTE:thepedalworksinconjunctionwiththetransmis-
sionDeclutchswitchorPowerinchformoreefcientbrak-
ing.See“Loaderfunctions–Declutchswitch"–Chapter
4inthismanualforfurtherinformation.
NOTICE:onsteepslopes,usethedownshiftmodeof
thetransmissiontoaidbrakingandtohelppreventbrake
overheatingandprematurediscwear.
NOTE:whenthemachineisshutoff,theparkingbrakeis
automaticallyset.
LEIL16WHL1556AB1
FootThrottle
Pushthefootthrottletoincreasetheenginespeed.When
thepedalisreleasedtheenginerunsatlowidle.
LEIL16WHL1557AB2
Differentiallock(Optional)
Depressthedifferentiallockfootswitchtolockthefront
axledifferential.Releasetheswitchtounlockthediffer-
ential.
LEIL16WHL1558AB3
