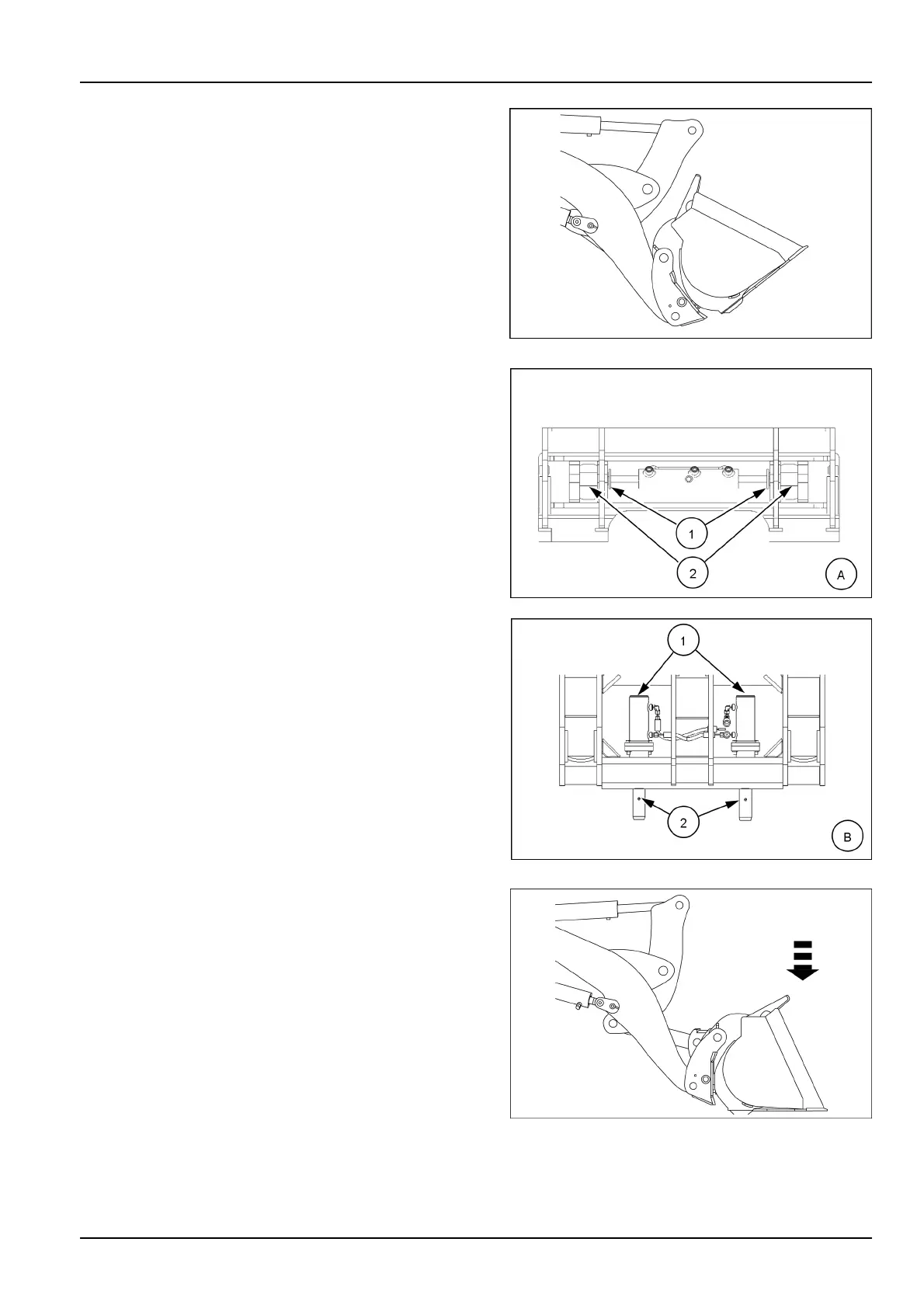

6-WORKINGOPERATIONS

4.Rollbackthecouplerwithattachmenttoaligntheat-

tachmentpinholeswithcouplerlockingpins.

LEIL15WHL1831AA3

5.Pressthecouplerengagementbuttontoextendthe

lockingpins.Oncethelockingpinsarefullyextended,

theredlightgoesoutandthegreenlightturnson.

Seegure(A)forJRBcompatiblecouplerorgure(B)

forACScompatiblecoupler.

6.Maintainthecouplerinrollbackposition.Positionthe

redcouplerlockingvisualindicators(1)inyourfulleld

ofview.Verifyandensurethecouplerlockingpins(2)

arefullyextended.

LEIL16WHL1339AA4

RAIL12WEL0323BA5

7.Lowertheattachmentandrollthefrontendtoward

theground.Applydownwardpressuretoensurethe

attachmentissecurelylocked.

LEIL16WHL0039AB6

6-7
