1-GENERALINFORMATION

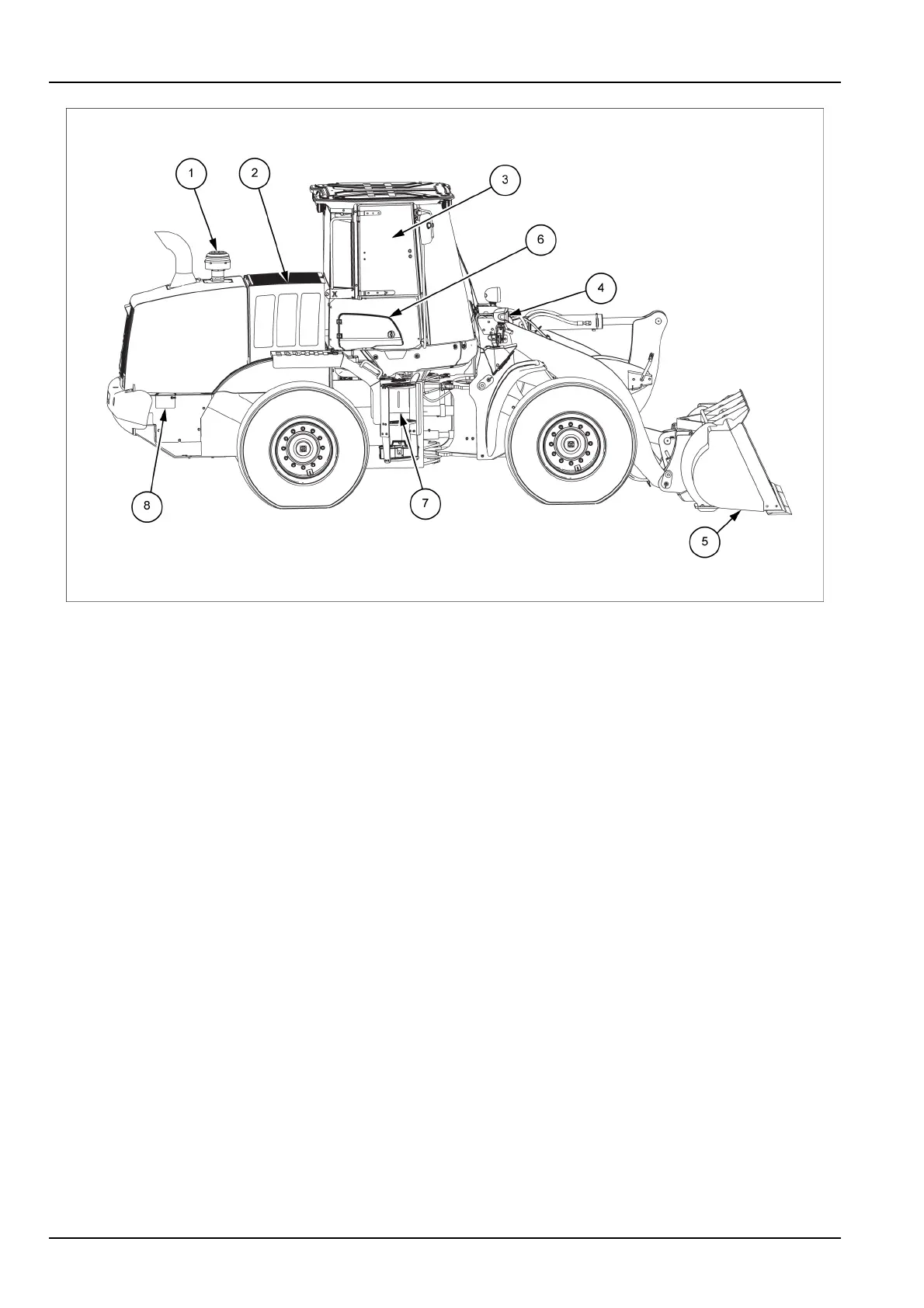

LEIL18WHL0972FB2

1.Pre-cleaner

5.Bucket(Z-barversion)

2.Slidingaccesspanel6.Cabairlterdoor

3.Cabsidewindow

7.Windshieldwasherreservoir

4.Drivinglights

8.DIESELEXHAUSTFLUID(DEF)/ADBLUE®lltank

1-14
