7-MAINTENANCE

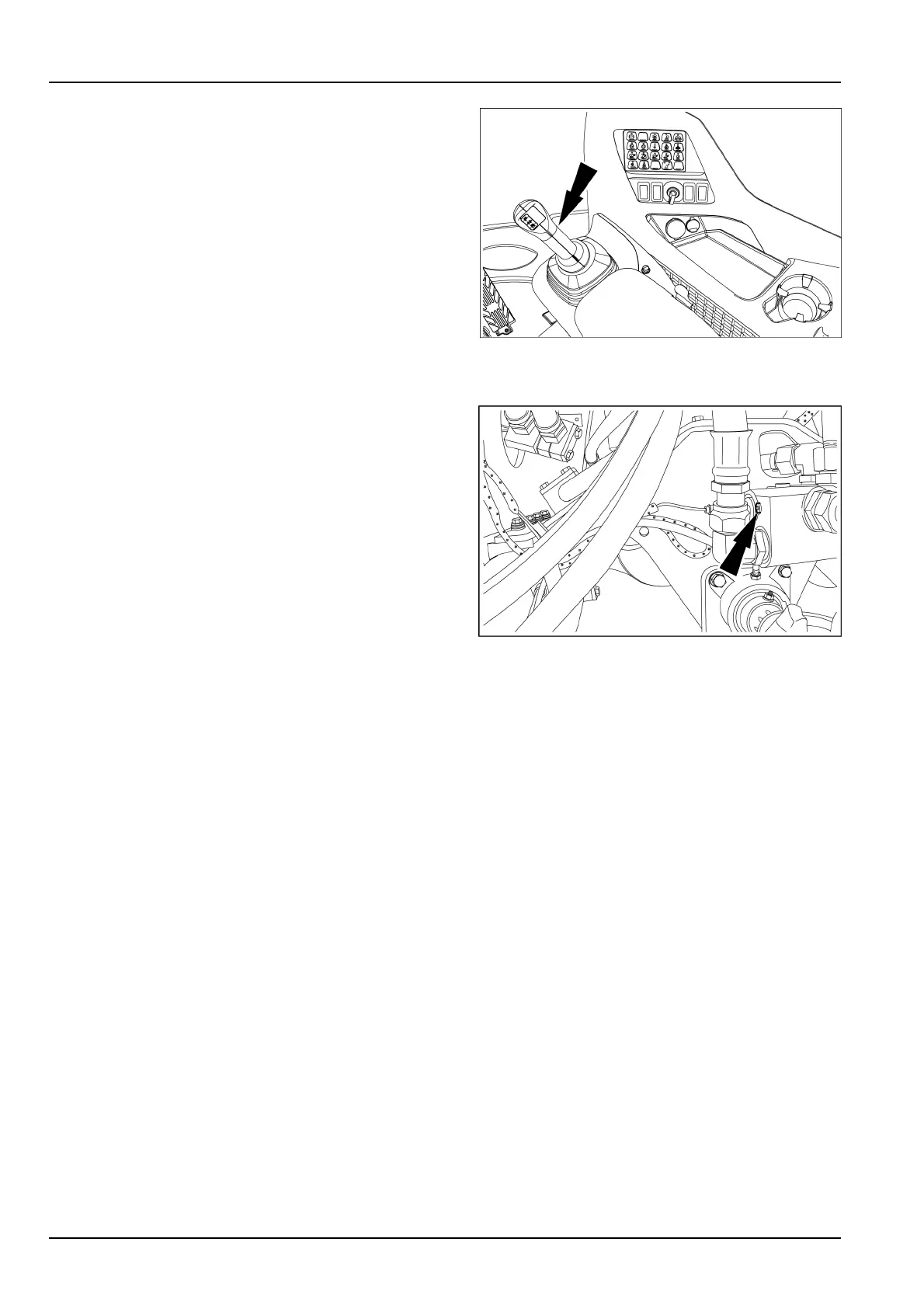

3.Operatethejoystickfromright-handtoleft-handand

fronttorearapproximatelyadozentimes.Turnthe

ignitionkeytotheOFFposition.

4.Pumpthebrakesapproximately30timestobleedthe

accumulators.

LEIL16WHL1286AA2

5.RelievethepressureintheRidecontrolaccumulator

(ifequipped)withthemanualbleedervalvelocatedon

thetopoftheridecontrolvalve.Removetheplugand

turnthevalvetwoturnscounter-clockwise.

NOTICE:beforeanyserviceworkonthehydraulicsys-

tem,allowthehydraulicsystemtocool(thetemperature

shouldnotexceed40°C(104.0°F).

LEIL13WHL1245AB3

7-4
