Case 621G - Page 270

To Next Page

To Previous Page

7-MAINTENANCE

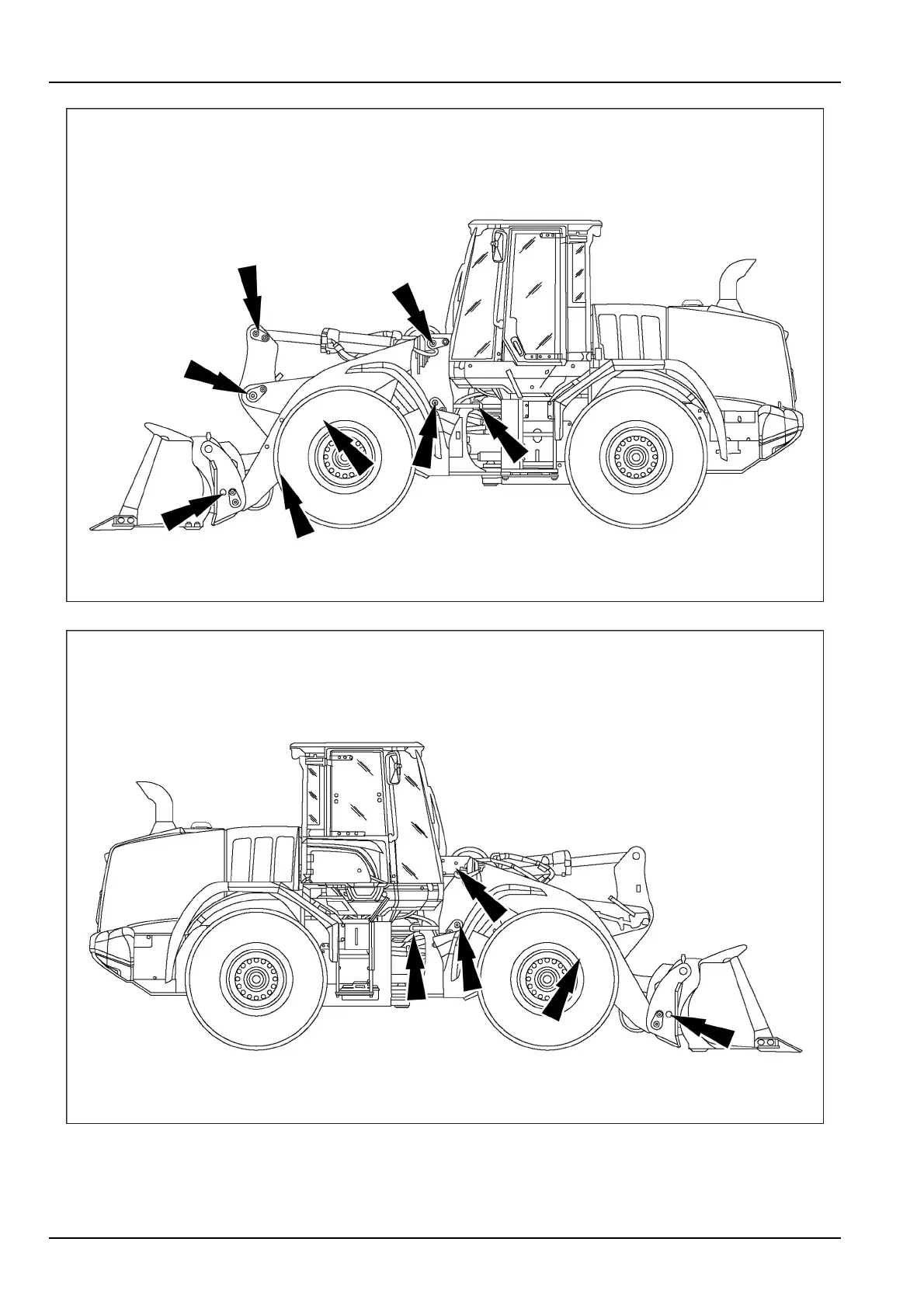

LEIL16WHL0519FA1

LEIL16WHL0520FA2

NOTE:ifequippedwithACScompatiblecoupler,dothefollowing:

–applygreasewithpinsretracted;

–applyadditionalgreasewithpinsextended;

–cyclepinstoensurethoroughdistributionofgrease.

7-62
