7-MAINTENANCE

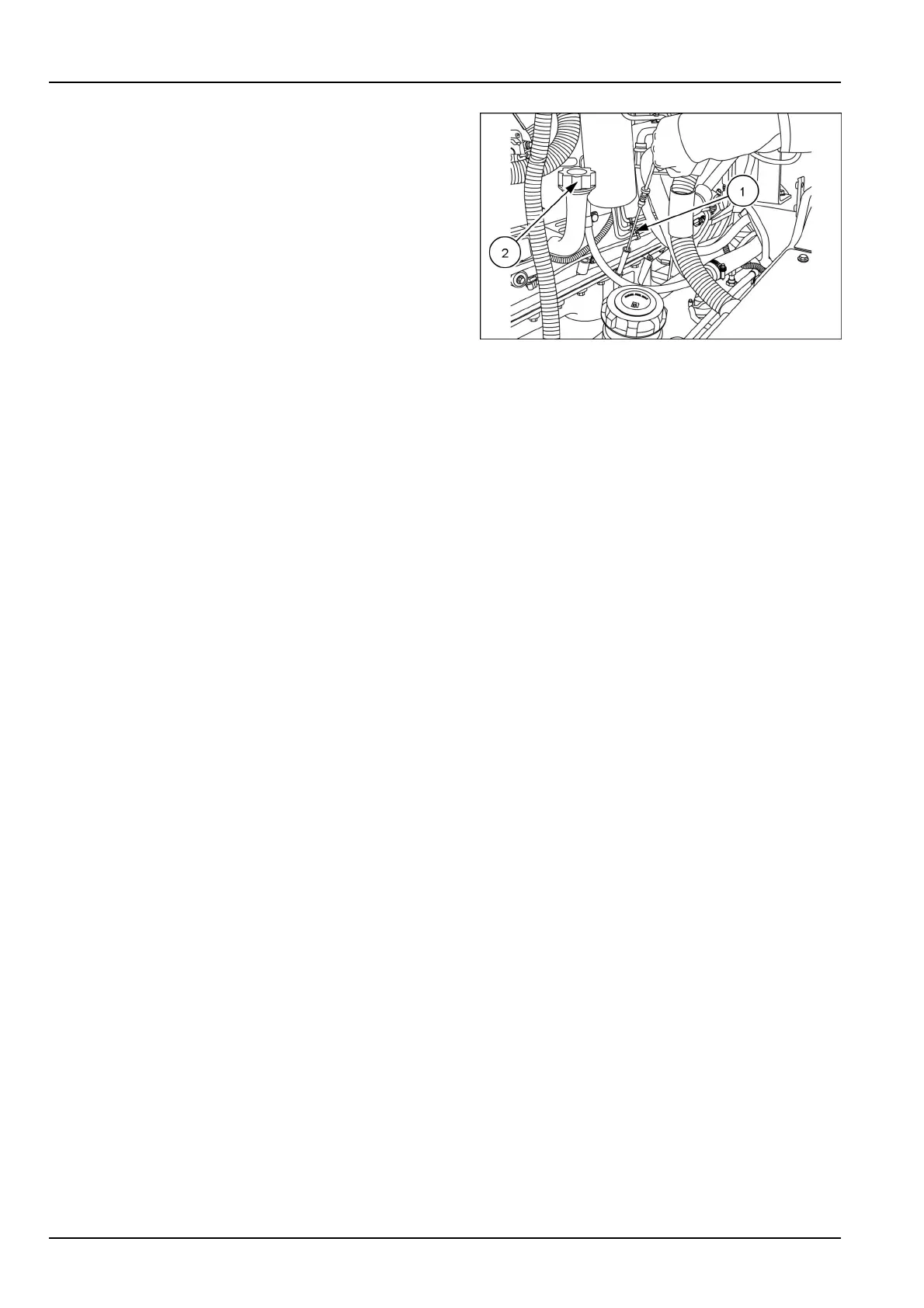

6.FilltheenginewiththeproperamountofCASE

AKCELAUNITEKNO.1™SBLCJ-4throughthell

port(2).

7.Starttheengineandrunatidlespeed.Checktheen-

gineoillterforleak.

8.Aftertwominutesstoptheengine.

9.Waitfortheengineoiltodraindownforanaccurate

readingonthedipstick.

10.Checkthedipstick(1)andaddadditionalCASE

AKCELAUNITEK10W-40,ifnecessary.

11.Securetheenginehood.

RCPH10WHL899AAH4

7-80
