7-MAINTENANCE

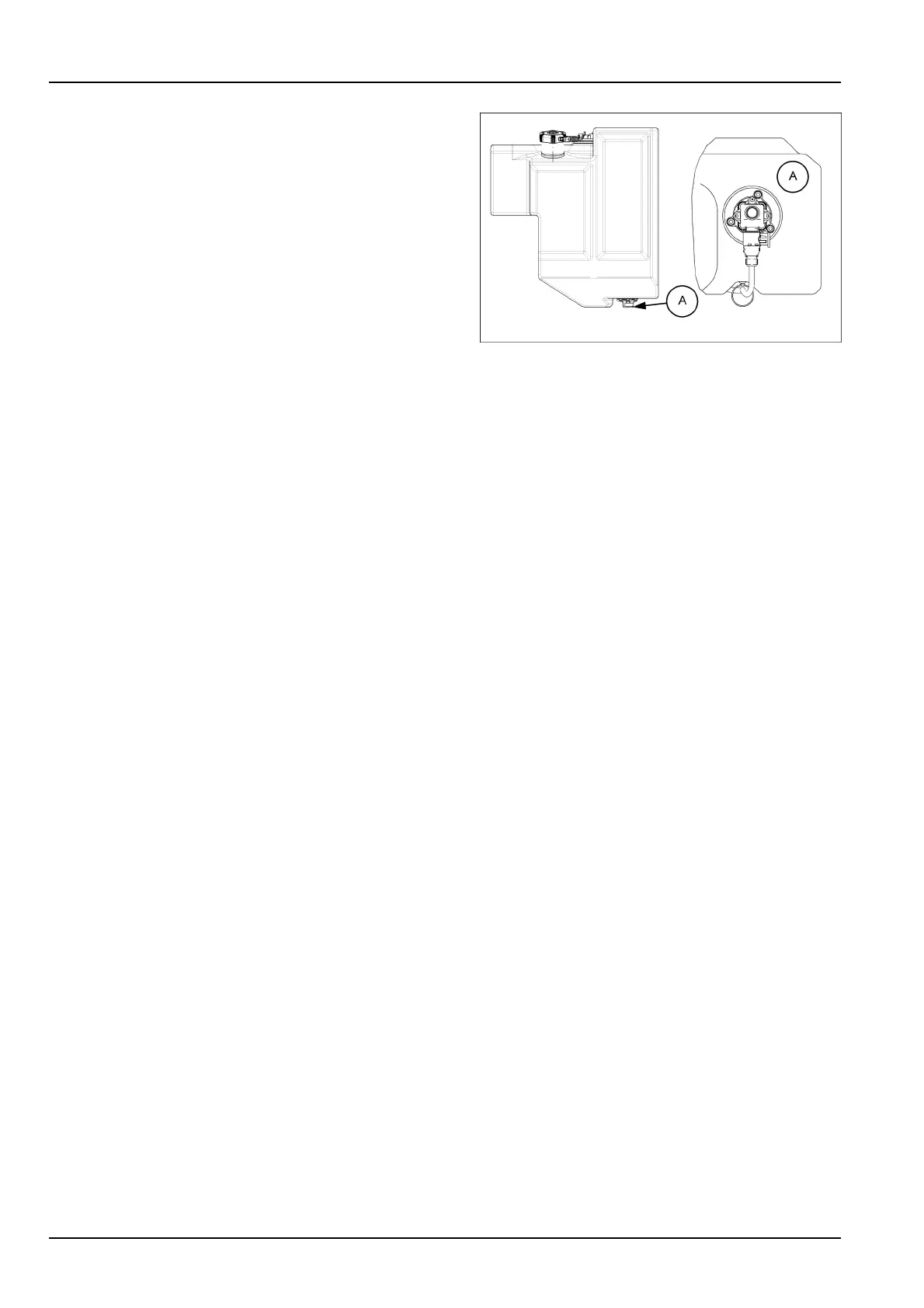

3.PlaceasuitablecontainerbelowtheDEF/ADBLUE®

supplytank.

RemovetheUreaQualitySensor(UQS),allowthe

DEF/ADBLUE®drainthroughtheUQShole.

DisconnectharnessfromtheUQS.Cleananddryhar-

nessterminalsbeforeconnectingtonewUQS.

InstallanewUQS.

NOTE:see“DEF/ADBLUE®tankrelling”sectionforim-

portanttankdraininginformation.

LEIL14WHL0207AB3

7-132
