7-MAINTENANCE

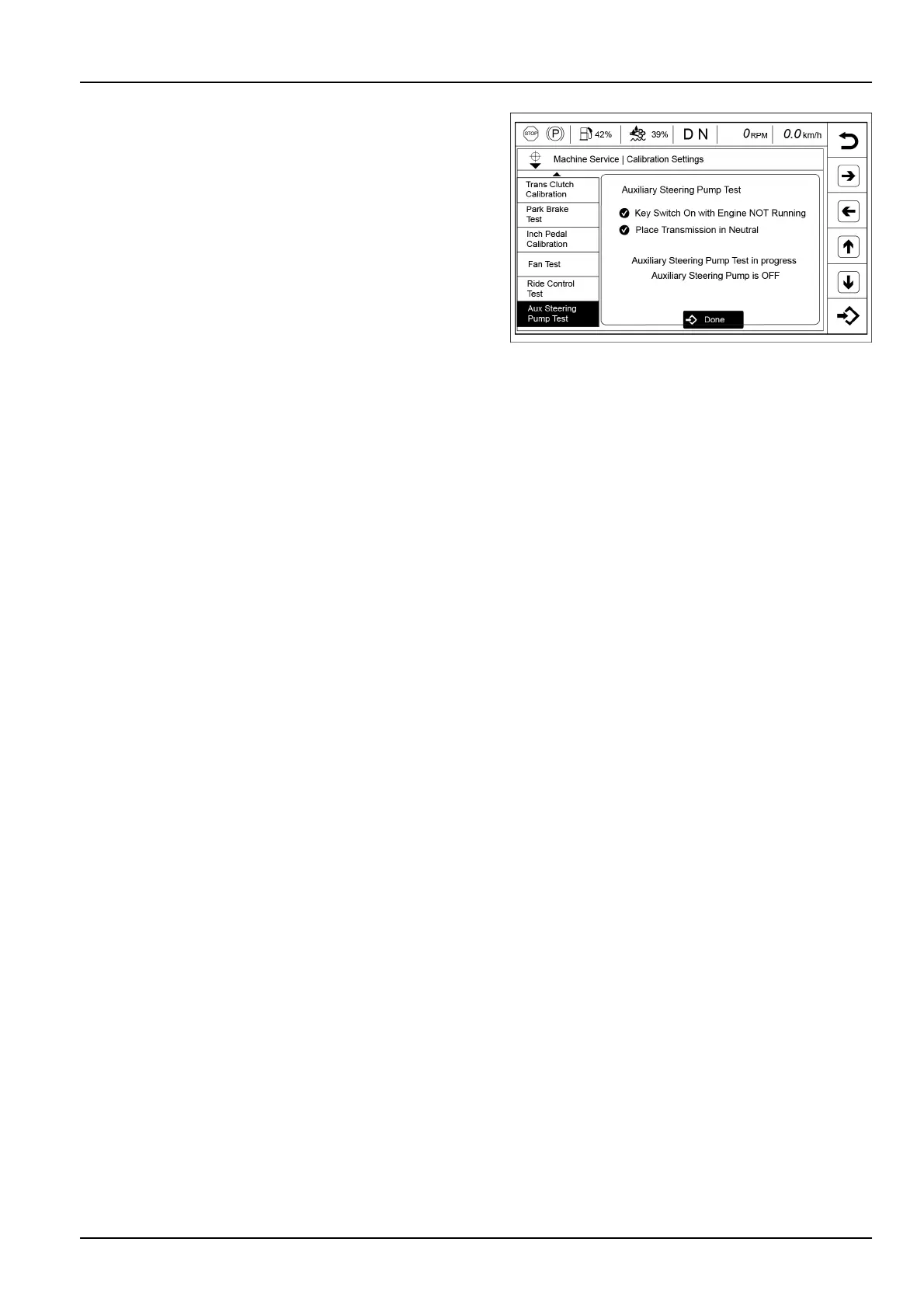

8.Whenthetestterminates,amessageonthescreen

describesthestateoftheauxiliarysteeringsystem.

9.Ifneeded,servicetheauxiliarysteeringsystem(see

proceduresinServiceManual–section“Auxiliary

steering”).

10.Usethekeypadontheright-handofthedisplayto

select“Done”andterminatethetest.

LEIL16WHL0878AA4

7-137
