7-MAINTENANCE

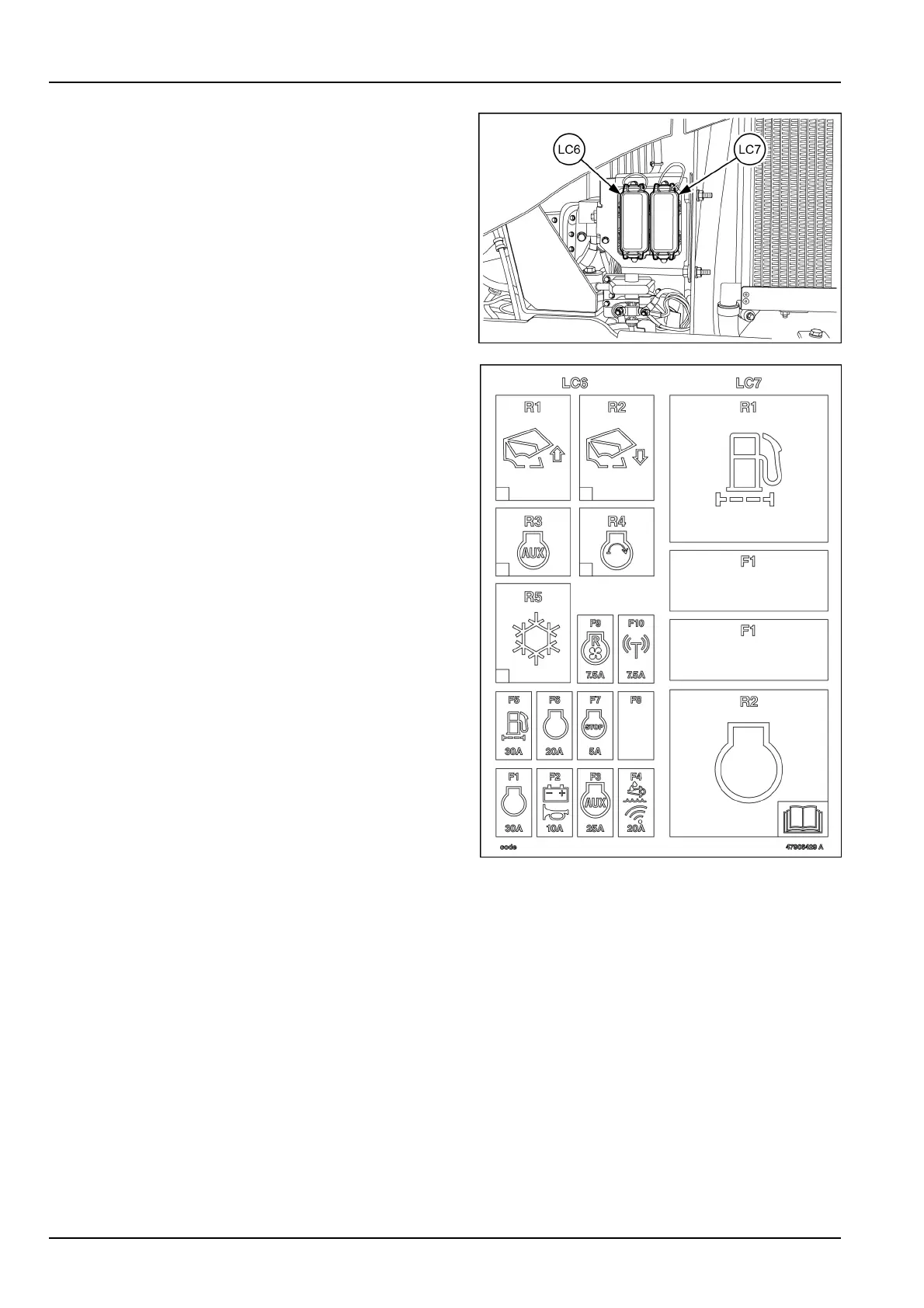

1.AdditionalfusesandrelayslocatedinLoadCenters

(LC6)and(LC7)areplacedintheenginecompartment

area,asindicatedbythedecal.

NOTICE:neverreplaceafusewithafuseofadifferent

amperage.

LEIL15WHL0569AB4

479064295

7-152
