2-SAFETYINFORMATION

LEIL16WHL0991AA7

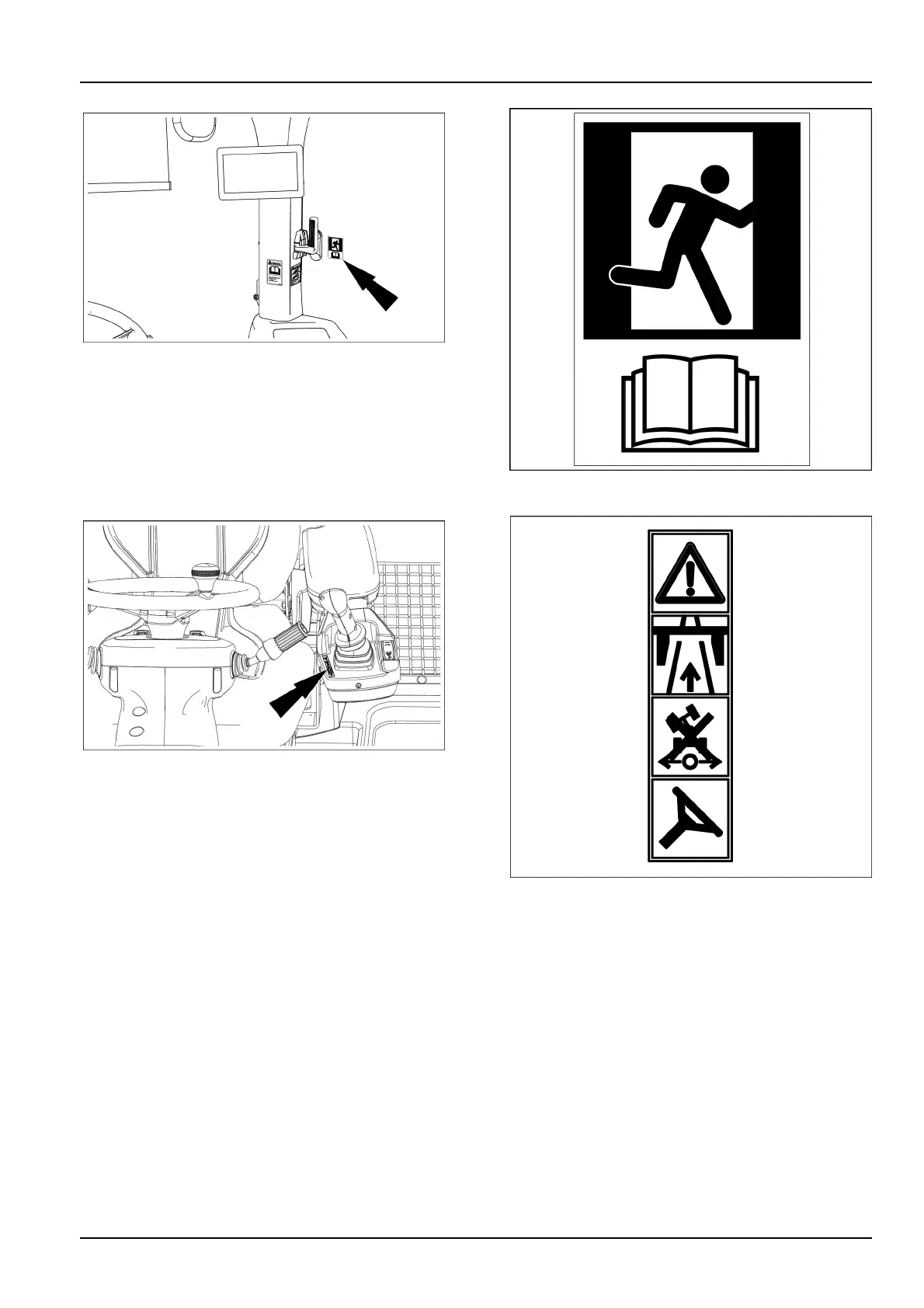

Location:right-handoperator'scompartmentwindow.

Thissafetysignindicatesthatthewindowisthe

emergencyexit.

NorthAmericanandISOdecalnumber:329051A1

329051A18

LEIL17WHL1617AB9

Onlyformachineequippedwithjoysticksteering.

Location:left-handarmrest.

WARNING

Drivinghazard!

Donotusejoysticksteeringwhentravelingonroad.

Failuretocomplywiththiswarningcouldresultindeath

orseriousinjury.

NorthAmericandecalnumber:48088662

4808866210

2-25
