2-SAFETYINFORMATION

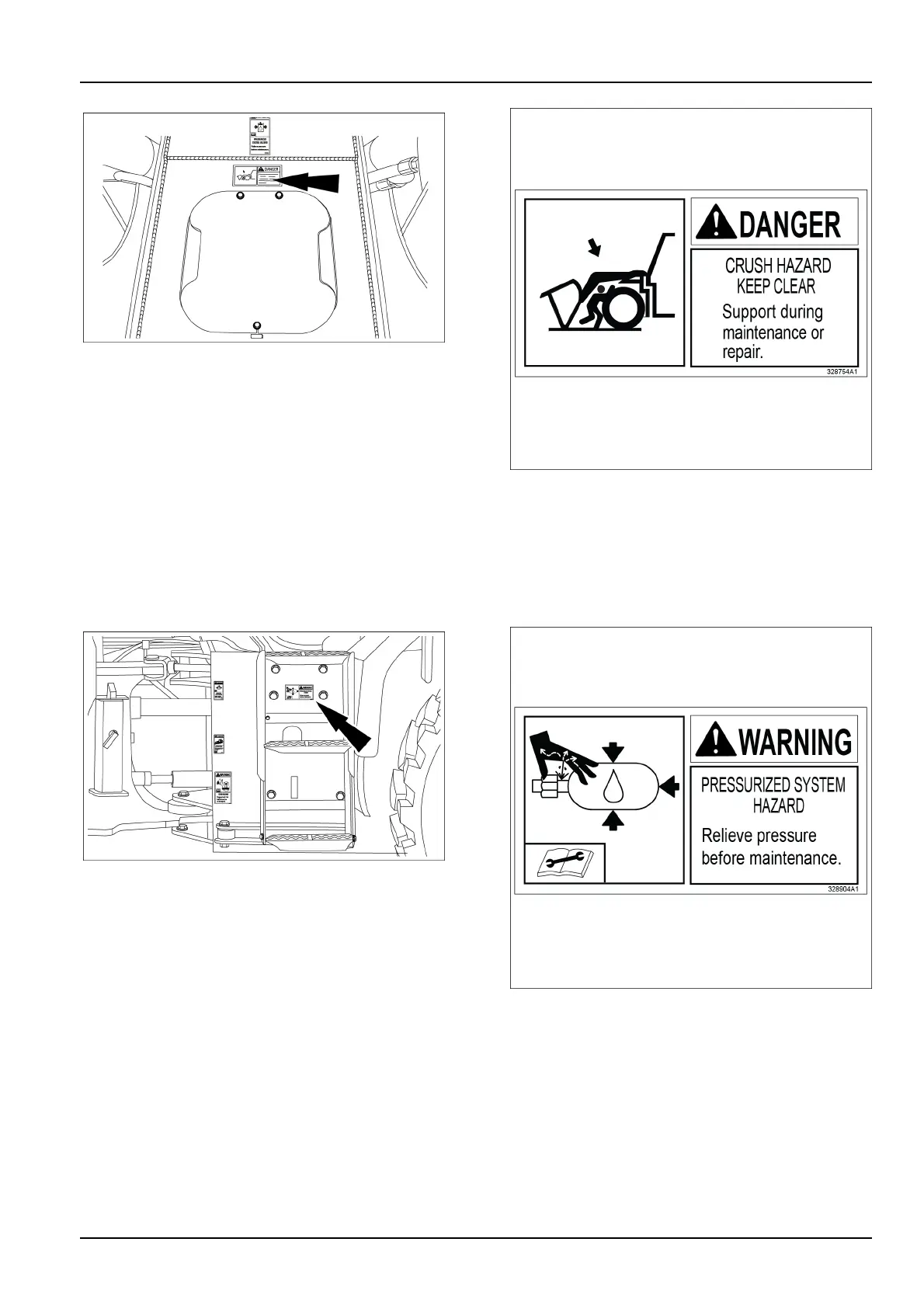

LEIL16WHL0054AA47

Onlyfor621G.

Location:frontofthemachine,underthebucketcontrol

cylinder.

DANGER

Crushhazard!Keepclear!

Supportduringmaintenanceorrepair.

Failuretocomplywillresultindeathorseriousinjury.

NorthAmericandecalnumber:328754A1

FrenchCanadiandecalnumber:334678A1

Spanishdecalnumber:334677A1

328754A1_48

LEIL16WHL0993AA49

Onlyfor721G.

Location:ontheleft-handsideofthemachine.

WARNING

Pressurizedsystemhazard!

Relievepressurebeforemaintenance.

Failuretocomplywiththiswarningcouldresultindeath

orseriousinjury.

NorthAmericandecalnumber:328904A1

FrenchCanadiandecalnumber:334012A1

Spanishdecalnumber:334015A1

328904A1_50

2-35
