2-SAFETYINFORMATION

RCPH10WHL099BAL55

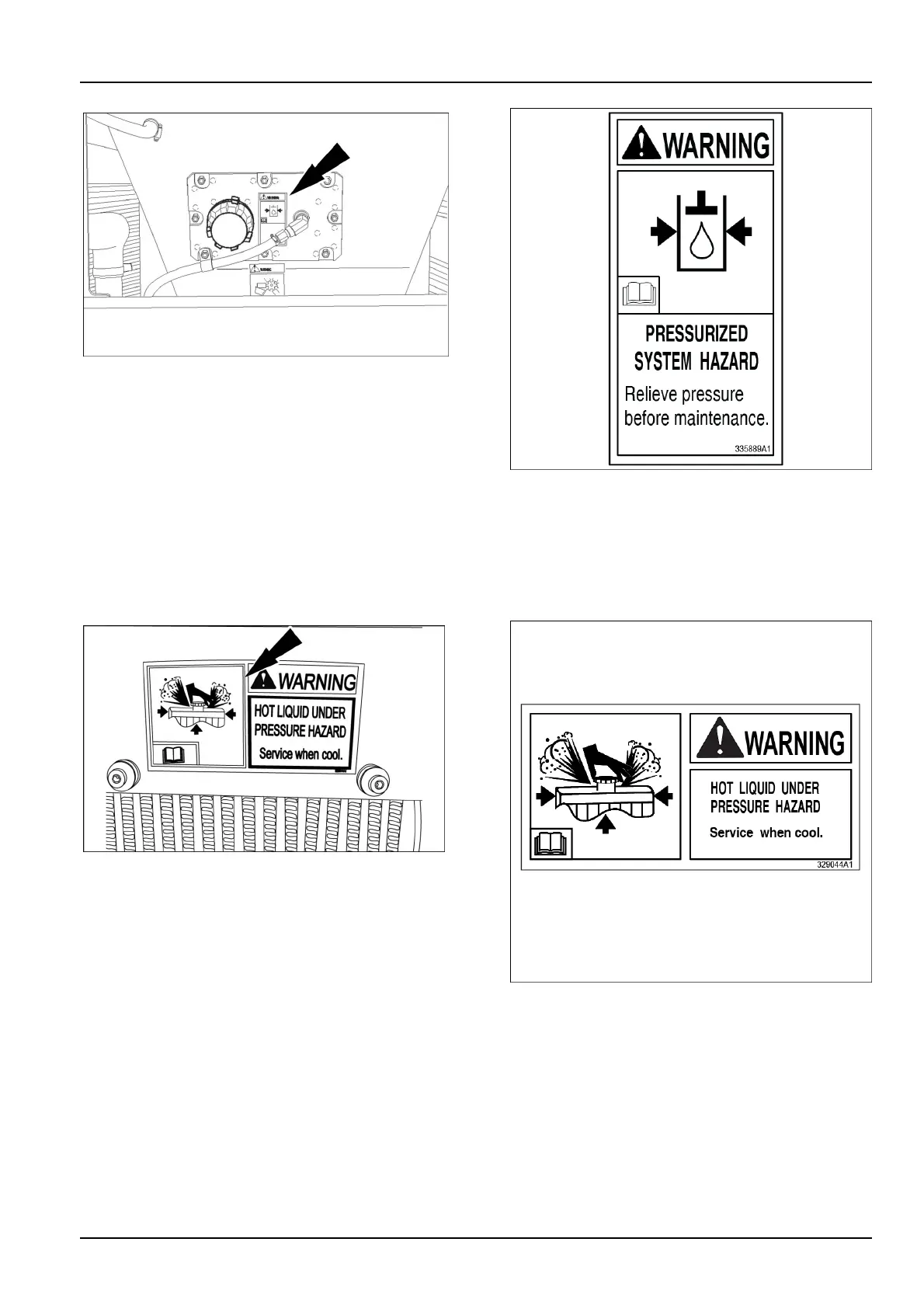

Location:accesscompartmentonthetopofthe

machine,behindthecab.

WARNING

Pressurizedsystemhazard!

Releasepressurebeforemaintenance.

Failuretocomplywiththiswarningcouldresultindeath

orseriousinjury.

NorthAmericandecalnumber:335889A1

FrenchCanadiandecalnumber:336010A1

Spanishdecalnumber:336011A1

335889A1_156

RCPH10WHL101AAH57

Location:accesscompartmentonthetopofthe

machine,behindthecab.

WARNING

Hotliquidunderpressurehazard!

Servicewhencool.

Failuretocomplywiththiswarningcouldresultindeath

orseriousinjury.

NorthAmericandecalnumber:329044A1

FrenchCanadiandecalnumber:334663A1

Spanishdecalnumber:334664A1

329044A1_158

2-37
